F115TR-2009
Section 29: REPAIR KIT 2 (v2)
Engine sections in this catalog
TOP COWLING
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
CYLINDER & CRANKCASE 1
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE 1
INTAKE 2
FUEL INJECTION NOZZLE
FUEL INJECTION PUMP

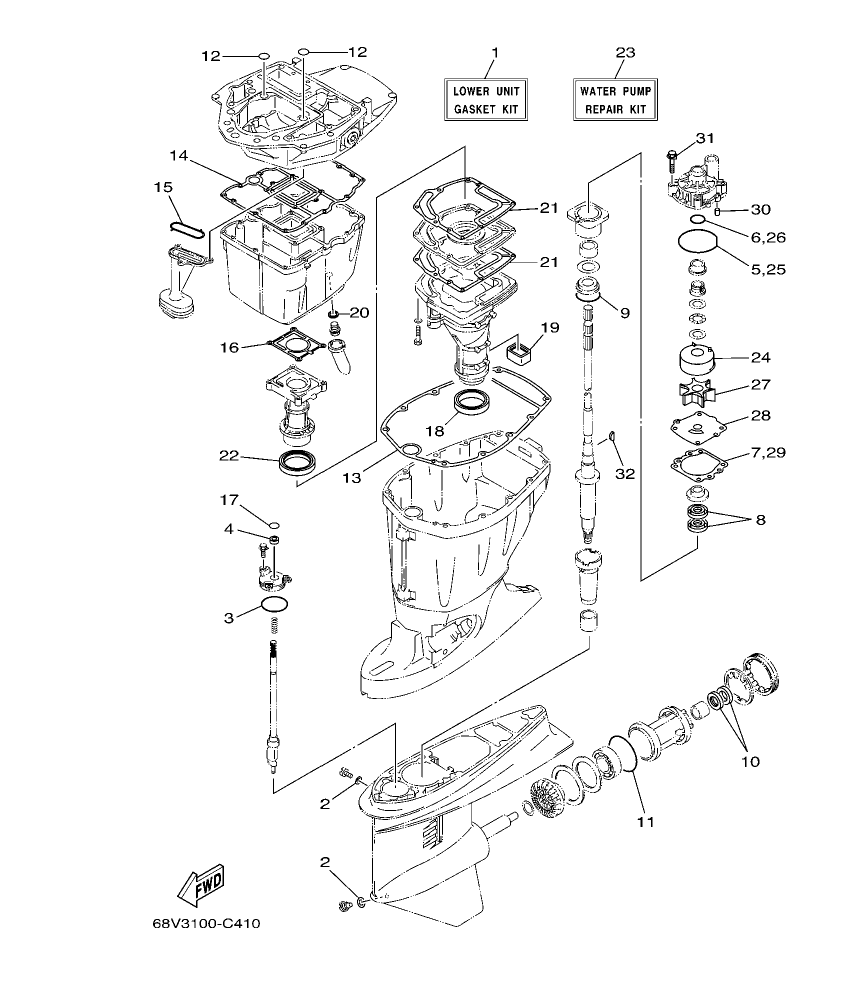

Diagram for section 29: REPAIR KIT 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 2 |
68V-44323-00
.OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 2 |
68V-W0001-21
LOWER UNIT GASKET KIT
|
1 | Ask on WhatsApp |
| 3 |
6E5-44315-A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 3 |
90430-08020
.GASKET
|
2 | Ask on WhatsApp |
| 4 |
93210-58144
.O-RING
|
1 | Ask on WhatsApp |
| 4 |
93606-12019
.PIN, DOWEL
|
2 |
Price:
6.70 AED
In stock
(378 pcs)
|
| 5 |
90119-08M14
.BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 5 |
93106-09014
.OIL SEAL
|
1 |
Price:
8.19 AED
In stock
(2 pcs)
|
| 6 |
90280-04M05
.KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 6 |
93210-86M38
.O-RING
|
1 | Ask on WhatsApp |
| 7 |
93210-37160
.O-RING
|
1 | Ask on WhatsApp |
| 8 |
6E5-44315-A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 9 |
93101-28M16
.OIL SEAL
|
2 | Ask on WhatsApp |
| 10 |
93210-55M14
.O-RING
|
1 | Ask on WhatsApp |
| 11 |
93101-30M17
.OIL SEAL
|
2 | Ask on WhatsApp |
| 12 |
93210-86M39
.O-RING
|
1 | Ask on WhatsApp |
| 13 |
93210-19MJ1
.O-RING
|
2 | Ask on WhatsApp |
| 14 |
67F-45113-00
.GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 15 |
68V-15312-00
.GASKET, OIL PAN
|
1 | Ask on WhatsApp |
| 16 |
67F-13415-00
.SEAL, OIL STRAINER
|
1 | Ask on WhatsApp |
| 17 |
67F-41133-A1
.GASKET, EXHAUST MANIFOLD 1
|
1 | Ask on WhatsApp |
| 18 |
93210-09165
.O-RING
|
1 | Ask on WhatsApp |
| 19 |
68V-45123-00
.GASKET, MUFFLER
|
1 | Ask on WhatsApp |
| 20 |
67F-45127-00
.SEAL
|
1 | Ask on WhatsApp |
| 21 |
90430-14M09
.GASKET
|
1 | Ask on WhatsApp |
| 22 |
67F-41134-A0
.GASKET, EXHAUST MANIFOLD
|
2 | Ask on WhatsApp |
| 23 |
67F-41138-00
.SEAL, EXT. 1
|
1 | Ask on WhatsApp |
| 24 |
68V-W0078-00
WATER PUMP REPAIR KIT
|
1 | Ask on WhatsApp |
| 25 |
61A-44322-02
.INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 26 |
93210-86M38
.O-RING
|
1 | Ask on WhatsApp |
| 27 |
93210-37160
.O-RING
|
1 | Ask on WhatsApp |
| 28 |
6E5-44352-01
.IMPELLER
|
1 | Ask on WhatsApp |
