F115TR-2009 – section 12 GENERATOR parts diagram

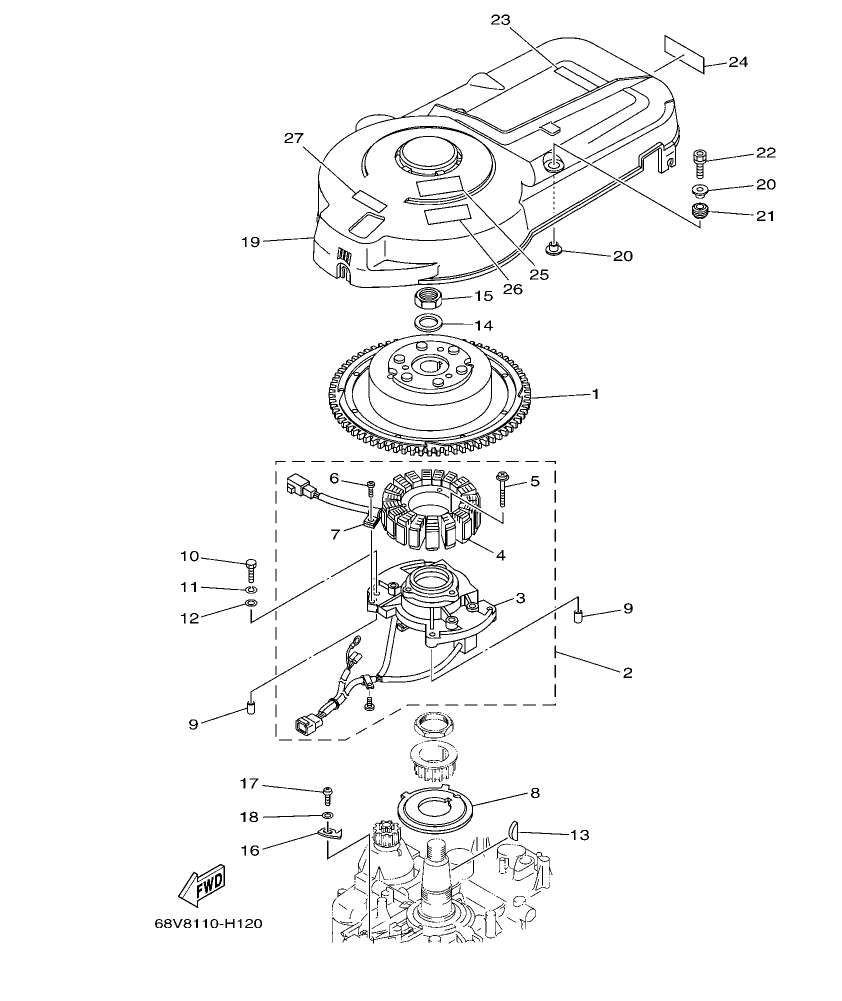

Diagram for section 12: GENERATOR.

Ref Part No. Qty Buy
2
68V-81450-00
ROTOR ASSY
 1 Ask on WhatsApp
3
68V-81460-00
BASE ASSY
 1 Ask on WhatsApp
4
68V-85580-00
.COIL, PULSER
 1 Ask on WhatsApp
5
68V-81410-00
.STATOR ASSY
 1 Ask on WhatsApp
6
63D-81345-20
.SCREW, WITH WASHER (M6X30)
 3 Ask on WhatsApp
7
97607-04110
.SCREW,WITH WASHER
 1 Ask on WhatsApp
8
445-81328-20
.CLAMP
 1 Ask on WhatsApp
9
68V-81673-00
ROTOR
 1 Ask on WhatsApp
10
99530-08012
PIN, DOWEL
 2
Price: 3.72 AED
In stock (40 pcs)
11
97095-06030
BOLT
 4 Ask on WhatsApp
12
92995-06100
WASHER, SPRING
 4
Price: 2.98 AED
In stock (8 pcs)
13
92995-06600
WASHER
 4 Ask on WhatsApp
14
90280-04M08
KEY, WOODRUFF
 1 Ask on WhatsApp
15
90201-24014
WASHER, PLATE
 1
Price: 27.56 AED
In stock (3 pcs)
16
90179-24002
NUT
 1 Ask on WhatsApp
17
6D8-81332-00
PLATE, TIMING
 1 Ask on WhatsApp
18
97885-06010
SCREW, PAN HEAD
 1 Ask on WhatsApp
19
92995-06600
WASHER
 1 Ask on WhatsApp
20
67F-81337-01
COVER, FLYWHEEL
 1 Ask on WhatsApp
21
90387-06M71
COLLAR
 4 Ask on WhatsApp
22
90480-15M31
GROMMET
 2 Ask on WhatsApp
23
90119-06M92
BOLT, WITH WASHER
 2 Ask on WhatsApp
24
67F-12138-40
MARK, CAUTION
 1 Ask on WhatsApp
25
68V-13437-41
MARK, CAUTION
 1 Ask on WhatsApp
26
6AH-81995-40
LABEL, WARNING
 1 Ask on WhatsApp
27
6AH-81994-40
LABEL, SAFETY
 1 Ask on WhatsApp
28
6AG-81996-00
MARK
 1 Ask on WhatsApp
