F115TR-2009

Section 8: FUEL INJECTION NOZZLE (v2)

Engine sections in this catalog
TOP COWLING FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 CYLINDER & CRANKCASE 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 FUEL INJECTION NOZZLE FUEL INJECTION PUMP

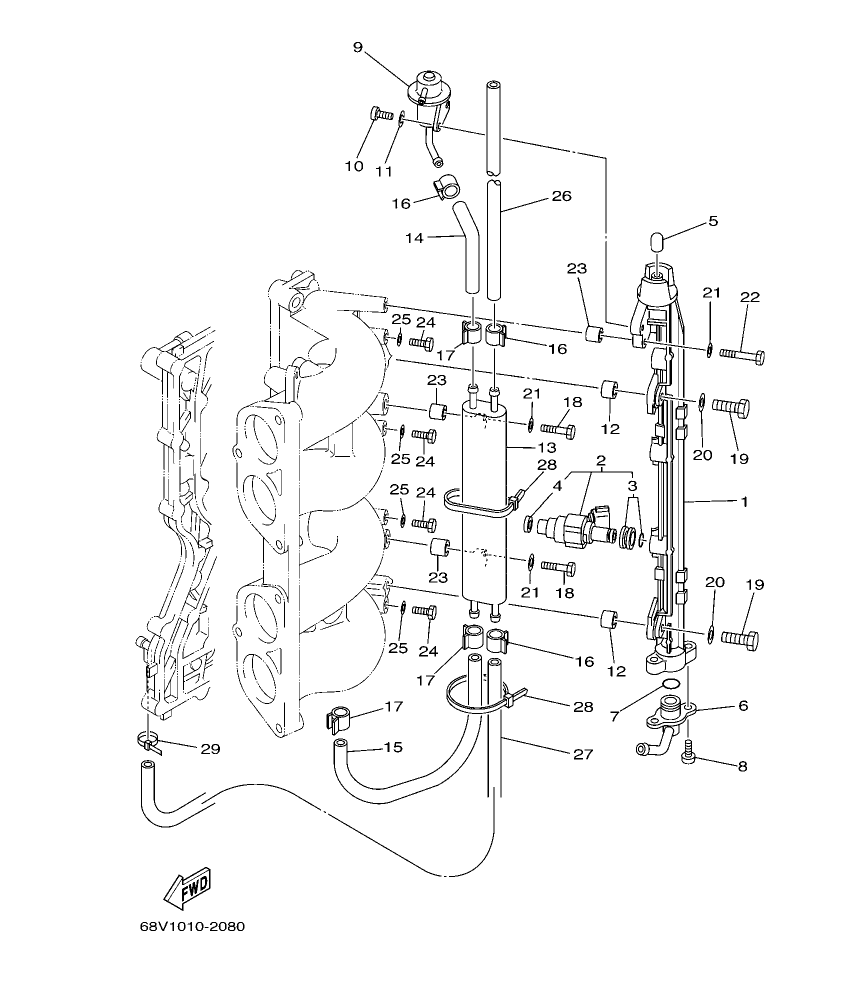

F115TR-2009 – section 8 FUEL INJECTION NOZZLE parts diagram

Diagram for section 8: FUEL INJECTION NOZZLE.

Ref Part No. Qty Buy
2
68V-13160-00
DELIVERY PIPE ASSY 1
 1 Ask on WhatsApp
3
68V-8A360-00
INJECTOR UNIT
 4 Ask on WhatsApp
4
68V-1410B-00
.PACKING KIT
 1 Ask on WhatsApp
5
68V-13766-00
.RUBBER, INJECTOR
 1 Ask on WhatsApp
6
68V-14225-00
CAP
 1 Ask on WhatsApp
7
68V-13435-00
NIPPLE
 1 Ask on WhatsApp
8
68V-14397-00
O-RING
 1 Ask on WhatsApp
9
68V-81147-00
SCREW 3
 2 Ask on WhatsApp
10
68V-13906-01
REGULATOR, PRESSURE
 1 Ask on WhatsApp
11
68V-14565-00
SCREW
 2 Ask on WhatsApp
12
68V-14356-00
WASHER, SPRING
 2 Ask on WhatsApp
13
68V-14264-00
COLLAR
 2 Ask on WhatsApp
14
69J-21841-02
COOLER
 1 Ask on WhatsApp
15
68V-13971-00
PIPE, FUEL 1
 1 Ask on WhatsApp
16
68V-13972-00
PIPE, FUEL 2
 1 Ask on WhatsApp
17
68V-24519-00
CLIP
 3 Ask on WhatsApp
18
68V-2411M-00
CLIP
 3 Ask on WhatsApp
19
68V-14777-00
BOLT
 2 Ask on WhatsApp
20
68V-14428-00
BOLT
 2 Ask on WhatsApp
21
68V-14475-00
WASHER
 2 Ask on WhatsApp
22
68V-14357-00
WASHER, PLAIN
 3 Ask on WhatsApp
23
68V-14446-00
BOLT
 1 Ask on WhatsApp
24
68V-14265-00
COLLAR
 3 Ask on WhatsApp
25
97095-06010
BOLT
 4 Ask on WhatsApp
26
90430-06014
GASKET
 4
Price: 3.72 AED
In stock (5 pcs)
27
68V-2247A-10
HOSE 1
 1 Ask on WhatsApp
28
68V-2247B-00
HOSE 2
 1 Ask on WhatsApp
28
68V-2481H-00
CLAMP
 2 Ask on WhatsApp
28
90465-11M10
CLAMP
 1 Ask on WhatsApp
