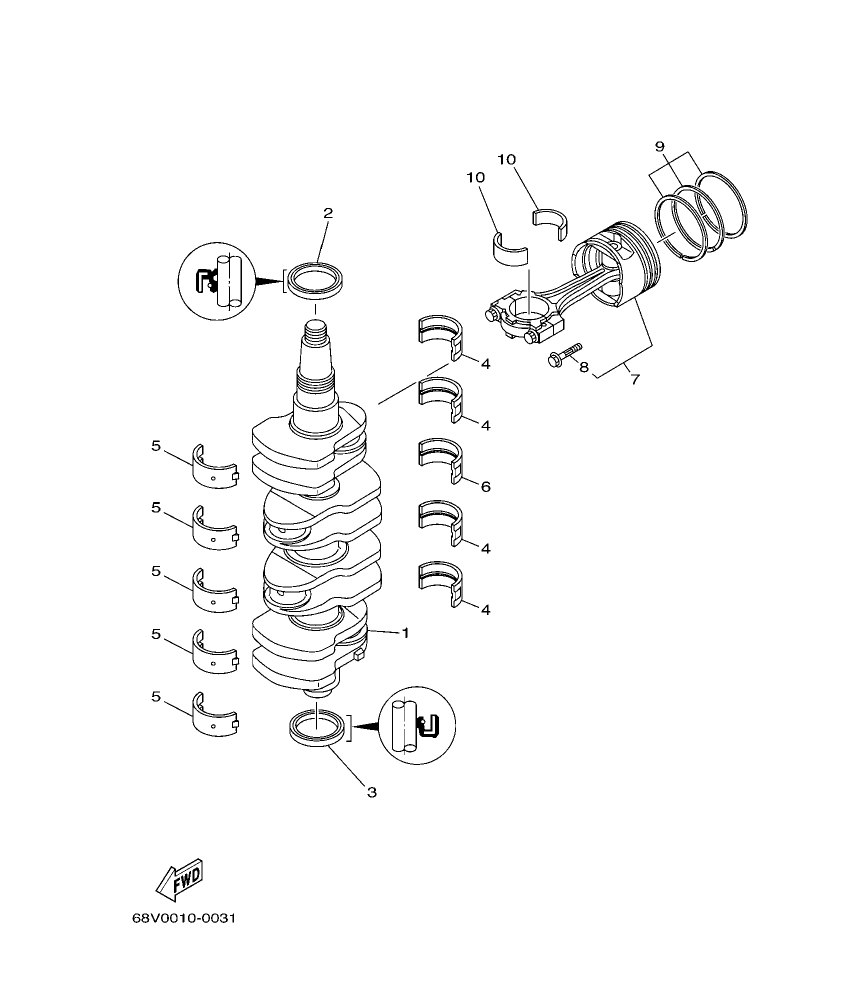

F115TR-2009 – section 3 CRANKSHAFT & PISTON parts diagram

Diagram for section 3: CRANKSHAFT & PISTON.

Ref Part No. Qty Buy
2
68V-11411-00
CRANKSHAFT
 1 Ask on WhatsApp
3
93102-48009
OIL SEAL
 1
Price: 59.59 AED
In stock (15 pcs)
4
93101-48002
OIL SEAL
 1
Price: 61.83 AED
In stock (4 pcs)
5
67F-11416-00
PLANE BEARING, CRANKSHAFT 1
 4 Ask on WhatsApp
6
67F-11416-10
PLANE BEARING, CRANKSHAFT 1
 4 Ask on WhatsApp
7
67F-11416-20
PLANE BEARING, CRANKSHAFT 1
 4 Ask on WhatsApp
8
67F-11417-00
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
9
67F-11417-10
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
10
67F-11417-20
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
11
67F-11417-30
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
12
67F-11418-00
PLANE BEARING, CRANKSHAFT 3
 1 Ask on WhatsApp
13
67F-11418-10
PLANE BEARING, CRANKSHAFT 3
 1 Ask on WhatsApp
14
67F-11418-20
PLANE BEARING, CRANKSHAFT 3
 1 Ask on WhatsApp
15
68V-W1164-01
PISTON/CON-ROD ASSY(STD)
 4 Ask on WhatsApp
16
68V-W1164-11
PISTON/CON-ROD ASSY(0.25MM OS)
 4 Ask on WhatsApp
17
K1C-A3275-00
.BOLT, CONNECTING ROD
 2 Ask on WhatsApp
18
6D8-11603-01
PISTON RING SET (STD)
 4 Ask on WhatsApp
19
6D8-11604-01
PISTON RING SET (0.25MM O/S)
 4 Ask on WhatsApp
20
68V-11656-00
PLANE BEARING, CONNECTING ROD
 8 Ask on WhatsApp
21
68V-11656-10
PLANE BEARING, CONNECTING ROD
 8 Ask on WhatsApp
22
68V-11656-20
PLANE BEARING, CONNECTING ROD
 8 Ask on WhatsApp
23
68V-11656-30
PLANE BEARING, CONNECTING ROD
 8 Ask on WhatsApp
