90A’04

Choose a section to open the exploded parts diagram with live pricing. (v2)

Engine sections in this model
TOP COWLING STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY UPPER CASING LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 FUEL TANK CYLINDER & CRANKCASE STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY METER REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON INTAKE CARBURETOR OIL PUMP FUEL GENERATOR ELECTRICAL
Fig. 1 – TOP COWLING
Fig. 1 – TOP COWLING
Fig. 10 – STARTING MOTOR
Fig. 10 – STARTING MOTOR
Fig. 11 – BOTTOM COWLING
Fig. 11 – BOTTOM COWLING
Fig. 12 – CONTROL
Fig. 12 – CONTROL
Fig. 13 – BRACKET 1
Fig. 13 – BRACKET 1
Fig. 14 – BRACKET 2
Fig. 14 – BRACKET 2

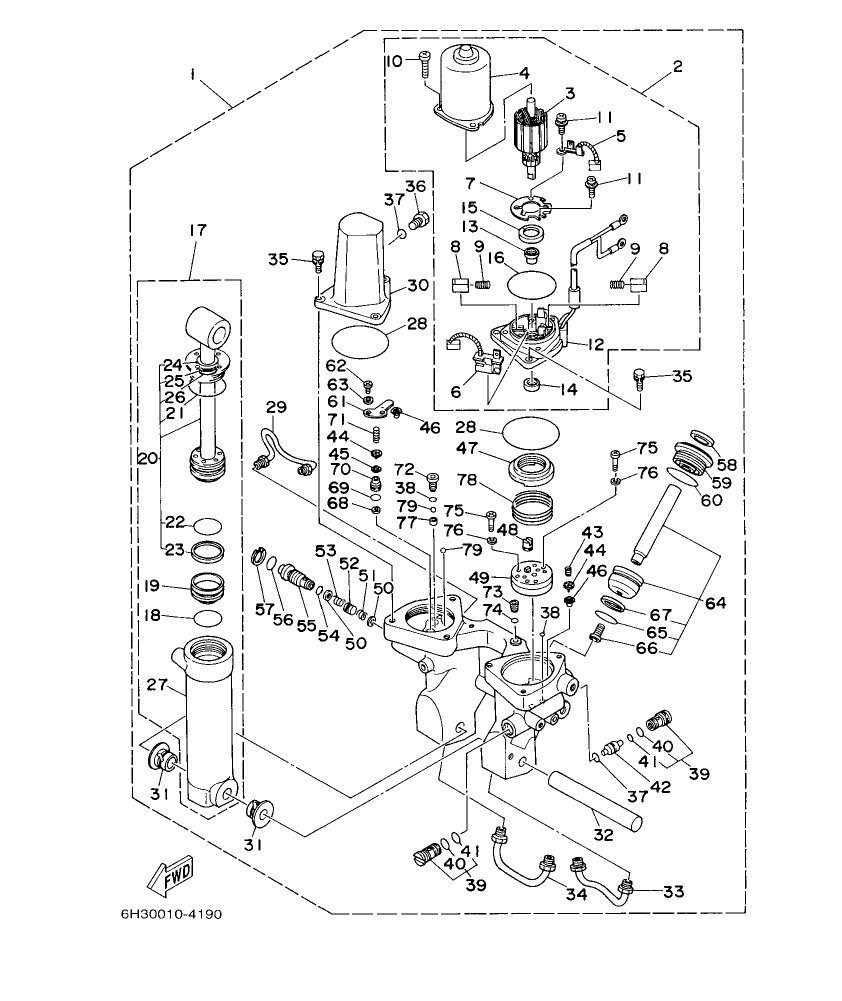

Fig. 15 – POWER TRIM & TILT ASSY
Fig. 15 – POWER TRIM & TILT ASSY

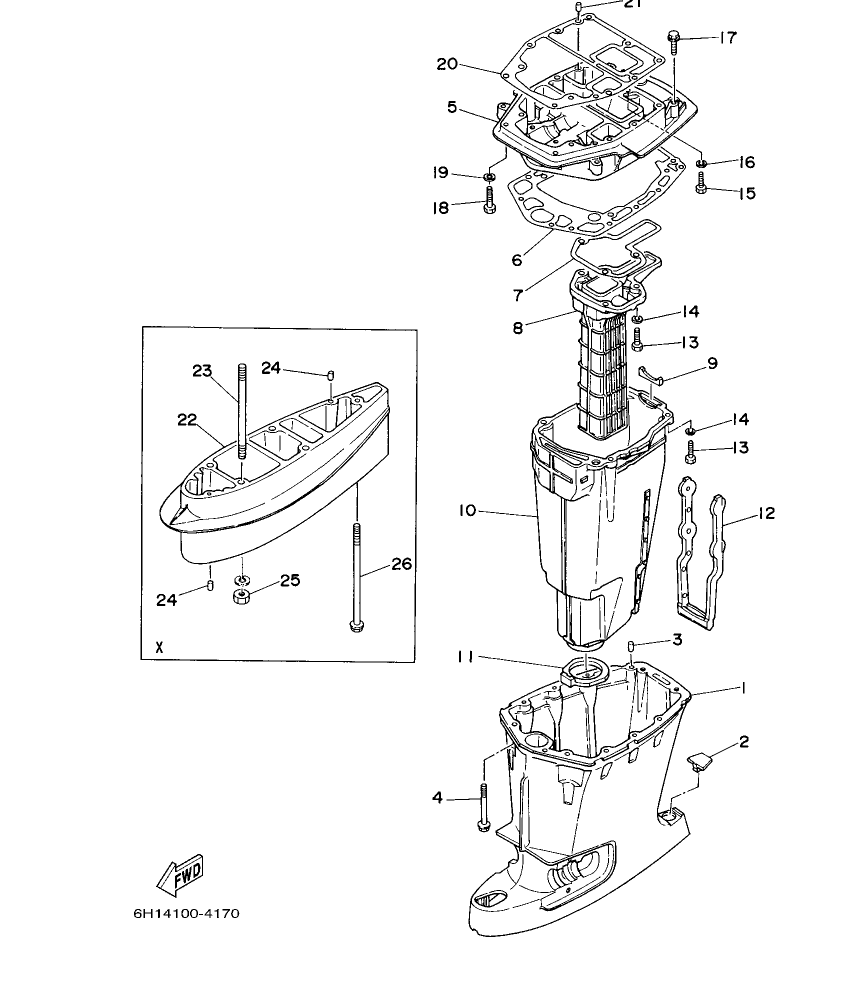

Fig. 16 – UPPER CASING
Fig. 16 – UPPER CASING
Fig. 17 – LOWER CASING & DRIVE 1
Fig. 17 – LOWER CASING & DRIVE 1
Fig. 18 – LOWER CASING & DRIVE 2
Fig. 18 – LOWER CASING & DRIVE 2

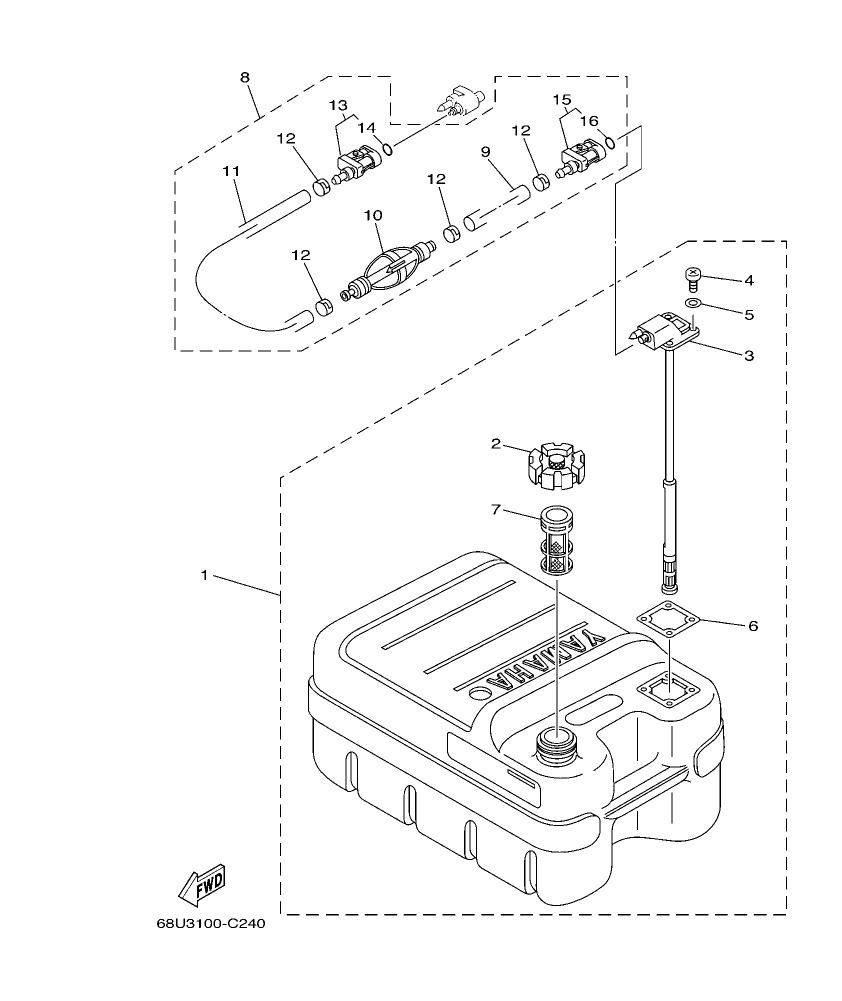

Fig. 19 – FUEL TANK
Fig. 19 – FUEL TANK

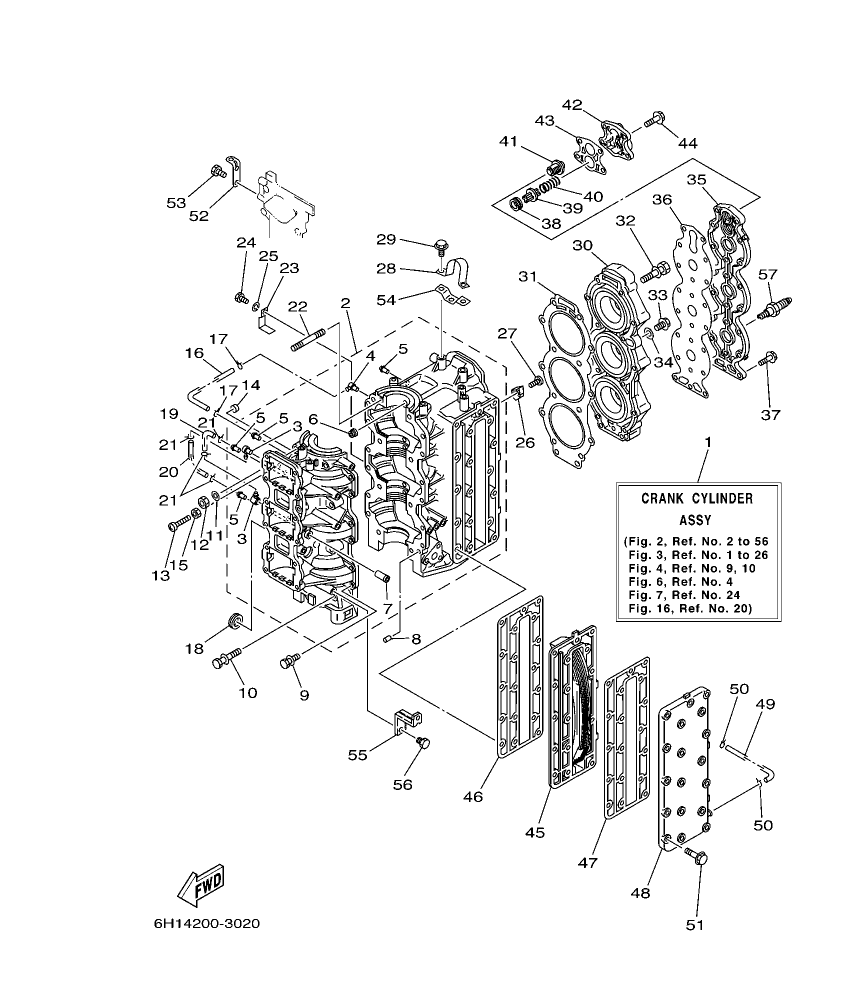

Fig. 2 – CYLINDER & CRANKCASE
Fig. 2 – CYLINDER & CRANKCASE
Fig. 20 – STEERING GUIDE
Fig. 20 – STEERING GUIDE
Fig. 21 – REMOTE CONTROL BOX
Fig. 21 – REMOTE CONTROL BOX

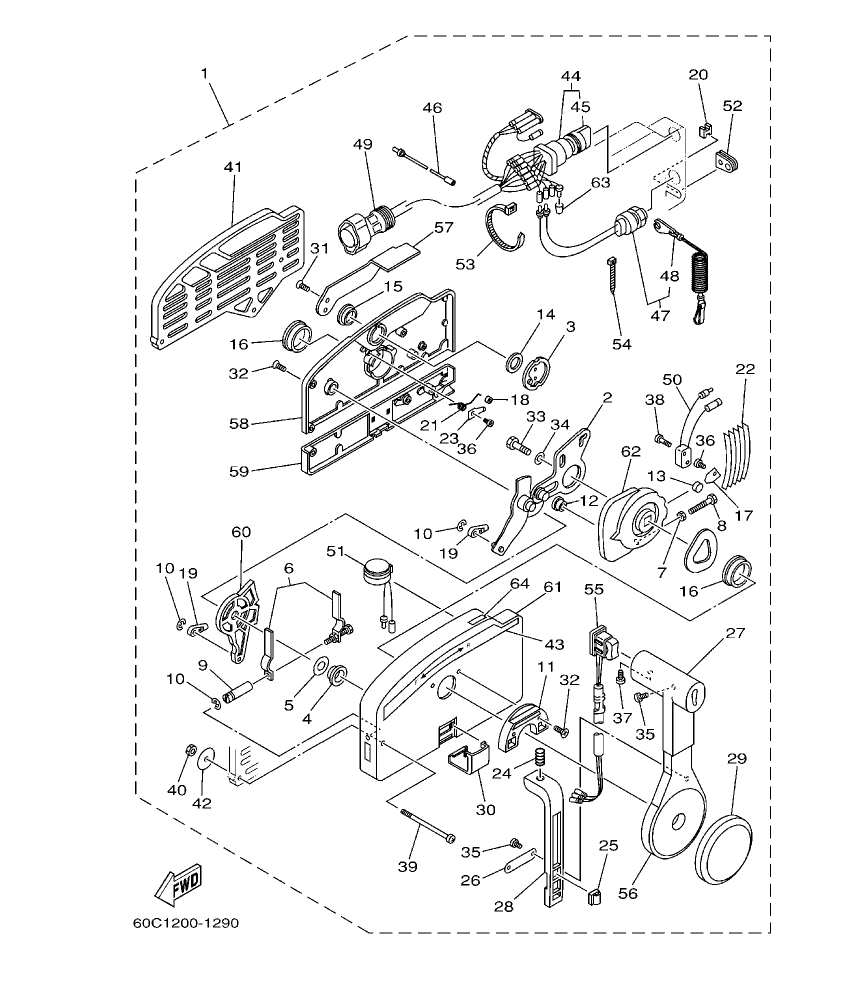

Fig. 22 – REMOTE CONTROL ASSY
Fig. 22 – REMOTE CONTROL ASSY
Fig. 23 – METER
Fig. 23 – METER
Fig. 24 – REPAIR KIT 1
Fig. 24 – REPAIR KIT 1

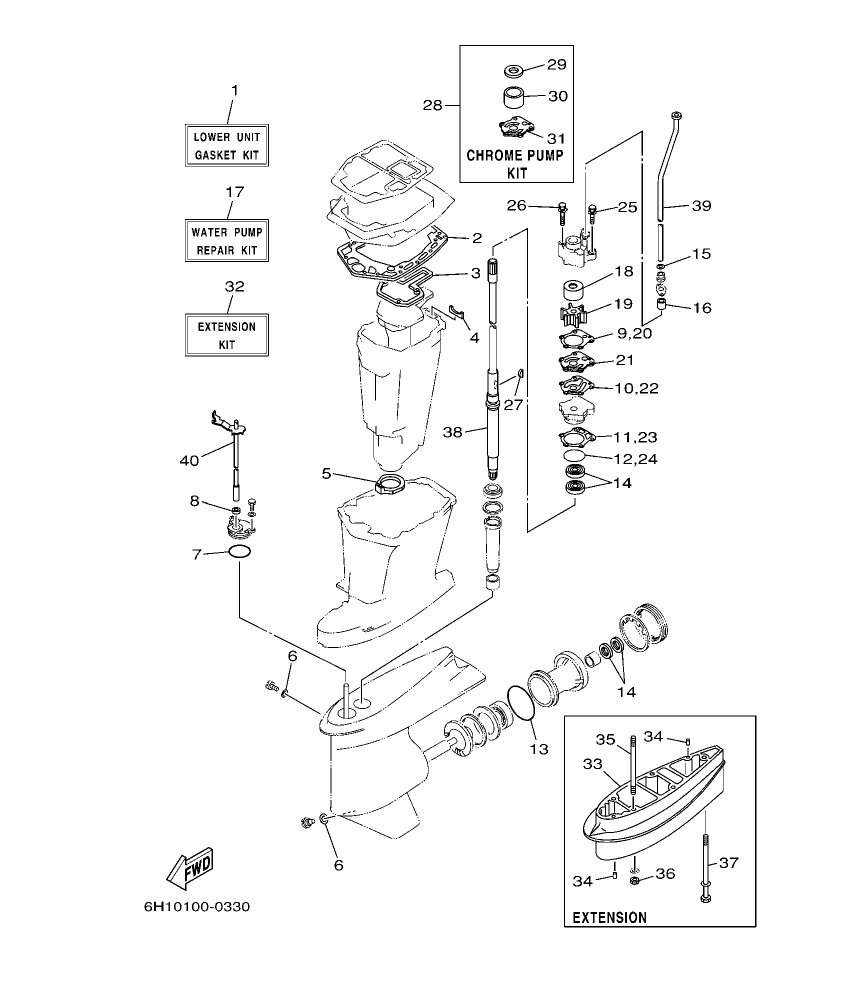

Fig. 25 – REPAIR KIT 2
Fig. 25 – REPAIR KIT 2

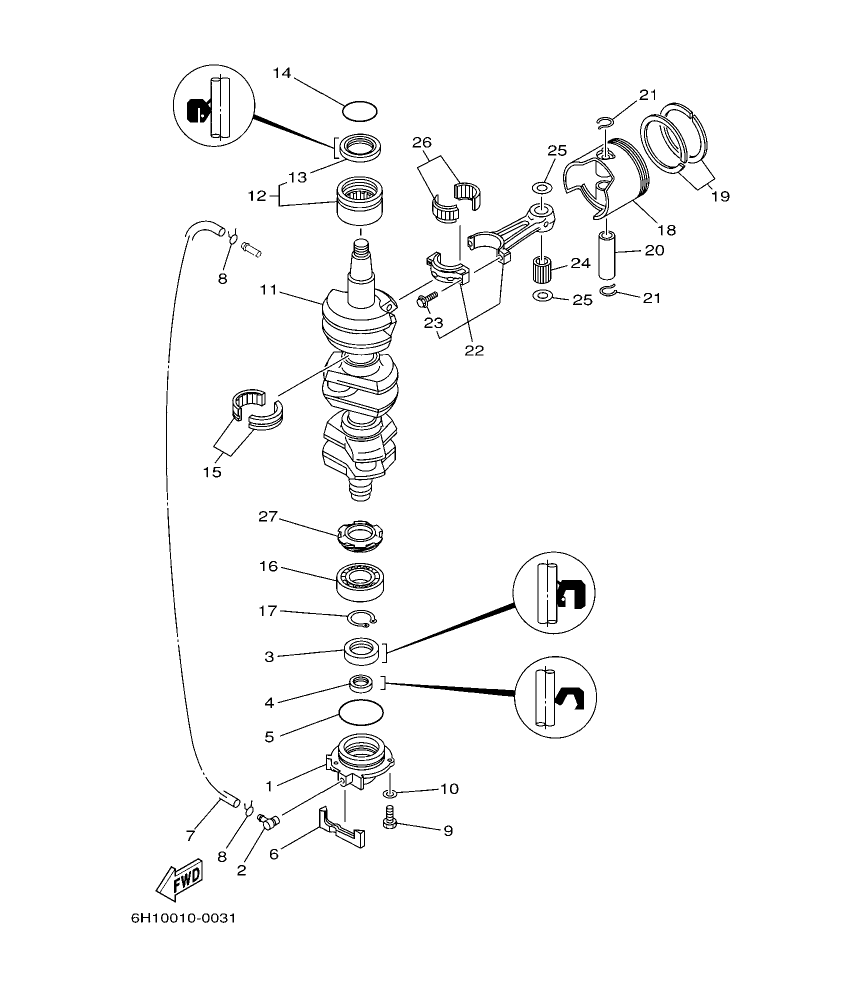

Fig. 3 – CRANKSHAFT & PISTON
Fig. 3 – CRANKSHAFT & PISTON

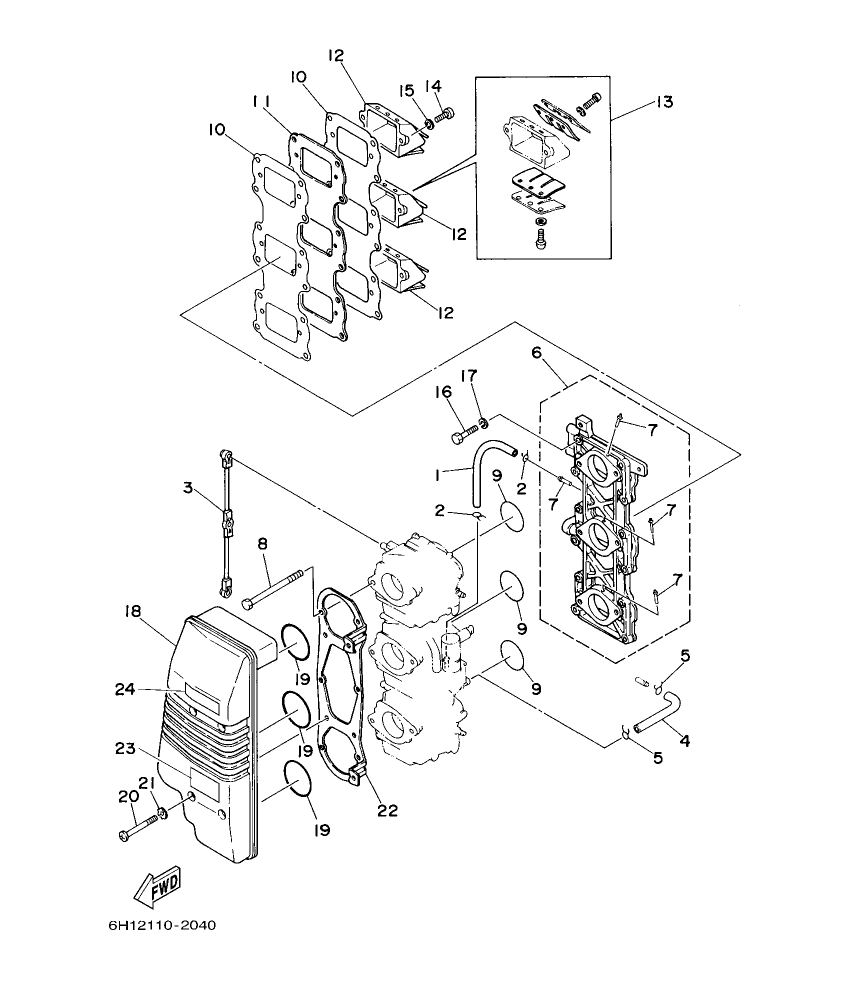

Fig. 4 – INTAKE
Fig. 4 – INTAKE
Fig. 5 – CARBURETOR
Fig. 5 – CARBURETOR
Fig. 6 – OIL PUMP
Fig. 6 – OIL PUMP
Fig. 7 – FUEL
Fig. 7 – FUEL
Fig. 8 – GENERATOR
Fig. 8 – GENERATOR
Fig. 9 – ELECTRICAL
Fig. 9 – ELECTRICAL
