Section 12: CONTROL (v2)
Engine sections in this catalog
TOP COWLING
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY
UPPER CASING
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
FUEL TANK
CYLINDER & CRANKCASE
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
METER
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT & PISTON
INTAKE
CARBURETOR
OIL PUMP
FUEL
GENERATOR
ELECTRICAL

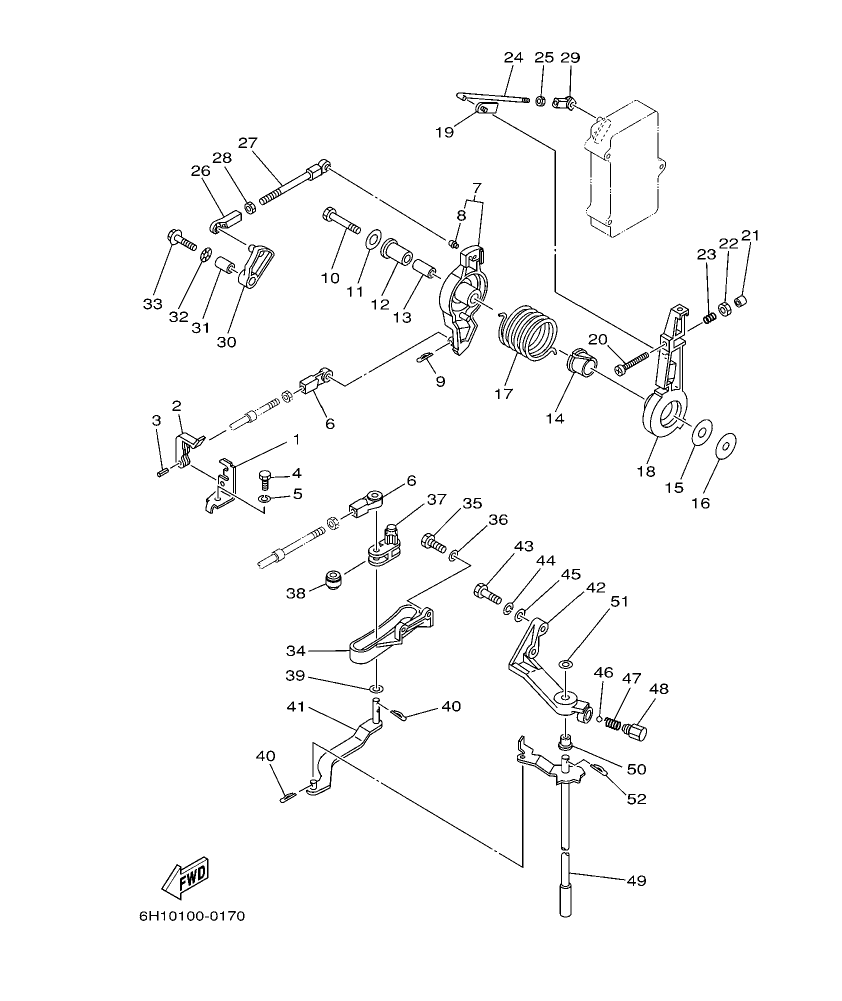

Diagram for section 12: CONTROL.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
663–48531–00
BRACKET, REMOTE CONTROL
|
1 | Ask on WhatsApp |
| 1 |
663–48531–00
BRACKET, REMOTE CONTROL
|
1 | Ask on WhatsApp |
| 2 |
663–48538–00
CLAMP, CABLE 1
|
1 | Ask on WhatsApp |
| 2 |
663–48538–00
CLAMP, CABLE 1
|
1 | Ask on WhatsApp |
| 3 |
91690–30012
PIN, SPRING
|
1 | Ask on WhatsApp |
| 3 |
91690–30012
PIN, SPRING
|
1 | Ask on WhatsApp |
| 4 |
97095–08016
BOLT
|
1 | Ask on WhatsApp |
| 4 |
97095–08016
BOLT
|
1 | Ask on WhatsApp |
| 5 |
92995–08100
WASHER
|
1 | Ask on WhatsApp |
| 5 |
92995–08100
WASHER
|
1 | Ask on WhatsApp |
| 6 |
663–48344–00
CABLE END, REMOTE CONTROL
|
2 | Ask on WhatsApp |
| 6 |
663–48344–00
CABLE END, REMOTE CONTROL
|
2 | Ask on WhatsApp |
| 7 |
688–41632–01–94
LEVER, MAGNETO CONTROL
|
1 | Ask on WhatsApp |
| 7 |
688–41632–01–94
LEVER, MAGNETO CONTROL
|
1 | Ask on WhatsApp |
| 8 |
662–41214–01
.JOINT 1
|
1 | Ask on WhatsApp |
| 8 |
662–41214–01
.JOINT 1
|
1 | Ask on WhatsApp |
| 9 |
90468–18008
CLIP
|
1 | Ask on WhatsApp |
| 9 |
90468–18008
CLIP
|
1 | Ask on WhatsApp |
| 10 |
97095–08045
BOLT
|
1 | Ask on WhatsApp |
| 10 |
97095–08045
BOLT
|
1 | Ask on WhatsApp |
| 11 |
90201–08M23
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 11 |
90201–08M23
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 12 |
90386–12089
BUSH
|
1 | Ask on WhatsApp |
| 12 |
90386–12089
BUSH
|
1 | Ask on WhatsApp |
| 13 |
90387–08M16
COLLAR
|
1 | Ask on WhatsApp |
| 13 |
90387–08M16
COLLAR
|
1 | Ask on WhatsApp |
| 14 |
90386–22M13
BUSH
|
1 | Ask on WhatsApp |
| 14 |
90386–22M13
BUSH
|
1 | Ask on WhatsApp |
| 15 |
90202–12092
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 15 |
90202–12092
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 16 |
90201–08M13
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 16 |
90201–08M13
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 17 |
90508–29M05
SPRING, TORSION
|
1 | Ask on WhatsApp |
| 17 |
90508–29M05
SPRING, TORSION
|
1 | Ask on WhatsApp |
| 18 |
688–41631–01–94
LEVER, MAGNETO CONTROL
|
1 | Ask on WhatsApp |
| 18 |
688–41631–01–94
LEVER, MAGNETO CONTROL
|
1 | Ask on WhatsApp |
| 19 |
6F5–41237–00
JOINT, LINK
|
1 | Ask on WhatsApp |
| 19 |
6F5–41237–00
JOINT, LINK
|
1 | Ask on WhatsApp |
| 20 |
90157–06013
SCREW, PAN HEAD
|
1 | Ask on WhatsApp |
| 20 |
90157–06013
SCREW, PAN HEAD
|
1 | Ask on WhatsApp |
| 21 |
688–44194–00
CAP
|
1 | Ask on WhatsApp |
| 21 |
688–44194–00
CAP
|
1 | Ask on WhatsApp |
| 22 |
95303–06600
NUT
|
1 | Ask on WhatsApp |
| 22 |
95303–06600
NUT
|
1 | Ask on WhatsApp |
| 23 |
90501–16M12
SPRING, COMPRESSION
|
1 | Ask on WhatsApp |
| 23 |
90501–16M12
SPRING, COMPRESSION
|
1 | Ask on WhatsApp |
| 24 |
6H1–41636–00
ROD, MAGNETO CONTROL
|
1 | Ask on WhatsApp |
| 24 |
6H1–41636–00
ROD, MAGNETO CONTROL
|
1 | Ask on WhatsApp |
| 25 |
95380–05600
NUT
|
1 | Ask on WhatsApp |
| 25 |
95380–05600
NUT
|
1 | Ask on WhatsApp |
| 26 |
662–41237–01
JOINT, LINK
|
1 | Ask on WhatsApp |
| 26 |
662–41237–01
JOINT, LINK
|
1 | Ask on WhatsApp |
| 27 |
688–41211–01
LINK, ACCEL.
|
1 | Ask on WhatsApp |
| 27 |
688–41211–01
LINK, ACCEL.
|
1 | Ask on WhatsApp |
| 28 |
95380–05600
|
1 | Ask on WhatsApp |
| 28 |
95380–05600
|
1 | Ask on WhatsApp |
| 29 |
682–41237–00
|
1 | Ask on WhatsApp |
| 29 |
682–41237–00
|
1 | Ask on WhatsApp |
| 30 |
6H1–41213–00
|
1 | Ask on WhatsApp |
| 30 |
6H1–41213–00
|
1 | Ask on WhatsApp |
| 31 |
90387–06M17
|
1 | Ask on WhatsApp |
| 31 |
90387–06M17
|
1 | Ask on WhatsApp |
| 32 |
90206–10M04
|
1 | Ask on WhatsApp |
| 32 |
90206–10M04
|
1 | Ask on WhatsApp |
| 33 |
90119–06M24
|
1 | Ask on WhatsApp |
| 33 |
90119–06M24
|
1 | Ask on WhatsApp |
| 34 |
688–44117–00–94
|
1 | Ask on WhatsApp |
| 34 |
688–44117–00–94
|
1 | Ask on WhatsApp |
| 35 |
97013–06020
|
2 | Ask on WhatsApp |
| 35 |
97013–06020
|
2 | Ask on WhatsApp |
| 36 |
92903–06600
|
2 | Ask on WhatsApp |
| 36 |
92903–06600
|
2 | Ask on WhatsApp |
| 37 |
688–44124–00
|
1 | Ask on WhatsApp |
| 37 |
688–44124–00
|
1 | Ask on WhatsApp |
| 38 |
688–44122–00
|
1 | Ask on WhatsApp |
| 38 |
688–44122–00
|
1 | Ask on WhatsApp |
| 39 |
90202–07M07
|
1 | Ask on WhatsApp |
| 39 |
90202–07M07
|
1 | Ask on WhatsApp |
| 40 |
90468–18008
|
3 | Ask on WhatsApp |
| 40 |
90468–18008
|
3 | Ask on WhatsApp |
| 41 |
6H1–44121–00
|
1 | Ask on WhatsApp |
| 41 |
6H1–44121–00
|
1 | Ask on WhatsApp |
| 42 |
688–44118–00–94
|
1 | Ask on WhatsApp |
| 42 |
688–44118–00–94
|
1 | Ask on WhatsApp |
| 43 |
97013–08030
|
2 | Ask on WhatsApp |
| 43 |
97013–08030
|
2 | Ask on WhatsApp |
| 44 |
92903–08100
|
2 | Ask on WhatsApp |
| 44 |
92903–08100
|
2 | Ask on WhatsApp |
| 45 |
92903–08600
|
2 | Ask on WhatsApp |
| 45 |
92903–08600
|
2 | Ask on WhatsApp |
| 46 |
93501–04M02
|
1 | Ask on WhatsApp |
| 46 |
93501–04M02
|
1 | Ask on WhatsApp |
| 47 |
90501–12082
|
1 | Ask on WhatsApp |
| 47 |
90501–12082
|
1 | Ask on WhatsApp |
| 48 |
648–42715–00
|
1 | Ask on WhatsApp |
| 48 |
648–42715–00
|
1 | Ask on WhatsApp |
| 49 |
6H1–44120–12
|
1 | Ask on WhatsApp |
| 49 |
6H1–44120–12
|
1 | Ask on WhatsApp |
| 49 |
6H1–44120–22
|
1 | Ask on WhatsApp |
| 50 |
90386–07M58
|
1 | Ask on WhatsApp |
| 50 |
90386–07M58
|
1 | Ask on WhatsApp |
| 51 |
92990–08200
|
1 | Ask on WhatsApp |
| 51 |
92990–08200
|
1 | Ask on WhatsApp |
| 52 |
90468–18008
|
1 | Ask on WhatsApp |
| 52 |
90468–18008
|
1 | Ask on WhatsApp |
