Section 6: OIL PUMP (v2)
Engine sections in this catalog
TOP COWLING
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY
UPPER CASING
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
FUEL TANK
CYLINDER & CRANKCASE
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
METER
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT & PISTON
INTAKE
CARBURETOR
OIL PUMP
FUEL
GENERATOR
ELECTRICAL

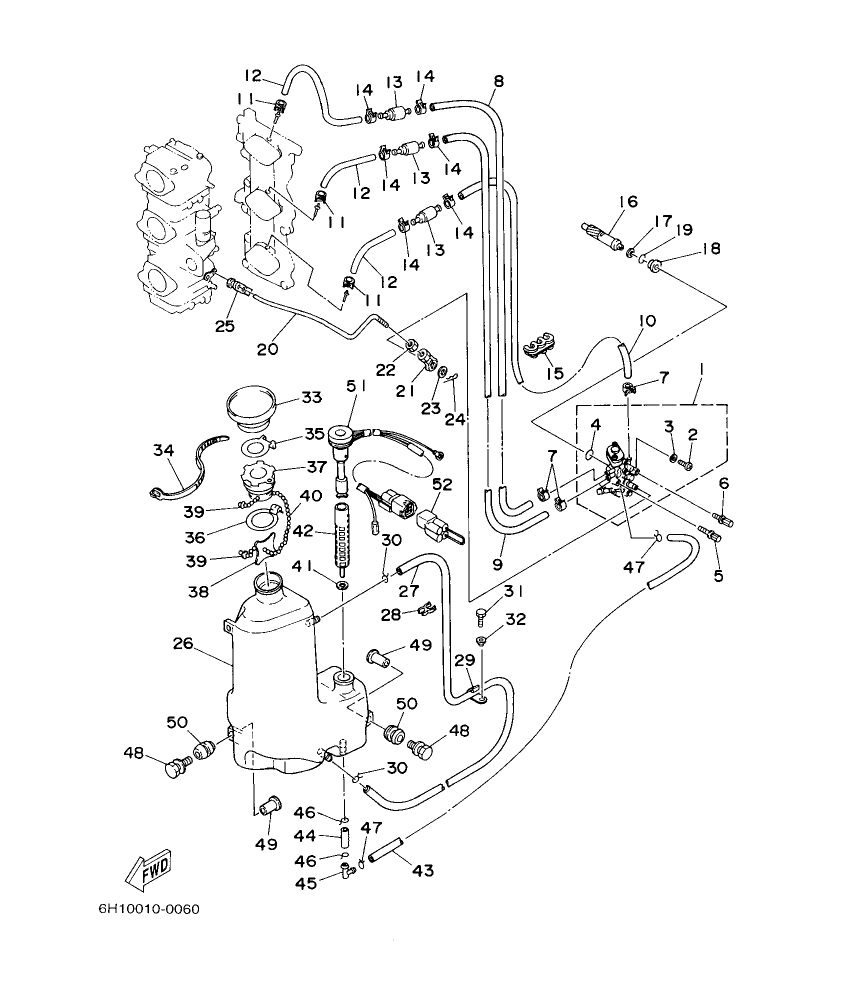

Diagram for section 6: OIL PUMP.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6H1–13200–02
OIL INJECTION PUMP ASSY
|
1 | Ask on WhatsApp |
| 2 |
6R3–13471–00
.PLUG, DRAIN
|
1 | Ask on WhatsApp |
| 3 |
6L2–13475–00
.GASKET
|
1 | Ask on WhatsApp |
| 4 |
93210–19MA7
.O-RING
|
1 | Ask on WhatsApp |
| 5 |
90109–06M39
BOLT
|
1 | Ask on WhatsApp |
| 6 |
90109–06M40
BOLT
|
1 | Ask on WhatsApp |
| 7 |
90468–07M02
CLIP
|
3 | Ask on WhatsApp |
| 8 |
90445–07M90
HOSE (L390)
|
1 | Ask on WhatsApp |
| 9 |
90445–07240
HOSE (L330)
|
1 | Ask on WhatsApp |
| 10 |
90445–07M44
HOSE (L250)
|
1 | Ask on WhatsApp |
| 11 |
90468–07M02
CLIP
|
3 | Ask on WhatsApp |
| 12 |
90445–07M87
HOSE (L110)
|
3 | Ask on WhatsApp |
| 13 |
6E9–13183–70
VALVE, CHECK
|
3 | Ask on WhatsApp |
| 14 |
90468–07M02
CLIP
|
6 | Ask on WhatsApp |
| 15 |
90464–07M05
CLAMP
|
1 | Ask on WhatsApp |
| 16 |
6H1–11537–01
GEAR, DRIVEN
|
1 | Ask on WhatsApp |
| 17 |
90201–08M93
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 18 |
6H1–13117–01
COLLAR, DISTANCE
|
1 | Ask on WhatsApp |
| 19 |
93210–13M04
O-RING
|
1 | Ask on WhatsApp |
| 20 |
6H1–41241–02
ROD, LINK
|
1 | Ask on WhatsApp |
| 21 |
6H1–41237–00
JOINT, LINK
|
1 | Ask on WhatsApp |
| 22 |
95380–05600
NUT
|
1 | Ask on WhatsApp |
| 23 |
90202–05088
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 24 |
90468–05M03
CLIP
|
1 | Ask on WhatsApp |
| 25 |
6E9–41237–00
JOINT, LINK
|
1 | Ask on WhatsApp |
| 26 |
6H1–21707–07
OIL TANK COMP.
|
1 | Ask on WhatsApp |
| 27 |
90445–11M09
HOSE (L600)
|
1 | Ask on WhatsApp |
| 28 |
90464–11M24
CLAMP
|
1 | Ask on WhatsApp |
| 29 |
90465–11M27
CLAMP
|
1 | Ask on WhatsApp |
| 30 |
90467–11M08
CLIP
|
2 | Ask on WhatsApp |
| 31 |
97095–06016
BOLT
|
1 | Ask on WhatsApp |
| 32 |
90387–06M31
COLLAR
|
1 | Ask on WhatsApp |
| 33 |
6H1–21752–00
TUBE, FILLER 1
|
1 | Ask on WhatsApp |
| 34 |
90465–13M30
CLAMP
|
1 | Ask on WhatsApp |
| 35 |
63D–2176M–00
HOOK
|
1 | Ask on WhatsApp |
| 36 |
63D–2175R–00
HOOK, BAND
|
1 | Ask on WhatsApp |
| 37 |
6H4–21770–00
OIL TANK CAP ASSY
|
1 | Ask on WhatsApp |
| 38 |
6J8–21758–00
WASHER, SPECIAL 2
|
1 | Ask on WhatsApp |
| 39 |
6H1–21757–00
WASHER, SPECIAL 1
|
2 | Ask on WhatsApp |
| 40 |
6H1–24633–00
CHAIN, BALL
|
1 | Ask on WhatsApp |
| 41 |
6J8–13414–00
GASKET, STRAINER COVER
|
1 | Ask on WhatsApp |
| 42 |
6H1–13411–00
STRAINER, OIL
|
1 | Ask on WhatsApp |
| 43 |
6H1–21766–01
PIPE, OIL
|
1 | Ask on WhatsApp |
| 44 |
90445–08M01
HOSE (L30)
|
1 | Ask on WhatsApp |
| 45 |
6H1–13435–00
NIPPLE
|
1 | Ask on WhatsApp |
| 46 |
90467–12M11
CLIP
|
2 | Ask on WhatsApp |
| 47 |
90467–08004
CLIP
|
2 | Ask on WhatsApp |
| 48 |
90119–06M88
BOLT, WITH WASHER
|
3 | Ask on WhatsApp |
| 49 |
624–42542–00
PIPE
|
3 | Ask on WhatsApp |
| 50 |
6A0–82317–00
DAMPER, IGNITION COIL
|
3 | Ask on WhatsApp |
| 51 |
6H1–85720–15
OIL LEVEL GAUGE ASSY
|
1 | Ask on WhatsApp |
| 52 |
6R5–82582–B0
COVER, WIRE HARNESS
|
1 | Ask on WhatsApp |
