Section 7: FUEL (v2)
Engine sections in this catalog
TOP COWLING
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY
UPPER CASING
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
FUEL TANK
CYLINDER & CRANKCASE
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
METER
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT & PISTON
INTAKE
CARBURETOR
OIL PUMP
FUEL
GENERATOR
ELECTRICAL

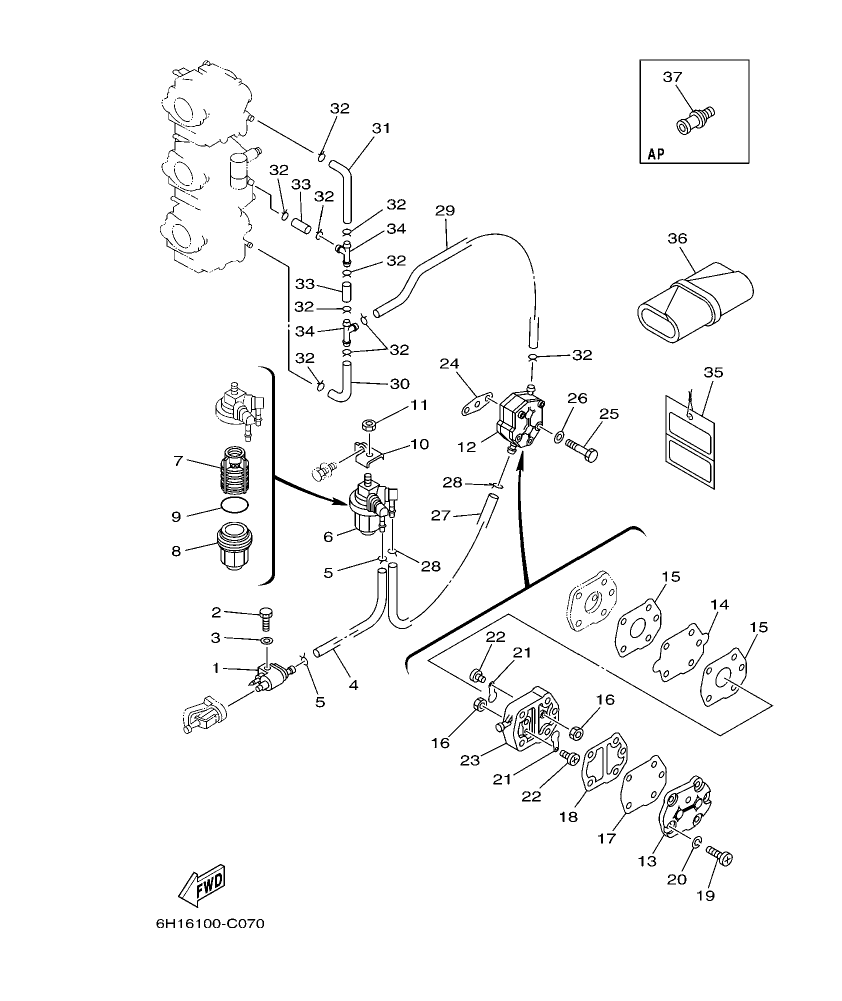

Diagram for section 7: FUEL.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6G1–24304–02
FUEL PIPE JOINT COMP. 1
|
1 | Ask on WhatsApp |
| 1 |
6G1–24304–02
FUEL PIPE JOINT COMP. 1
|
1 | Ask on WhatsApp |
| 2 |
97095–06020
BOLT
|
1 | Ask on WhatsApp |
| 2 |
97095–06020
BOLT
|
1 | Ask on WhatsApp |
| 3 |
92995–06600
WASHER
|
1 | Ask on WhatsApp |
| 3 |
92995–06600
WASHER
|
1 | Ask on WhatsApp |
| 4 |
90445–09104
HOSE (L300)
|
1 | Ask on WhatsApp |
| 4 |
90445–09104
HOSE (L300)
|
1 | Ask on WhatsApp |
| 5 |
90467–08004
CLIP
|
2 | Ask on WhatsApp |
| 5 |
90467–08004
CLIP
|
2 | Ask on WhatsApp |
| 6 |
61N–24560–00
FILTER ASSY
|
1 | Ask on WhatsApp |
| 6 |
61N–24560–00
FILTER ASSY
|
1 | Ask on WhatsApp |
| 7 |
61N–24563–00
.ELEMENT, FILTER
|
1 | Ask on WhatsApp |
| 7 |
61N–24563–00
.ELEMENT, FILTER
|
1 | Ask on WhatsApp |
| 8 |
61N–24521–00
.CUP, FILTER
|
1 | Ask on WhatsApp |
| 8 |
61N–24521–00
.CUP, FILTER
|
1 | Ask on WhatsApp |
| 9 |
93210–32738
.O-RING
|
1 | Ask on WhatsApp |
| 9 |
93210–32738
.O-RING
|
1 | Ask on WhatsApp |
| 10 |
6H1–24566–01
BRACKET, FILTER
|
1 | Ask on WhatsApp |
| 10 |
6H1–24566–01
BRACKET, FILTER
|
1 | Ask on WhatsApp |
| 11 |
95380–08600
NUT
|
1 | Ask on WhatsApp |
| 11 |
95380–08600
NUT
|
1 | Ask on WhatsApp |
| 12 |
692–24410–00
FUEL PUMP ASSY
|
1 | Ask on WhatsApp |
| 12 |
692–24410–00
FUEL PUMP ASSY
|
1 | Ask on WhatsApp |
| 13 |
6A0–24413–00
.BODY 2
|
1 | Ask on WhatsApp |
| 13 |
6A0–24413–00
.BODY 2
|
1 | Ask on WhatsApp |
| 14 |
692–24411–00
.DIAPHRAGM
|
1 | Ask on WhatsApp |
| 14 |
692–24411–00
.DIAPHRAGM
|
1 | Ask on WhatsApp |
| 15 |
648–24434–01
.GASKET, BODY
|
2 | Ask on WhatsApp |
| 15 |
648–24434–01
.GASKET, BODY
|
2 | Ask on WhatsApp |
| 16 |
95380–03600
.NUT
|
2 | Ask on WhatsApp |
| 16 |
95380–03600
.NUT
|
2 | Ask on WhatsApp |
| 17 |
663–24411–00
.DIAPHRAGM
|
1 | Ask on WhatsApp |
| 17 |
663–24411–00
.DIAPHRAGM
|
1 | Ask on WhatsApp |
| 18 |
648–24435–02
.GASKET, BODY 2
|
1 | Ask on WhatsApp |
| 18 |
648–24435–02
.GASKET, BODY 2
|
1 | Ask on WhatsApp |
| 19 |
98503–05028
.SCREW, PAN HEAD
|
3 | Ask on WhatsApp |
| 19 |
98503–05028
.SCREW, PAN HEAD
|
3 | Ask on WhatsApp |
| 20 |
92990–05100
.WASHER, SPRING
|
3 | Ask on WhatsApp |
| 20 |
92990–05100
.WASHER, SPRING
|
3 | Ask on WhatsApp |
| 21 |
6A0–24421–01
.VALVE, CHECK
|
2 | Ask on WhatsApp |
| 21 |
6A0–24421–01
.VALVE, CHECK
|
2 | Ask on WhatsApp |
| 22 |
6A0–14325–00
.SCREW, PAN HEAD
|
2 | Ask on WhatsApp |
| 22 |
6A0–14325–00
.SCREW, PAN HEAD
|
2 | Ask on WhatsApp |
| 23 |
6A0–24412–02
.BODY 1
|
1 | Ask on WhatsApp |
| 23 |
6A0–24412–02
.BODY 1
|
1 | Ask on WhatsApp |
| 24 |
650–24431–A0
GASKET, FUEL PUMP 1
|
1 | Ask on WhatsApp |
| 24 |
650–24431–A0
GASKET, FUEL PUMP 1
|
1 | Ask on WhatsApp |
| 25 |
97095–06040
BOLT
|
2 | Ask on WhatsApp |
| 25 |
97095–06040
BOLT
|
2 | Ask on WhatsApp |
| 26 |
92995–06600
WASHER
|
2 | Ask on WhatsApp |
| 26 |
92995–06600
WASHER
|
2 | Ask on WhatsApp |
| 27 |
6H1–24314–00
PIPE 4
|
1 | Ask on WhatsApp |
| 27 |
6H1–24314–00
PIPE 4
|
1 | Ask on WhatsApp |
| 28 |
90467–08004
|
2 | Ask on WhatsApp |
| 28 |
90467–08004
|
2 | Ask on WhatsApp |
| 29 |
90445–09097
|
1 | Ask on WhatsApp |
| 29 |
90445–09097
|
1 | Ask on WhatsApp |
| 30 |
688–24313–00
|
1 | Ask on WhatsApp |
| 30 |
688–24313–00
|
1 | Ask on WhatsApp |
| 31 |
688–24314–00
|
1 | Ask on WhatsApp |
| 31 |
688–24314–00
|
1 | Ask on WhatsApp |
| 32 |
90467–08004
|
10 | Ask on WhatsApp |
| 32 |
90467–08004
|
10 | Ask on WhatsApp |
| 33 |
90445–09220
|
2 | Ask on WhatsApp |
| 33 |
90445–09220
|
2 | Ask on WhatsApp |
| 34 |
688–24378–00
|
2 | Ask on WhatsApp |
| 34 |
688–24378–00
|
2 | Ask on WhatsApp |
| 35 |
61H–2819R–31
|
1 | Ask on WhatsApp |
| 36 |
656–W2810–02
|
1 | Ask on WhatsApp |
| 36 |
656–W2810–02
|
1 | Ask on WhatsApp |
| 37 |
6E0–28193–00–94
|
1 | Ask on WhatsApp |
| 37 |
6E0–28193–00–94
|
1 | Ask on WhatsApp |
