90A’04

Section 21: REMOTE CONTROL BOX (v2)

Engine sections in this catalog
TOP COWLING STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY UPPER CASING LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 FUEL TANK CYLINDER & CRANKCASE STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY METER REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON INTAKE CARBURETOR OIL PUMP FUEL GENERATOR ELECTRICAL

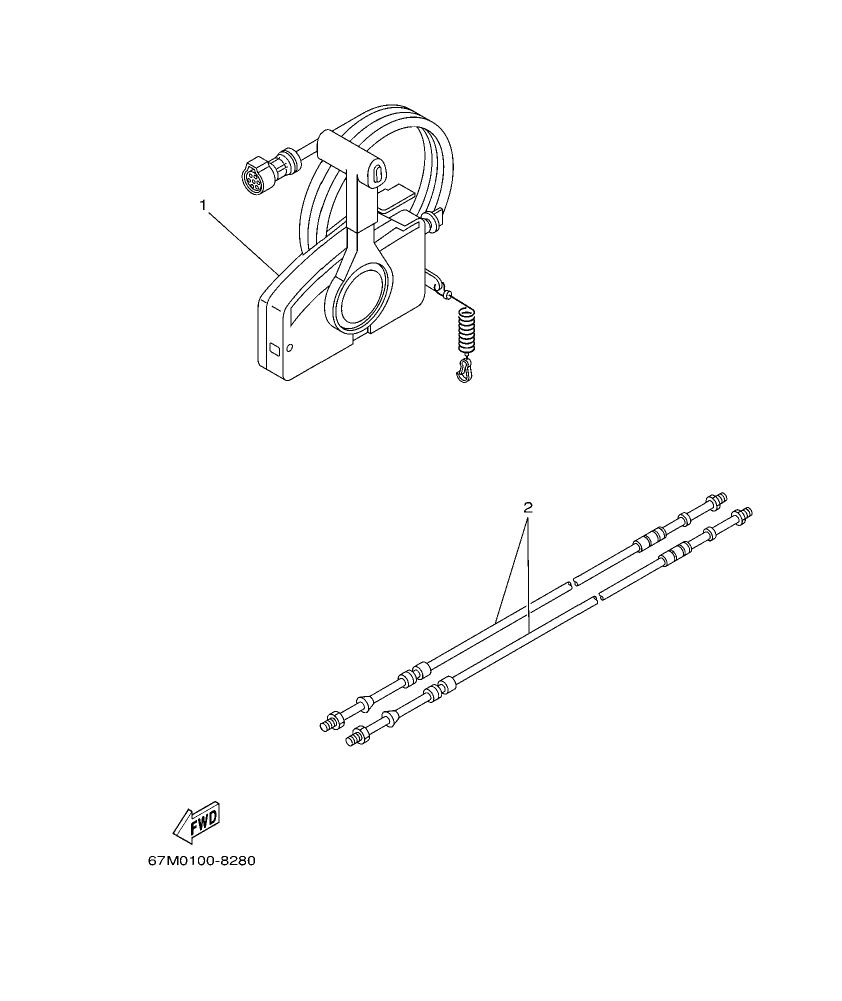

90A’04 – section 21 REMOTE CONTROL BOX parts diagram

Diagram for section 21: REMOTE CONTROL BOX.

Ref Part No. Qty Buy
1
703–48205–A4
REMOTE CONTROL ASSY (10P)
 1 Ask on WhatsApp
1
703–48207–17
REMOTE CONTROL ASSY (10P)
 1 Ask on WhatsApp
1
703–48207–17
REMOTE CONTROL ASSY (10P)
 1 Ask on WhatsApp
2
701–48320–30
CABLE, REMOTE CONTROL L=14F
 2 Ask on WhatsApp
2
701–48320–30
CABLE, REMOTE CONTROL L=14F
 2 Ask on WhatsApp
