Section 1: TOP COWLING (v2)
Engine sections in this catalog
TOP COWLING
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY
UPPER CASING
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
FUEL TANK
CYLINDER & CRANKCASE
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
METER
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT & PISTON
INTAKE
CARBURETOR
OIL PUMP
FUEL
GENERATOR
ELECTRICAL

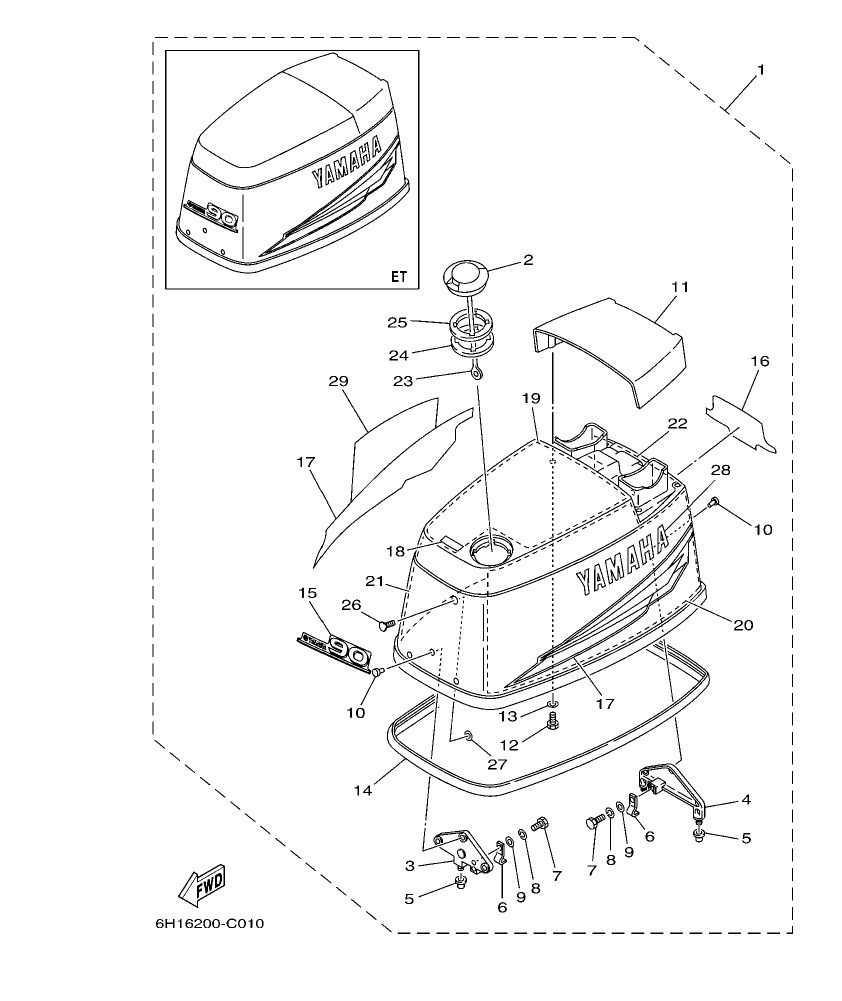

Diagram for section 1: TOP COWLING.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6H1–42610–60–4D
TOP COWLING ASSY
|
1 | Ask on WhatsApp |
| 1 |
6H1–42610–H0–4D
TOP COWLING ASSY
|
1 | Ask on WhatsApp |
| 2 |
63D–2177H–00
.DISK CAP 2
|
1 | Ask on WhatsApp |
| 3 |
6H1–42647–00–94
.HOLDER, CLAMP BAND
|
1 | Ask on WhatsApp |
| 3 |
6H1–42647–00–94
.HOLDER, CLAMP BAND
|
1 | Ask on WhatsApp |
| 4 |
6H1–42649–00–94
.HOLDER, CLAMP BAND
|
1 | Ask on WhatsApp |
| 4 |
6H1–42649–00–94
.HOLDER, CLAMP BAND
|
1 | Ask on WhatsApp |
| 5 |
663–42662–00
.DAMPER
|
3 | Ask on WhatsApp |
| 5 |
663–42662–00
.DAMPER
|
3 | Ask on WhatsApp |
| 6 |
688–42652–10
.HOOK
|
2 | Ask on WhatsApp |
| 6 |
688–42652–10
.HOOK
|
2 | Ask on WhatsApp |
| 7 |
97095–06016
.BOLT
|
2 | Ask on WhatsApp |
| 7 |
97095–06016
.BOLT
|
2 | Ask on WhatsApp |
| 8 |
92995–06100
.WASHER, SPRING
|
2 | Ask on WhatsApp |
| 8 |
92995–06100
.WASHER, SPRING
|
2 | Ask on WhatsApp |
| 9 |
92995–06600
.WASHER
|
2 | Ask on WhatsApp |
| 9 |
92995–06600
.WASHER
|
2 | Ask on WhatsApp |
| 10 |
90266–06009
.RIVET
|
6 | Ask on WhatsApp |
| 10 |
90266–06009
.RIVET
|
6 | Ask on WhatsApp |
| 11 |
6H1–42613–01–4D
.MOLDING, AIR DUCT
|
1 | Ask on WhatsApp |
| 11 |
6H1–42613–01–4D
.MOLDING, AIR DUCT
|
1 | Ask on WhatsApp |
| 12 |
97095–06016
.BOLT
|
4 | Ask on WhatsApp |
| 12 |
97095–06016
.BOLT
|
4 | Ask on WhatsApp |
| 13 |
92995–06600
.WASHER
|
4 | Ask on WhatsApp |
| 13 |
92995–06600
.WASHER
|
4 | Ask on WhatsApp |
| 14 |
688–42615–00
.SEAL
|
1 | Ask on WhatsApp |
| 14 |
688–42615–00
.SEAL
|
1 | Ask on WhatsApp |
| 15 |
6H1–42677–60
.GRAPHIC, FRONT
|
1 | Ask on WhatsApp |
| 15 |
6H1–42677–60
.GRAPHIC, FRONT
|
1 | Ask on WhatsApp |
| 16 |
6H1–42678–30
.GRAPHIC, REAR
|
1 | Ask on WhatsApp |
| 16 |
6H1–42678–30
.GRAPHIC, REAR
|
1 | Ask on WhatsApp |
| 17 |
6H1–W0070–30
.GRAPHIC SET
|
1 | Ask on WhatsApp |
| 17 |
6H1–W0070–30
.GRAPHIC SET
|
1 | Ask on WhatsApp |
| 18 |
6H1–13436–00
.MARK
|
1 | Ask on WhatsApp |
| 19 |
6H1–42617–10
.DAMPER, FORM
|
1 | Ask on WhatsApp |
| 19 |
6H1–42617–10
.DAMPER, FORM
|
1 | Ask on WhatsApp |
| 20 |
6H1–42619–00
.DAMPER, FORM
|
1 | Ask on WhatsApp |
| 20 |
6H1–42619–00
.DAMPER, FORM
|
1 | Ask on WhatsApp |
| 21 |
6H1–42627–00
.DAMPER, FORM
|
1 | Ask on WhatsApp |
| 21 |
6H1–42627–00
.DAMPER, FORM
|
1 | Ask on WhatsApp |
| 22 |
6H1–42637–00
.DAMPER, FORM
|
1 | Ask on WhatsApp |
| 22 |
6H1–42637–00
.DAMPER, FORM
|
1 | Ask on WhatsApp |
| 23 |
6H1–42694–00
.BAND
|
1 | Ask on WhatsApp |
| 24 |
6H3–21732–00
.SEAL 1
|
1 | Ask on WhatsApp |
| 25 |
6H3–21735–00
.SEAL 2
|
1 | Ask on WhatsApp |
| 26 |
90338–05M12
.PLUG
|
1 | Ask on WhatsApp |
| 27 |
90183–05M06
.NUT, SPRING
|
1 | Ask on WhatsApp |
| 28 |
6H1–42681–30
.MARK, COWLING
|
1 | Ask on WhatsApp |
| 28 |
6H1–42681–30
.MARK, COWLING
|
1 | Ask on WhatsApp |
| 29 |
6H1–42682–30
.MARK, COWLING
|
1 | Ask on WhatsApp |
| 29 |
6H1–42682–30
.MARK, COWLING
|
1 | Ask on WhatsApp |
