MT09TRP

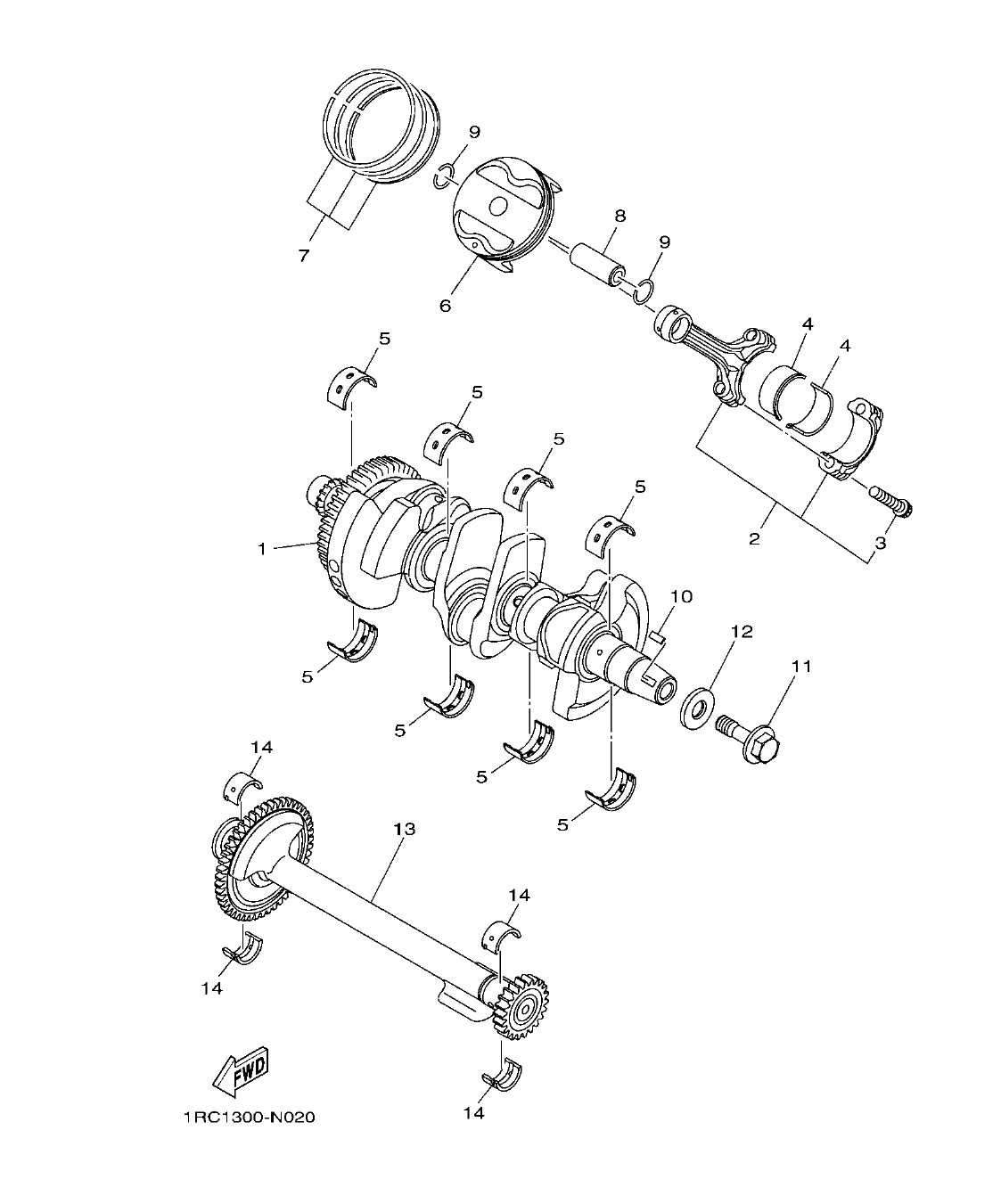

Section 2: CRANKSHAFT & PISTON (v2)
Model code: B562
Parts list
Section 2
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
1RC-11400-00
CRANKSHAFT ASSY
|
1 | |
| 2 |
1RC-11650-00
CONNECTING ROD ASSY
|
3 | |
| 3 |
1RC-11654-00
.BOLT, CONNECTING ROD
|
2 | |
| 4 |
1RC-11656-00
PLANE BEARING, CONNECTING ROD
UR BLUE
|
6 | |
| 4 |
1RC-11656-10
PLANE BEARING, CONNECTING ROD
UR BLACK
|
6 | |
| 4 |
1RC-11656-20
PLANE BEARING, CONNECTING ROD
UR BROWN
|
6 | |
| 4 |
1RC-11656-30
PLANE BEARING, CONNECTING ROD
UR GREEN
|
6 | |
| 5 |
5VY-11416-00
PLANE BEARING, CRANKSHAFT 1
UR BLUE
|
8 | |
| 5 |
5VY-11416-10
PLANE BEARING, CRANKSHAFT 1
UR BLACK
|
8 | |
| 5 |
5VY-11416-20
PLANE BEARING, CRANKSHAFT 1
UR BROWN
|
8 | |
| 5 |
5VY-11416-30
PLANE BEARING, CRANKSHAFT 1
UR GREEN
|
8 | |
| 5 |
5VY-11416-A0
PLANE BEARING, CRANKSHAFT 1
UR WHITE
|
8 | |
| 6 |
1RC-11631-00
PISTON (STD)
|
3 | |
| 7 |
1RC-11603-00
PISTON RING SET (STD)
|
3 | |
| 8 |
39P-11633-00
PIN, PISTON
|
3 | |
| 9 |
93450-18157
CIRCLIP
|
6 | |
| 10 |
90280-05029
KEY, WOODRUFF
|
1 |
10.43 AED
Check price & stock on WhatsApp
|
| 11 |
90105-126A8
BOLT, FLANGE
|
1 | |
| 12 |
90201-12008
WASHER, PLATE
|
1 | |
| 13 |
1RC-11500-00
BALANCER ASSY
|
1 | |
| 14 |
2S3-11413-00
METAL, BALANCE WEIGHT
UR BLUE
|
4 | |
| 14 |
2S3-11413-10
METAL, BALANCE WEIGHT
UR BLACK
|
4 | |
| 14 |
2S3-11413-20
METAL, BALANCE WEIGHT
UR BROWN
|
4 | |
| 14 |
2S3-11413-30
METAL, BALANCE WEIGHT
UR GREEN
|
4 |
17.88 AED
Check price & stock on WhatsApp
|
| 14 |
2S3-11413-40
METAL, BALANCE WEIGHT
UR YELLOW
|
4 |
