MT09TRP

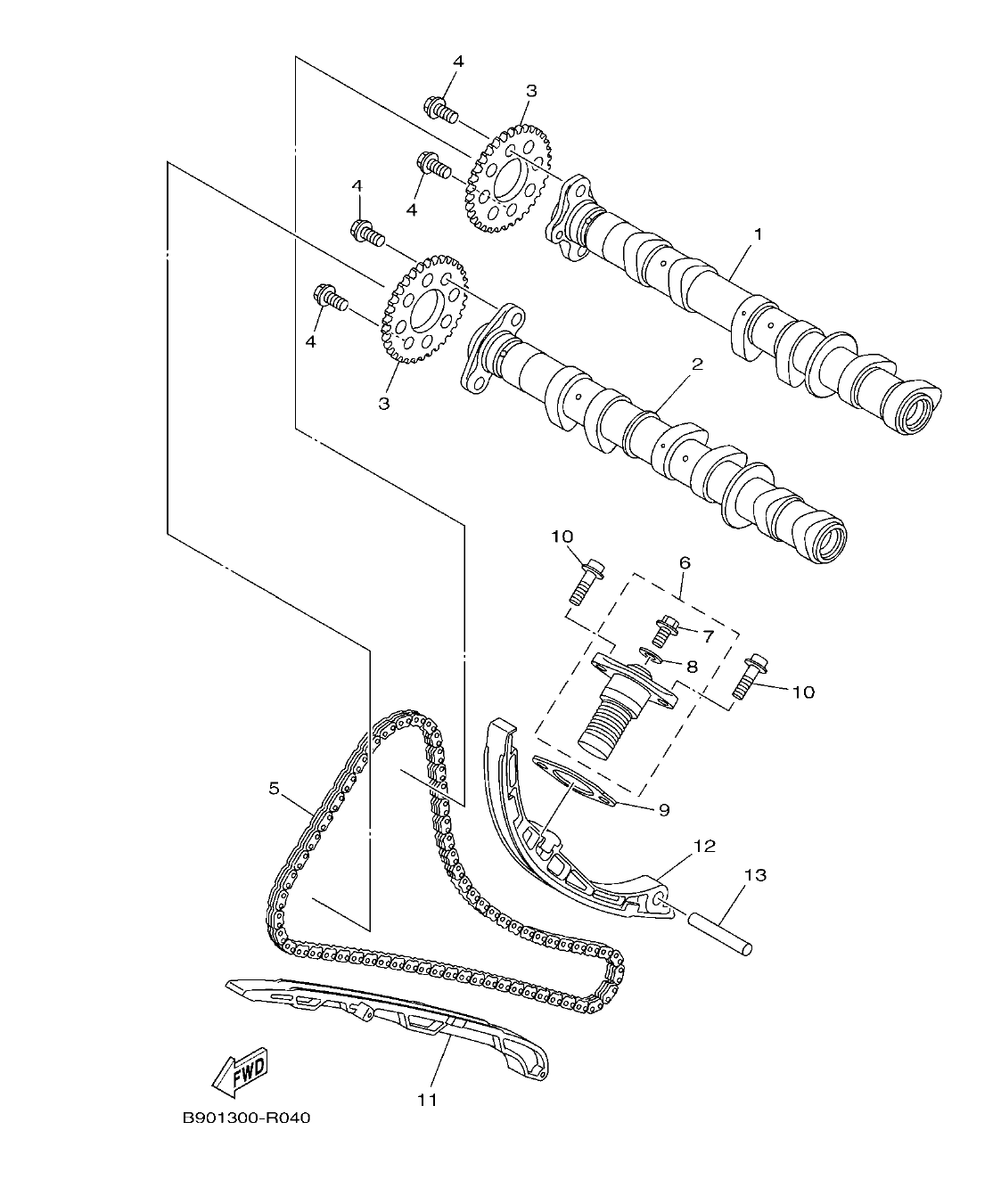

Section 4: CAMSHAFT & CHAIN (v2)
Model code: B562
Parts list
Section 4
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
1RC-12170-00
CAMSHAFT ASSY 1
|
1 | |
| 2 |
1RC-12180-00
CAMSHAFT ASSY 2
|
1 | |
| 3 |
20S-12176-00
SPROCKET, CAM CHAIN
|
2 | |
| 4 |
90105-07006
BOLT, FLANGE
|
4 | |
| 5 |
94591-57128
CHAIN (98XRH2010-128M)
|
1 | |
| 6 |
B90-12210-00
TENSIONER ASSY, CAM CHAIN
|
1 | |
| 7 |
5EL-12228-00
.BOLT
|
1 | |
| 8 |
5SL-12214-00
.GASKET
|
1 |
3.72 AED
Check price & stock on WhatsApp
|
| 9 |
1WS-12213-00
GASKET, TENSIONER CASE
|
1 | |
| 10 |
90110-06395
BOLT, HEXAGON SOCKET HEAD
|
2 | |
| 11 |
1RC-12251-00
DAMPER, CHAIN 1
|
1 | |
| 12 |
1RC-12250-01
CHAIN DAMPER ASSY
|
1 |
150.47 AED
Check price & stock on WhatsApp
|
| 13 |
93607-44002
PIN, DOWEL
|
1 |
