MT09TRP

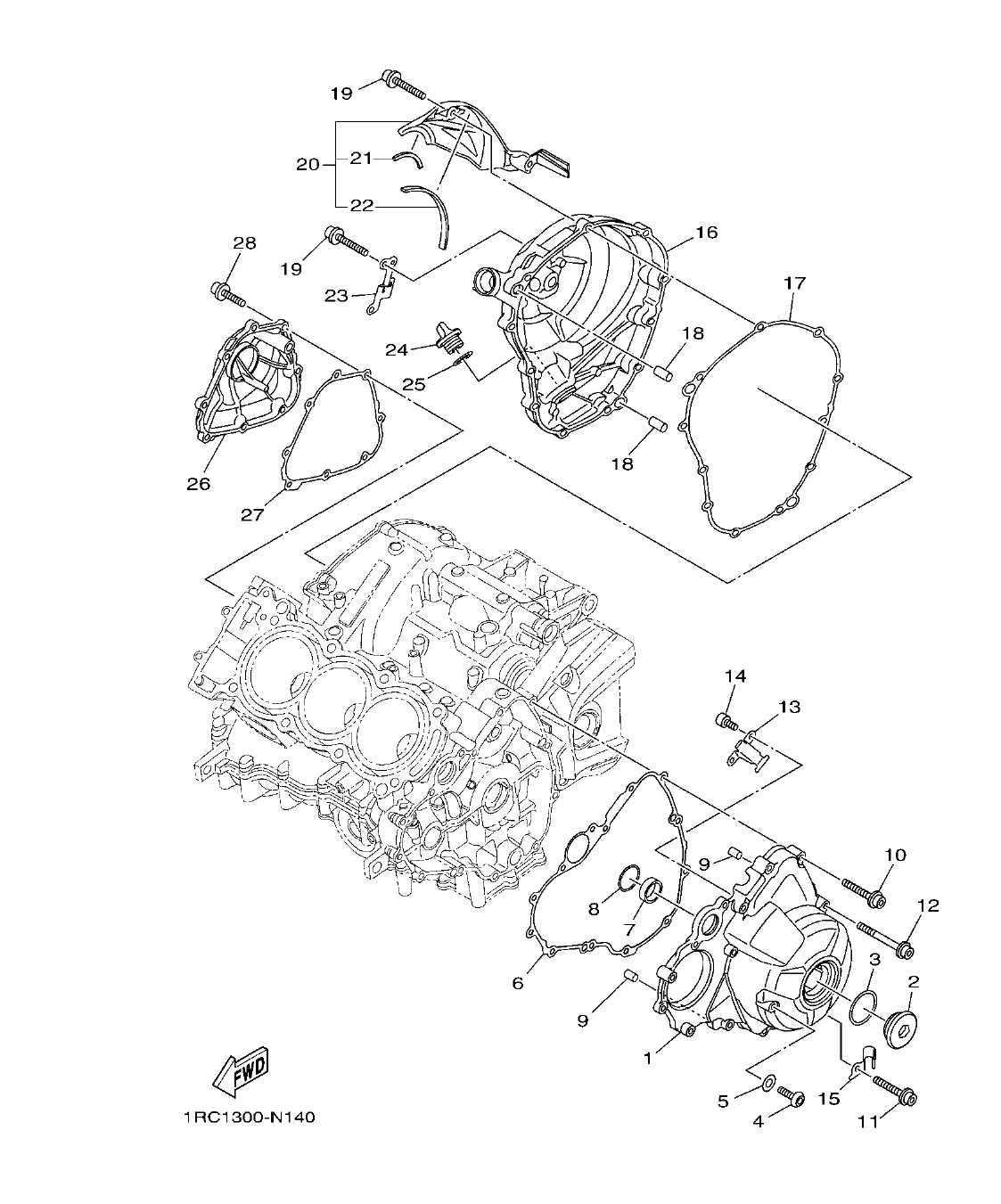

Section 14: CRANKCASE COVER 1 (v2)
Model code: B562
Parts list
Section 14
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
1RC-15411-00
COVER, CRANKCASE 1
|
1 | |
| 2 |
90340-36005
PLUG, STRAIGHT SCREW
|
1 | |
| 3 |
93210-357A3
O-RING
|
1 | |
| 4 |
92017-08012
BOLT, BUTTON HEAD
|
1 |
3.72 AED
Check price & stock on WhatsApp
|
| 5 |
90430-08143
GASKET
|
1 | |
| 6 |
1RC-15451-00
GASKET, CRANKCASE COVER 1
|
1 | |
| 7 |
1RC-12564-00
PIPE, WATER
|
1 | |
| 8 |
93210-28543
O-RING
|
1 | |
| 9 |
99530-08012
PIN, DOWEL
|
2 | |
| 10 |
90110-06388
BOLT, HEXAGON SOCKET HEAD
|
6 |
2.98 AED
Check price & stock on WhatsApp
|
| 11 |
90110-06389
BOLT, HEXAGON SOCKET HEAD
|
2 | |
| 12 |
90110-06394
BOLT, HEXAGON SOCKET HEAD
|
2 |
5.21 AED
Check price & stock on WhatsApp
|
| 13 |
1RC-15484-00
CLAMP 2
|
1 | |
| 14 |
90110-06168
BOLT, HEXAGON SOCKET HEAD
|
2 | |
| 15 |
1RC-15199-00
BRACKET
|
1 | |
| 16 |
1RC-15421-00
COVER, CRANKCASE 2
|
1 | |
| 17 |
1RC-15461-00
GASKET, CRANKCASE COVER 2
|
1 | |
| 18 |
93610-20189
PIN, DOWEL
|
2 | |
| 19 |
90110-06388
BOLT, HEXAGON SOCKET HEAD
|
11 |
2.98 AED
Check price & stock on WhatsApp
|
| 20 |
1RC-15490-00
COVER ASSY
|
1 | |
| 21 |
1RC-15789-00
.DAMPER
|
1 | |
| 22 |
90520-03014
.DAMPER, PLATE
|
1 | |
| 23 |
1RC-15191-00
PLATE
|
1 | |
| 24 |
5GJ-15363-10
PLUG, OIL
|
1 | |
| 25 |
93210-19123
O-RING
|
1 | |
| 26 |
1RC-15416-00
COVER, OIL PUMP
|
1 | |
| 27 |
1RC-15456-00
GASKET, OIL PUMP COVER 1
|
1 | |
| 28 |
90110-06396
BOLT, HEXAGON SOCKET HEAD
|
8 |
