MT09TRP

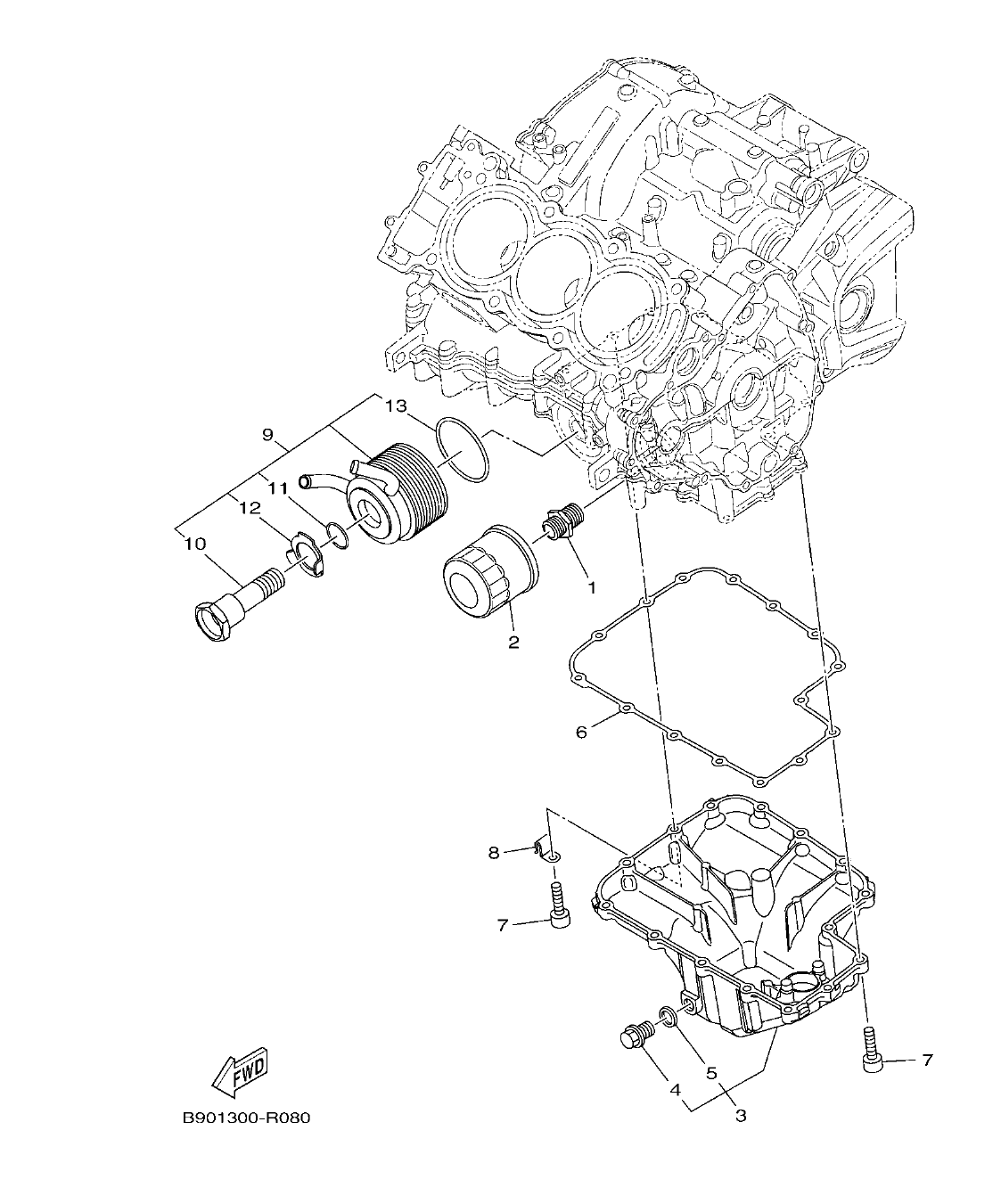

Section 8: OIL CLEANER (v2)
Model code: B562
Parts list
Section 8
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
90401-20008
BOLT, UNION
|
1 | |
| 2 |
5GH-13440-50
ELEMENT ASSY, OIL CLEANER
|
1 | |
| 3 |
B56-13400-00
STRAINER COVER ASSY
|
1 | |
| 4 |
90340-14132
.PLUG, STRAIGHT SCREW
|
1 | |
| 5 |
214-11198-01
.GASKET
|
1 | |
| 6 |
1RC-13414-00
GASKET, STRAINER COVER
|
1 | |
| 7 |
91312-06025
BOLT, HEXAGON SOCKET HEAD
|
15 | |
| 8 |
90465-06025
CLAMP
|
1 | |
| 9 |
1RC-13470-00
OIL COOLER ASSY
|
1 | |
| 10 |
5PW-12822-00
.BOLT, UNION
|
1 | |
| 11 |
5PW-13473-00
.O-RING
|
1 | |
| 12 |
5PW-13318-00
.WASHER
|
1 | |
| 13 |
5PW-13475-00
.GASKET
|
1 |
