MT09TRP

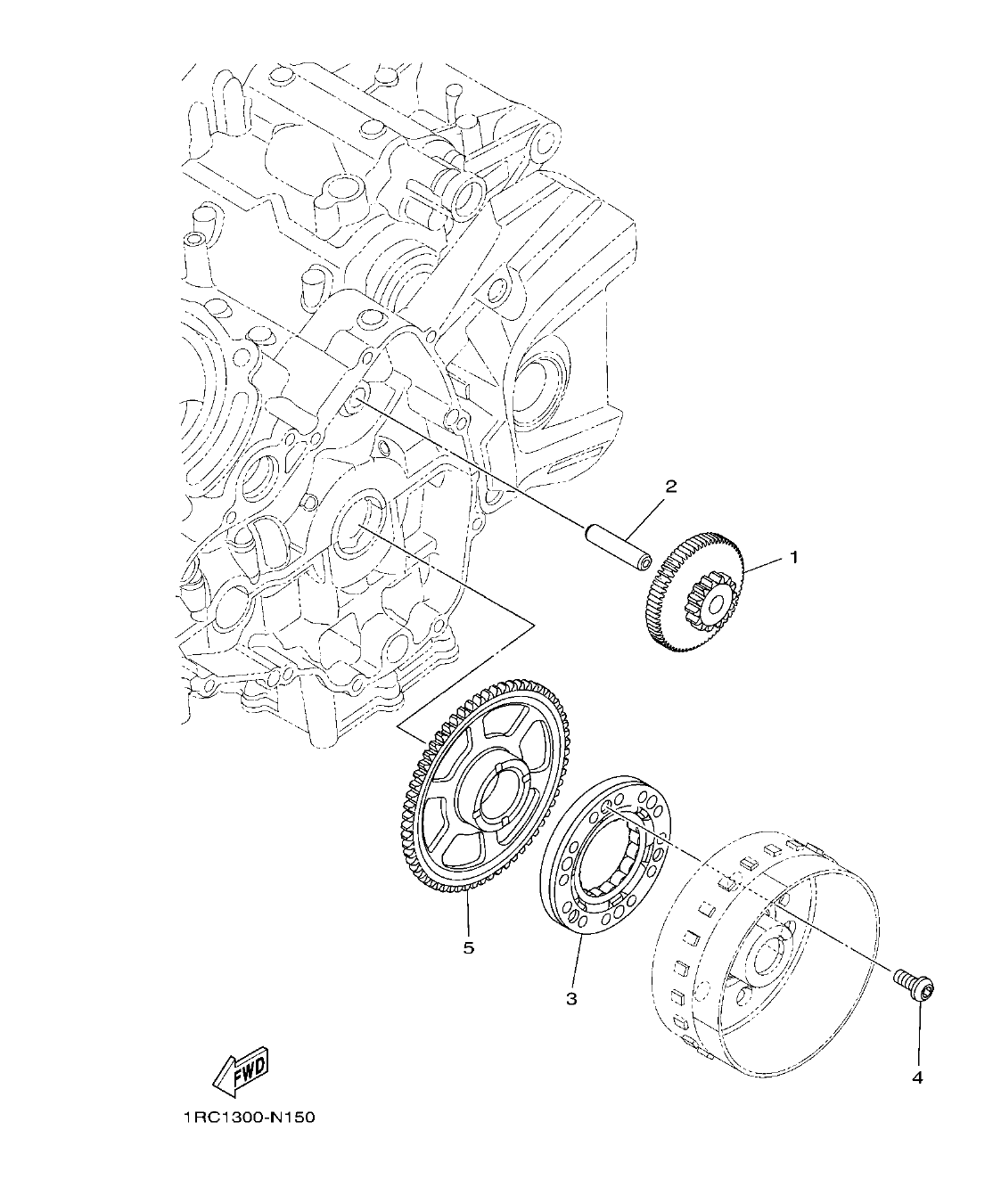

Section 15: STARTER (v2)
Model code: B562
Parts list
Section 15
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
1RC-15512-00
GEAR, IDLER 1
|
1 | |
| 2 |
5EB-15521-00
SHAFT 1
|
1 | |
| 3 |
1RC-15590-00
STARTER ONE-WAY ASSY
|
1 | |
| 4 |
90149-08030
SCREW
|
3 | |
| 5 |
1RC-15515-00
GEAR 3
|
1 |
