MT09TRP

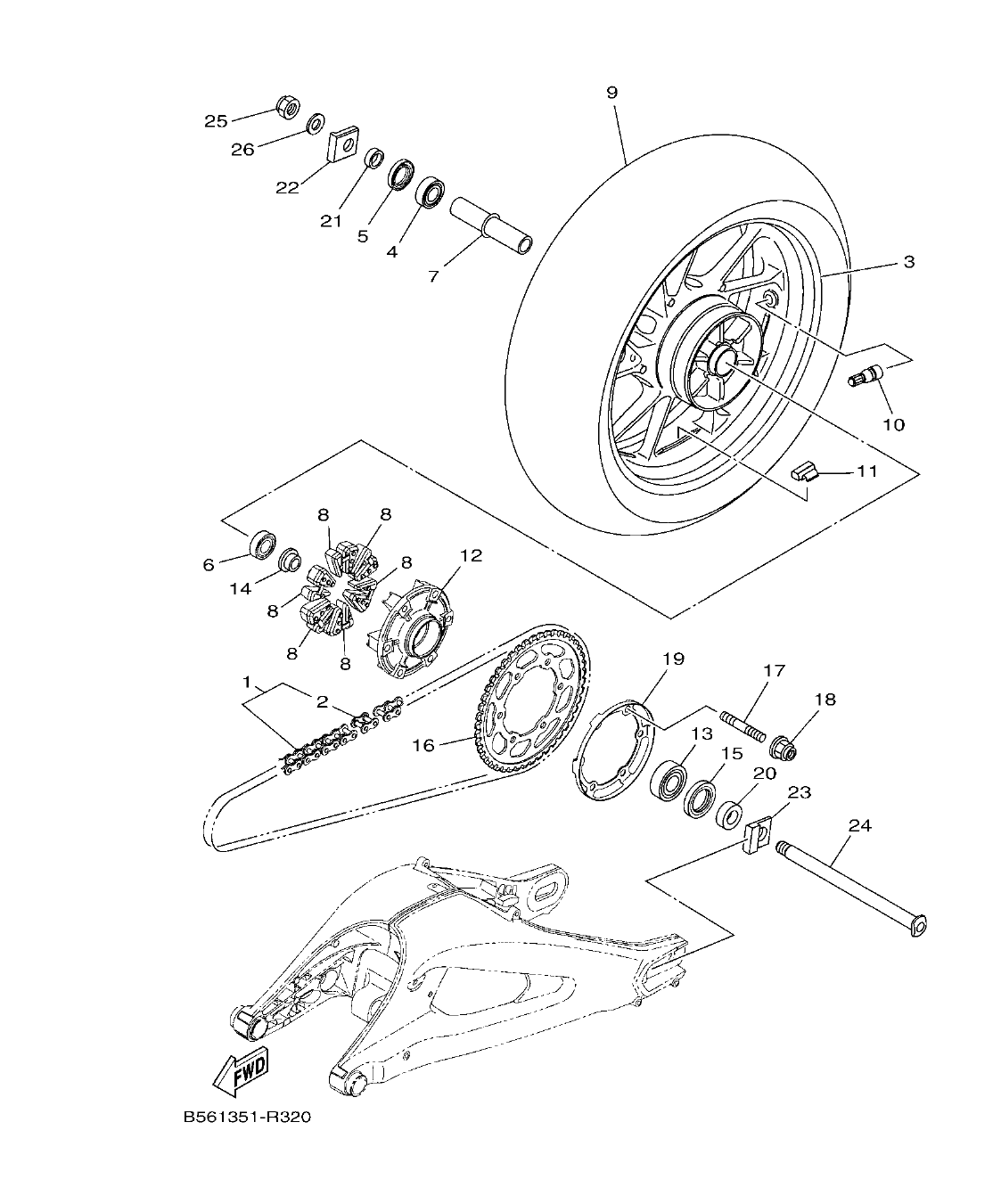

Section 32: REAR WHEEL (v2)
Model code: B562
Parts list
Section 32
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
94582-31122
CHAIN (DID 525V10-121LL)
|
1 | |
| 2 |
94682-31031
.JOINT, CHAIN (DID 525V10-ZJ)
|
1 | |
| 3 |
2SC-25338-00-98
CAST WHEEL, REAR
LGB FOR RW,DPBSS
|
1 | |
| 4 |
93306-20480
BEARING
|
1 | |
| 5 |
93102-28022
OIL SEAL
|
1 |
10.43 AED
Check price & stock on WhatsApp
|
| 6 |
93306-00416
BEARING
|
1 | |
| 7 |
2PP-25317-00
SPACER, BEARING
|
1 | |
| 8 |
1RC-25364-00
DAMPER
|
6 |
21.60 AED
Check price & stock on WhatsApp
|
| 10 |
93900-00030
VALVE, RIM (TR412)
TAIHEIYO
|
1 | |
| 11 |
5MT-25398-00
BALANCER, WHEEL (10G)
UR
|
1 | |
| 11 |
5MT-25398-10
BALANCER, WHEEL (20G)
UR
|
1 | |
| 11 |
5MT-25398-20
BALANCER, WHEEL (30G)
UR
|
1 | |
| 12 |
5JJ-25366-00
CLUTCH, HUB
|
1 | |
| 13 |
93306-205B5
BEARING
|
1 | |
| 14 |
1RC-25383-00
COLLAR, WHEEL
|
1 | |
| 15 |
93106-40013
OIL SEAL
|
1 | |
| 16 |
1RC-25445-00
SPROCKET, DRIVEN (45T)
|
1 | |
| 17 |
90116-10048
BOLT, STUD
|
6 | |
| 18 |
95602-10200
NUT, U FLANGE
|
6 | |
| 19 |
1RC-2537W-00
BRACKET 1
|
1 | |
| 20 |
90387-20036
COLLAR
|
1 | |
| 21 |
90387-20035
COLLAR
|
1 | |
| 22 |
3SP-25388-00
PULLER, CHAIN 1
|
1 | |
| 23 |
1RC-25389-00
PULLER, CHAIN 2
|
1 |
99.07 AED
Check price & stock on WhatsApp
|
| 24 |
1RC-25381-00
AXLE, WHEEL
|
1 | |
| 25 |
90185-18009
NUT, SELF-LOCKING
|
1 | |
| 26 |
90201-18021
WASHER, PLATE
|
1 |
