MT09TRP

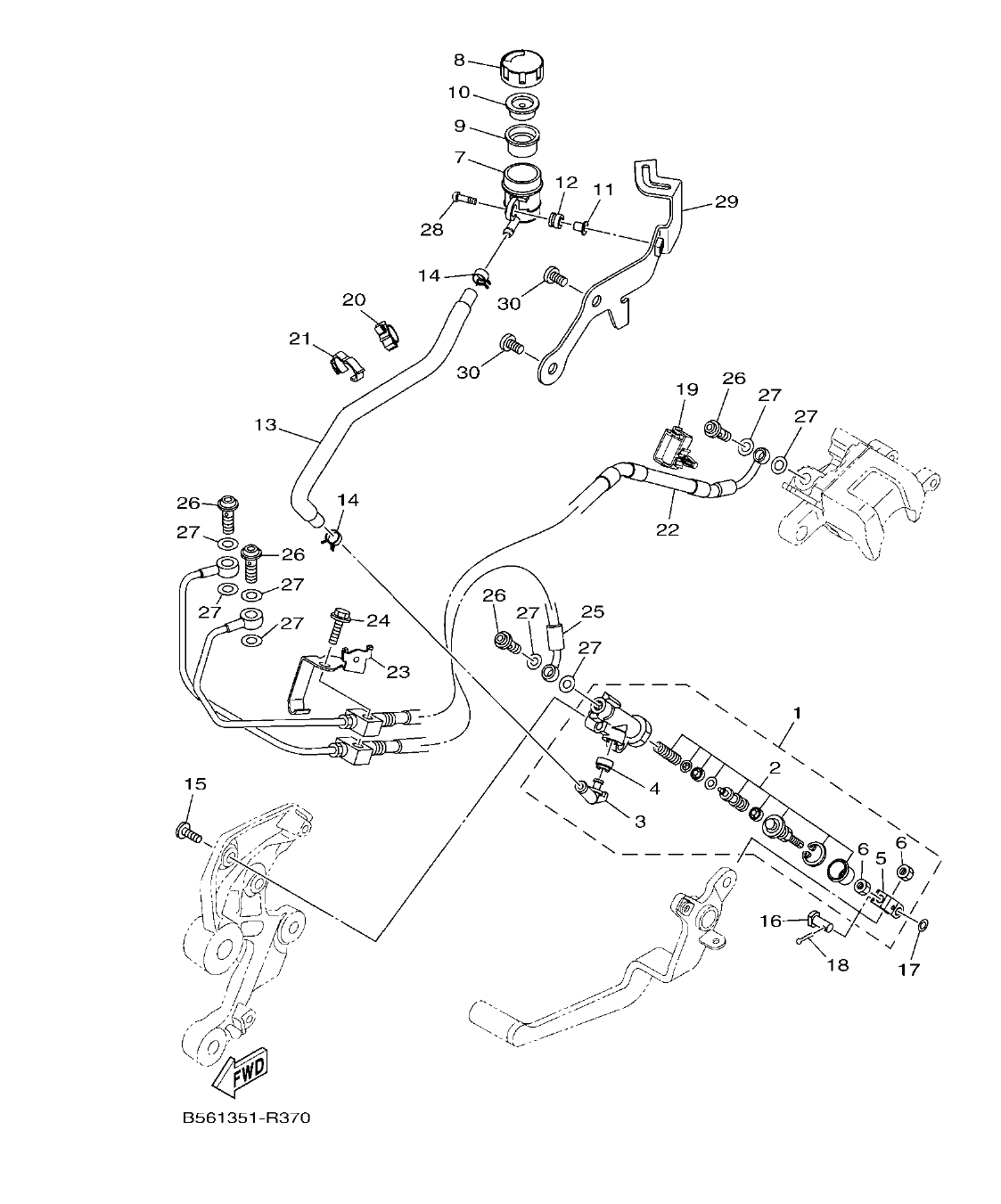

Section 37: REAR MASTER CYLINDER (v2)
Model code: B562
Parts list
Section 37
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
56P-2583V-00
RR. MASTER CYLINDER ASSY.
|
1 | |
| 2 |
56P-25808-50
.CYLINDER KIT, MASTER
|
1 | |
| 3 |
2D1-2582A-00
.JOINT
|
1 | |
| 4 |
4BP-2585F-01
.O-RING
|
1 | |
| 5 |
4BP-27222-02
.JOINT
|
1 | |
| 6 |
90170-08010
.NUT
|
2 | |
| 7 |
14B-25894-00
TANK, RESERVOIR
|
1 | |
| 8 |
2C0-25852-00
CAP, RESERVOIR
|
1 | |
| 9 |
2VN-25854-00
DIAPHRAGM, RESERVOIR
|
1 |
17.88 AED
Check price & stock on WhatsApp
|
| 10 |
2VN-25855-00
BUSH,DIAPHRAGM
|
1 |
11.17 AED
Check price & stock on WhatsApp
|
| 11 |
90387-05028
COLLAR
|
1 | |
| 12 |
2C0-26326-00
GROMMET
|
1 | |
| 13 |
2PP-25895-00
HOSE, RESERVOIR
|
1 | |
| 14 |
90467-120A3
CLIP
|
2 | |
| 15 |
90111-08038
BOLT,HEX. SOCKET BUTTON
|
2 | |
| 16 |
90240-08005
PIN, CLEVIS
|
1 | |
| 17 |
90201-08066
WASHER, PLATE
|
1 | |
| 18 |
91401-20012
PIN, COTTER
|
1 | |
| 19 |
90464-20023
CLAMP
|
1 | |
| 20 |
90464-18007
CLAMP
|
1 | |
| 21 |
90464-16003
CLAMP
|
1 | |
| 22 |
B56-2581K-00
HOSE, BRAKE 5
|
1 | |
| 23 |
2DR-85142-00
BRACKET, REFLECTOR 2
|
1 | |
| 24 |
90105-06192
BOLT, FLANGE
|
1 | |
| 25 |
2DR-2581J-00
HOSE, BRAKE 4
|
1 | |
| 26 |
90401-10172
BOLT, UNION
|
4 | |
| 27 |
90430-10005
GASKET
|
8 |
2.86 AED
Check price & stock on WhatsApp
|
| 28 |
90111-05026
BOLT,HEX. SOCKET BUTTON
|
1 | |
| 29 |
2PP-2582E-00
HOLDER, RESERVE TANK
|
1 | |
| 30 |
90111-08037
BOLT,HEX. SOCKET BUTTON
|
2 |
