MT09TRP

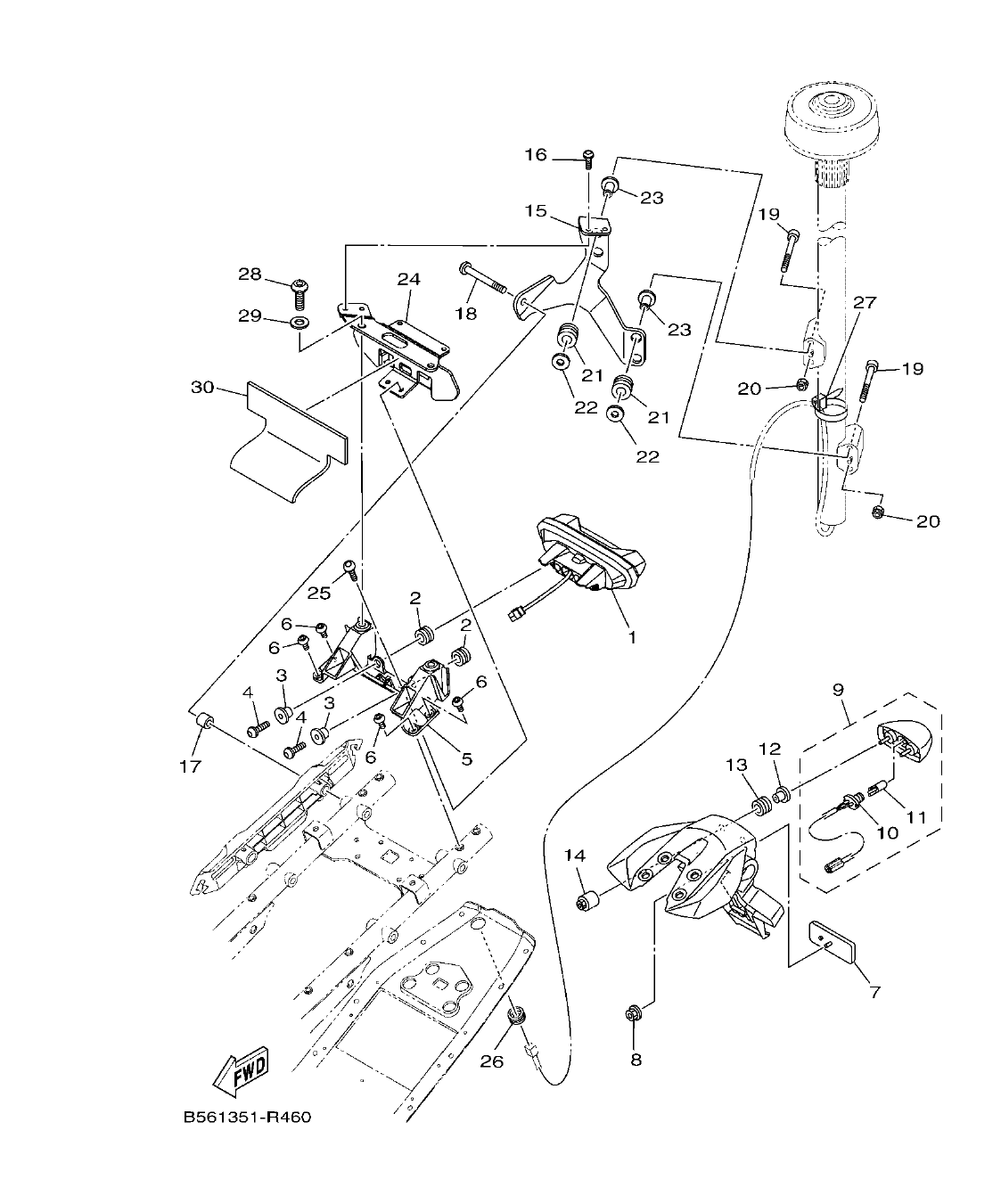

Section 46: TAILLIGHT (v2)
Model code: B562
Parts list
Section 46
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
2PP-84700-00
TAILLIGHT ASSY
|
1 | |
| 2 |
90480-12015
GROMMET
|
2 | |
| 3 |
90387-06288
COLLAR
|
2 | |
| 4 |
92012-06020
BOLT, BUTTON HEAD
|
2 | |
| 5 |
B56-2117E-00
BRACKET, TAILLIGHT
|
1 | |
| 6 |
90111-06029
BOLT,HEX. SOCKET BUTTON
|
4 | |
| 7 |
3Y6-85130-02
REAR REFLECTOR ASSY
|
1 | |
| 8 |
95602-05200
NUT, SELF-LOCKING
|
1 | |
| 9 |
1WS-84740-00
LICENCE LIGHT ASSY
|
1 | |
| 10 |
1WS-84547-00
.CORD, LICENCE LIGHT
|
1 | |
| 11 |
1TP-84347-00
.BULB (12V-5W)
|
1 | |
| 12 |
90387-05042
COLLAR
|
2 | |
| 13 |
90480-11009
GROMMET
|
2 | |
| 14 |
1RC-2622H-00
WEIGHT
|
2 | |
| 15 |
B56-2843L-00
PLATE
|
1 | |
| 16 |
92017-06014
BOLT, BUTTON HEAD
|
2 | |
| 17 |
90387-105T5
COLLAR
|
1 | |
| 18 |
90111-08006
BOLT,HEX. SOCKET BUTTON
|
1 | |
| 19 |
91312-06055
BOLT
|
4 | |
| 20 |
90185-06040
NUT, SELF-LOCKING
|
2 | |
| 21 |
90480-16010
GROMMET
|
4 | |
| 22 |
90201-06069
WASHER, PLATE
|
4 | |
| 23 |
90387-066J1
COLLAR
|
4 | |
| 24 |
B56-84519-00
BRACKET, TAILLIGHT
|
1 | |
| 25 |
92017-06014
BOLT, BUTTON HEAD
|
2 | |
| 26 |
90480-25482
GROMMET
|
1 | |
| 27 |
90464-15195
CLAMP
|
1 | |
| 28 |
92014-10020
BOLT, BUTTON HEAD
|
2 | |
| 29 |
90201-11013
WASHER, PLATE
|
2 | |
| 30 |
B56-2849F-00
SEAL 7
|
1 |
