MT09TRP

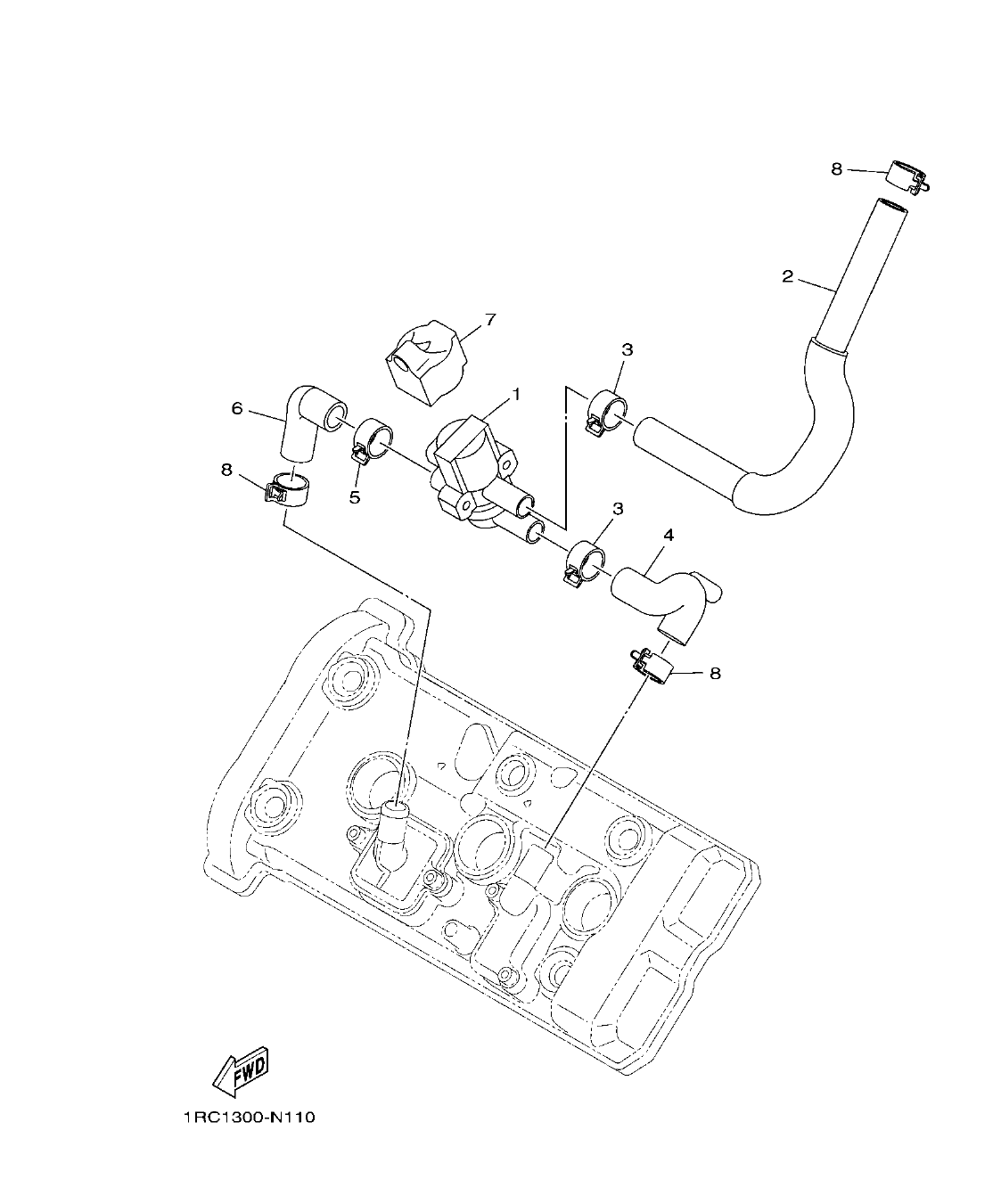

Section 11: AIR INDUCTION SYSTEM (v2)
Model code: B562
Parts list
Section 11
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
2S3-14840-00
AIR CUT VALVE ASSY
|
1 | |
| 2 |
1RC-14881-00
HOSE, BEND 1
|
1 | |
| 3 |
90467-17089
CLIP
|
2 | |
| 4 |
1RC-14882-00
HOSE, BEND 2
|
1 | |
| 5 |
90467-17089
CLIP
|
1 | |
| 6 |
1RC-14883-00
HOSE, BEND 3
|
1 | |
| 7 |
1RC-1445C-00
HOLDER
|
1 | |
| 8 |
90467-17003
CLIP
|
3 |
