MT09TRP

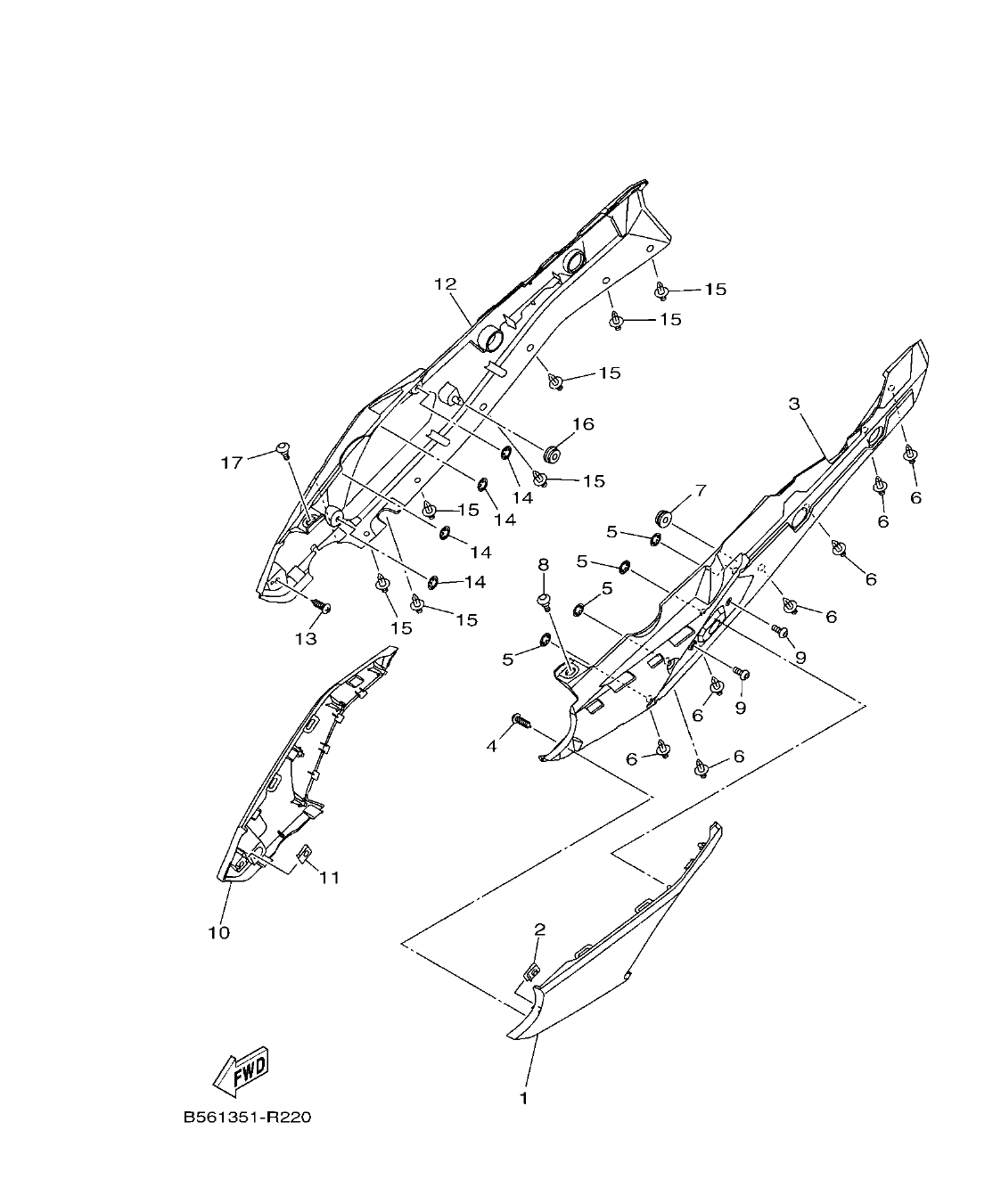

Section 22: SIDE COVER (v2)
Model code: B562
Parts list
Section 22
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
2PP-21711-00-UJ
COVER, SIDE 1
UR FOR RW
|
1 | |
| 1 |
2PP-21711-00-P5
COVER, SIDE 1
UR FOR DPBSS
|
1 | |
| 2 |
90183-05042
NUT, SPRING
|
1 | |
| 3 |
B56-21731-00
COVER, SIDE 3
|
1 | |
| 4 |
97707-50012
SCREW, TRUSS HEAD TAPPING
|
1 | |
| 5 |
90183-05M02
NUT, SPRING
|
4 | |
| 6 |
90269-07007
RIVET
|
7 | |
| 7 |
90480-13398
GROMMET
|
1 | |
| 8 |
90111-05045
BOLT,HEX. SOCKET BUTTON
|
1 | |
| 9 |
90149-06308
SCREW
|
2 | |
| 10 |
2PP-21721-00-P5
COVER, SIDE 2
UR FOR DPBSS
|
1 | |
| 10 |
2PP-21721-00-UJ
COVER, SIDE 2
UR FOR RW
|
1 | |
| 11 |
90183-05042
NUT, SPRING
|
1 | |
| 12 |
B56-21741-00
COVER, SIDE 4
|
1 | |
| 13 |
97707-50012
SCREW, TRUSS HEAD TAPPING
|
1 | |
| 14 |
90183-05M02
NUT, SPRING
|
4 | |
| 15 |
90269-07007
RIVET
|
7 | |
| 16 |
90480-13398
GROMMET
|
1 | |
| 17 |
90111-05045
BOLT,HEX. SOCKET BUTTON
|
1 |
