MT09TRP

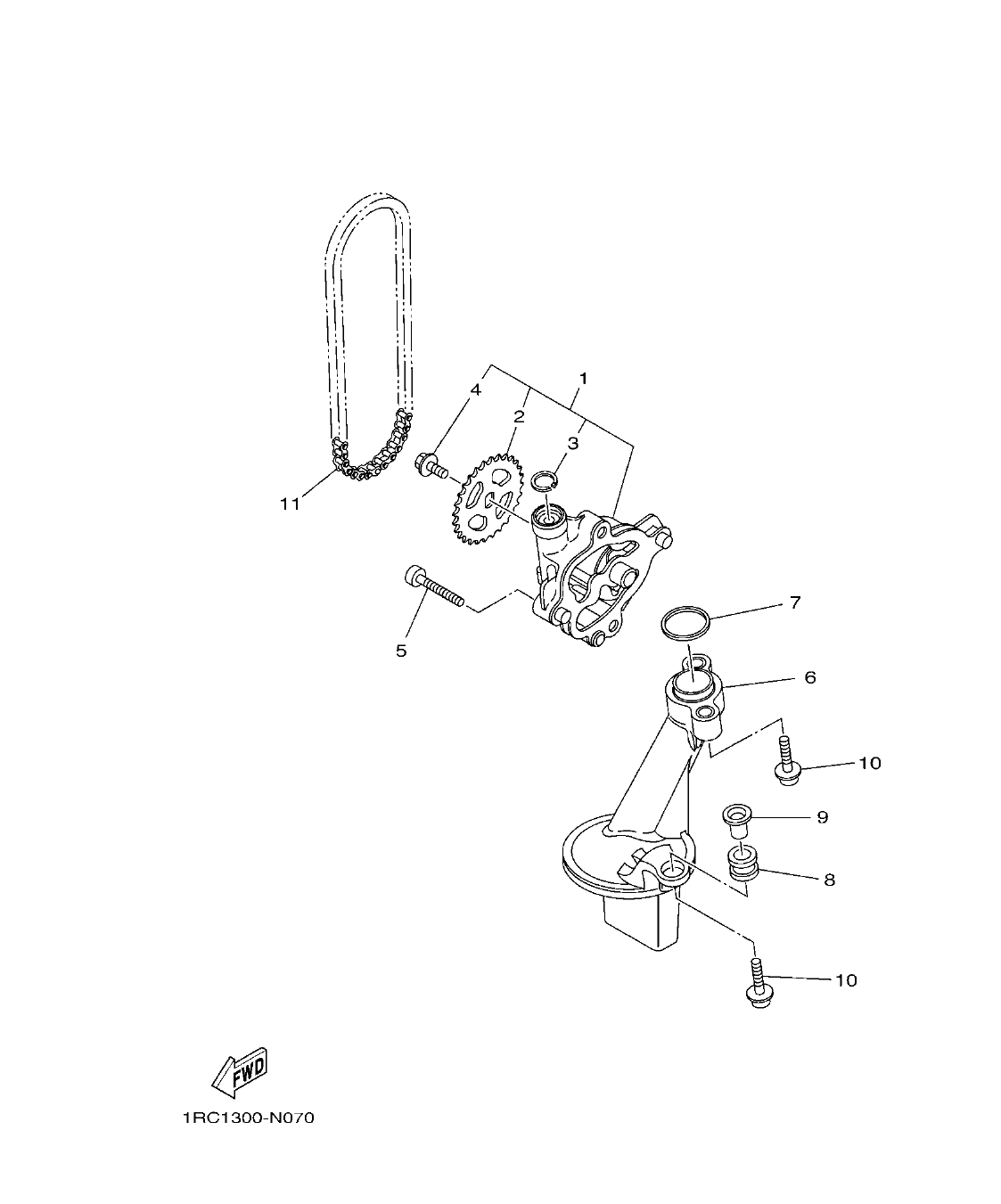

Section 7: OIL PUMP (v2)
Model code: B562
Parts list
Section 7
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
1RC-13300-00
OIL PUMP ASSY
|
1 | |
| 2 |
1RC-13355-00
.SPROCKET, DRIVEN
|
1 | |
| 3 |
99009-15500
.CIRCLIP
|
1 | |
| 4 |
90105-06066
.BOLT, FLANGE
|
1 | |
| 5 |
91312-06035
BOLT
|
4 | |
| 6 |
1RC-13410-00
STRAINER HOUSING ASSY
|
1 |
49.91 AED
Check price & stock on WhatsApp
|
| 7 |
93210-22001
O-RING
|
1 | |
| 8 |
90480-13010
GROMMET
|
1 | |
| 9 |
5VY-13117-10
COLLAR, DISTANCE
|
1 | |
| 10 |
90110-06173
BOLT, HEXAGON SOCKET HEAD
|
3 | |
| 11 |
94581-79066
CHAIN (DID 25H)
|
1 |
57.36 AED
Check price & stock on WhatsApp
|
