MT09TRP

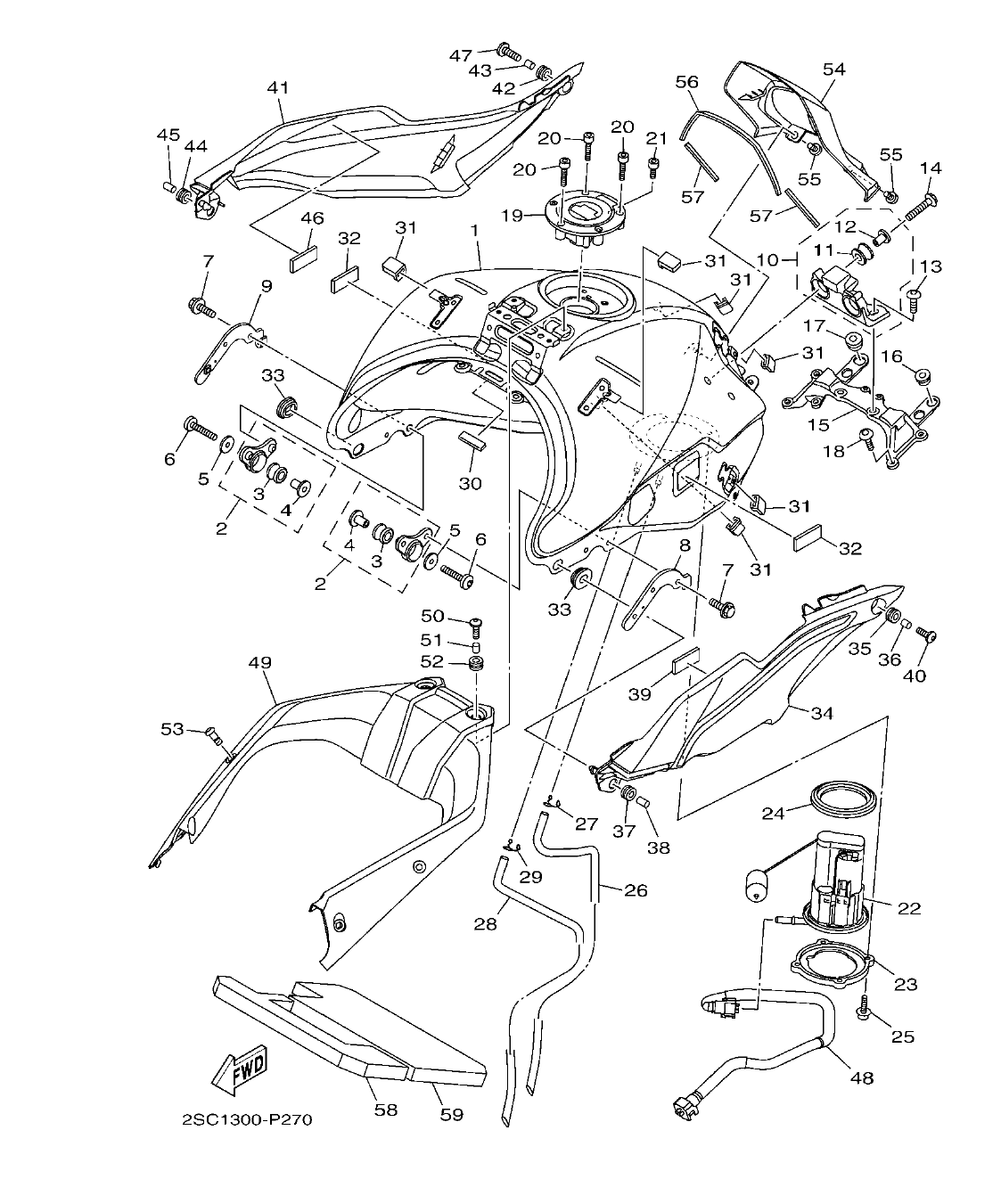

Section 27: FUEL TANK (v2)
Model code: B562
Parts list
Section 27
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
2PP-YK241-00-UJ
FUEL TANK COMP.
UR FOR RW
|
1 | |
| 1 |
2PP-YK241-00-P5
FUEL TANK COMP.
UR FOR DPBSS
|
1 | |
| 2 |
23P-24104-01
TANK BRACKET ASSY
|
2 | |
| 3 |
90480-18008
.GROMMET
|
1 | |
| 4 |
90387-06266
.COLLAR
|
1 | |
| 5 |
90201-06072
WASHER, PLATE
|
2 | |
| 6 |
92012-06035
BOLT, BUTTON HEAD
|
2 | |
| 7 |
90119-06200
BOLT, WITH WASHER
|
4 | |
| 8 |
2PP-2411F-00
PLATE, FITTING
|
1 | |
| 9 |
2PP-2411L-00
HOOK TANK FITTING
|
1 | |
| 10 |
2PP-24105-00
TANK BRACKET ASSY 2
|
1 | |
| 11 |
3D7-24339-00
.GROMMET
|
2 | |
| 12 |
90387-06136
.COLLAR
|
2 |
4.47 AED
Check price & stock on WhatsApp
|
| 13 |
90111-06136
BOLT,HEX. SOCKET BUTTON
|
2 |
2.98 AED
Check price & stock on WhatsApp
|
| 14 |
95812-06025
BOLT, FLANGE
|
2 | |
| 15 |
2PP-2413Y-00
BRACKET, TANK FITTING
|
1 | |
| 16 |
90480-13398
GROMMET
|
1 | |
| 17 |
90480-01559
GROMMET
|
1 |
9.68 AED
Check price & stock on WhatsApp
|
| 18 |
92017-06020
BOLT, BUTTON HEAD
|
4 | |
| 19 |
39P-24602-10
CAP ASSY
|
1 | |
| 20 |
90110-05112
BOLT, HEXAGON SOCKET HEAD
|
3 |
7.45 AED
Check price & stock on WhatsApp
|
| 21 |
91312-05010
BOLT
|
1 | |
| 22 |
1RC-13907-00
FUEL PUMP COMP.
|
1 | |
| 23 |
1RC-24491-00
BRACKET, FUEL PUMP
|
1 | |
| 24 |
1RC-24486-00
O-RING
|
1 | |
| 25 |
90110-05028
BOLT, HEXAGON SOCKET HEAD
|
4 | |
| 26 |
1RC-24315-00
PIPE 5
|
1 | |
| 27 |
90467-09006
CLIP
|
1 | |
| 28 |
1RC-24316-00
PIPE 6
|
1 | |
| 29 |
90467-09006
CLIP
|
1 | |
| 30 |
2S3-28347-00
MOLE 3
|
1 | |
| 31 |
5PW-2411J-01
DAMPER, SIDE COVER
|
6 | |
| 32 |
2PP-2411G-00
HOOK, SIDE COVER 1
|
2 | |
| 33 |
90480-01558
GROMMET
|
2 | |
| 34 |
2PP-24129-00
COVER, SIDE 1
|
1 | |
| 35 |
90480-13018
GROMMET
|
1 | |
| 36 |
90387-0611W
COLLAR
|
1 | |
| 37 |
90480-13018
GROMMET
|
1 | |
| 38 |
90387-06026
COLLAR
|
1 | |
| 39 |
2PP-2411G-00
HOOK, SIDE COVER 1
|
1 | |
| 40 |
90111-05007
BOLT,HEX. SOCKET BUTTON
|
1 | |
| 41 |
2PP-24139-00
COVER, SIDE 2
|
1 | |
| 42 |
90480-13018
GROMMET
|
1 | |
| 43 |
90387-0611W
COLLAR
|
1 | |
| 44 |
90480-13018
GROMMET
|
1 | |
| 45 |
90387-06026
COLLAR
|
1 | |
| 46 |
2PP-2411G-00
HOOK, SIDE COVER 1
|
1 | |
| 47 |
90111-05007
BOLT,HEX. SOCKET BUTTON
|
1 | |
| 48 |
1RC-13971-10
PIPE, FUEL 1
|
1 | |
| 49 |
2PP-241B1-00
COVER, TANK
|
1 | |
| 50 |
90111-05007
BOLT,HEX. SOCKET BUTTON
|
2 | |
| 51 |
90387-0611W
COLLAR
|
2 | |
| 52 |
90480-13018
GROMMET
|
2 | |
| 53 |
14B-28386-00
HEAD
|
4 |
19.37 AED
Check price & stock on WhatsApp
|
| 54 |
2PP-24141-00
PROTECTOR, FUEL TANK
|
1 | |
| 55 |
90111-05002
BOLT,HEX. SOCKET BUTTON
|
2 |
2.98 AED
Check price & stock on WhatsApp
|
| 56 |
2C0-2414H-00
DAMPER, PLATE 1
|
1 | |
| 57 |
3P6-2414J-00
DAMPER, PLATE 2
|
2 | |
| 58 |
2PP-2414H-00
DAMPER, PLATE 1
|
1 | |
| 59 |
2PP-2414J-00
DAMPER, PLATE 2
|
1 |
17.88 AED
Check price & stock on WhatsApp
|
