MT09TRP
Section 19: SHIFT SHAFT (v2)
Model code: B562

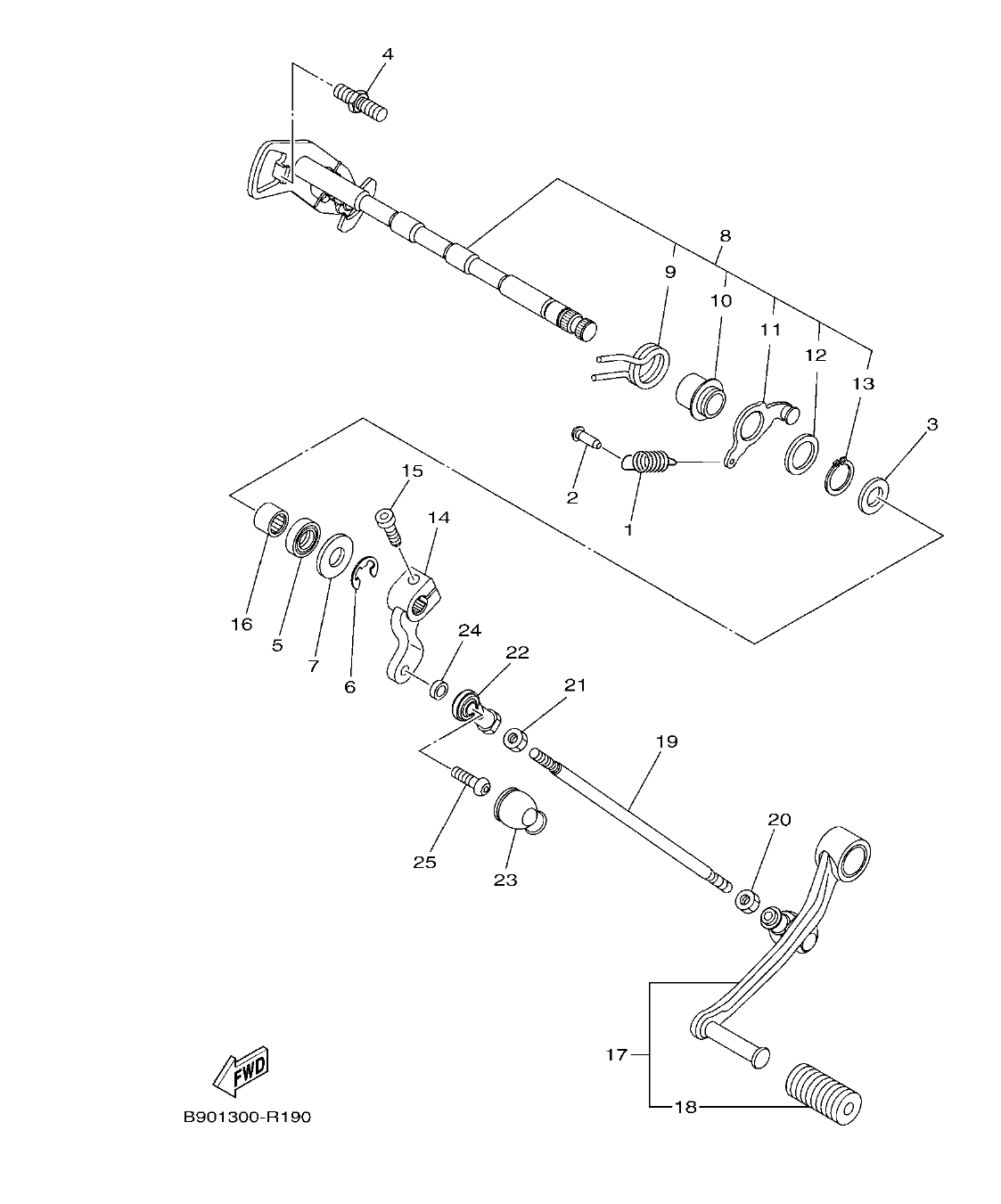

Parts list
Section 19
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
90506-18021
SPRING, TENSION
|
1 | |
| 2 |
132-16346-00
HOOK, SPRING
|
1 | |
| 3 |
90201-127E1
WASHER, PLATE
|
1 | |
| 4 |
1D7-18127-00
STOPPER, SCREW
|
1 | |
| 5 |
93102-12106
OIL SEAL (SD 12-22-5 HS)
|
1 | |
| 6 |
99002-10600
CIRCLIP
|
1 | |
| 7 |
90201-12575
WASHER, PLATE
|
1 | |
| 8 |
1RC-18101-01
SHIFT SHAFT ASSY
|
1 | |
| 9 |
90508-32141
.SPRING, TORSION
|
1 | |
| 10 |
2C0-18175-00
.SPACER
|
1 | |
| 11 |
1RC-18140-00
.STOPPER LEVER ASSY
|
1 | |
| 12 |
90201-177G4
.WASHER, PLATE
|
1 | |
| 13 |
99009-17400
.CIRCLIP
|
1 | |
| 14 |
1RC-18112-00
ARM, SHIFT
|
1 | |
| 15 |
91312-06020
BOLT
|
1 | |
| 16 |
93317-11295
BEARING
|
1 | |
| 17 |
1RC-18110-00
SHIFT PEDAL ASSY
|
1 |
176.54 AED
Check price & stock on WhatsApp
|
| 18 |
5EB-18113-00
.COVER, SHIFT PEDAL
|
1 |
16.39 AED
Check price & stock on WhatsApp
|
| 19 |
3VD-18115-00
ROD, SHIFT
|
1 | |
| 20 |
90170-06228
NUT (COUNTER CLOCKWISE)
|
1 | |
| 21 |
95304-06700
NUT
|
1 | |
| 22 |
5VX-18116-00
JOINT, ROD 1
|
1 | |
| 23 |
5VX-18154-00
COVER, DUST
|
1 |
1.68 AED
Check price & stock on WhatsApp
|
| 24 |
90387-06372
COLLAR
|
1 | |
| 25 |
90111-06098
BOLT,HEX. SOCKET BUTTON
|
1 |
