F50DET'04

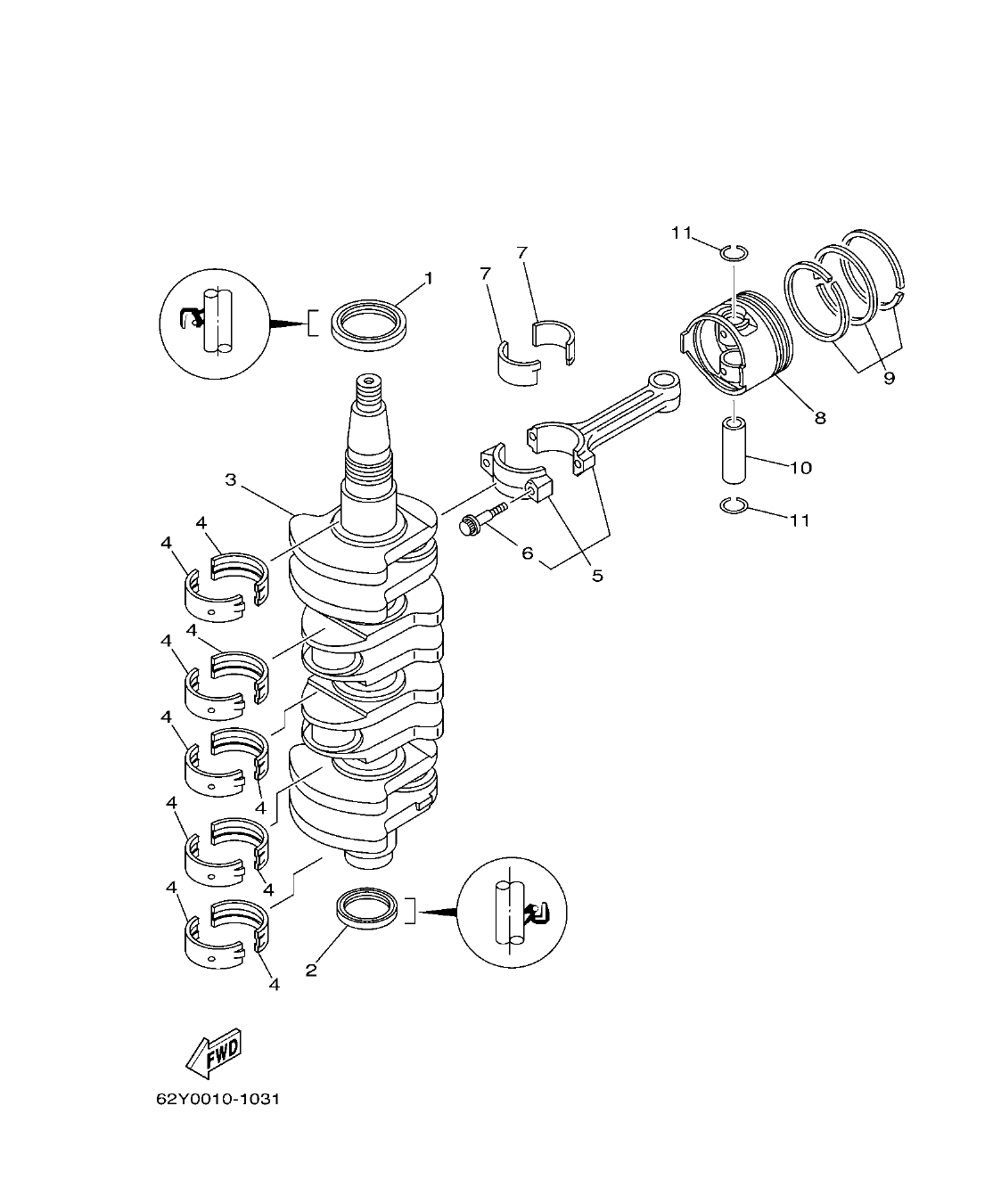

Section 3: CRANKSHAFT & PISTON CIGUENAL & PISTON (v2)
Model code: 60A4
Parts list
Section 3
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
93102-43M42
OIL SEAL
|
1 | |
| 2 |
93101-35002
OIL SEAL
|
1 | |
| 3 |
69W-11411-00
CRANKSHAFT
|
1 | |
| 4 |
62Y-11416-30
PLANE BEARING, CRANKSHAFT 1
UR YELLOW
|
10 | |
| 4 |
62Y-11416-40
PLANE BEARING, CRANKSHAFT 1
UR RED
|
10 | |
| 4 |
62Y-11416-50
PLANE BEARING, CRANKSHAFT 1
UR PINK
|
10 | |
| 4 |
62Y-11416-60
PLANE BEARING, CRANKSHAFT 1
UR GREEN
|
10 | |
| 5 |
62Y-11650-10
CONNECTING ROD ASSY
|
4 | |
| 6 |
62Y-11654-00
.BOLT, CONNECTING ROD
|
2 | |
| 7 |
62Y-11656-40
PLANE BEARING, CONNECTING ROD
UR RED
|
8 | |
| 7 |
62Y-11656-60
PLANE BEARING, CONNECTING ROD
UR GREEN
|
8 | |
| 7 |
62Y-11656-50
PLANE BEARING, CONNECTING ROD
UR PINK
|
8 | |
| 7 |
62Y-11656-30
PLANE BEARING, CONNECTING ROD
UR YELLOW
|
8 | |
| 8 |
62Y-11631-10-96
PISTON (STD)
|
4 | |
| 8 |
62Y-11635-10
PISTON (0.25MM O/S)
AP
|
4 | |
| 8 |
62Y-11636-10
PISTON (0.50MM O/S)
AP
|
4 |
154.19 AED
Check price & stock on WhatsApp
|
| 9 |
64J-11603-00
PISTON RING SET (STD)
|
4 | |
| 9 |
64J-11604-00
PISTON RING SET (0.25MM O/S)
AP
|
4 | |
| 9 |
64J-11605-00
PISTON RING SET (0.50MM O/S)
AP
|
4 | |
| 10 |
62Y-11633-00
PIN, PISTON
|
4 | |
| 11 |
93450-17129
CIRCLIP
|
8 |
