F50DET'04

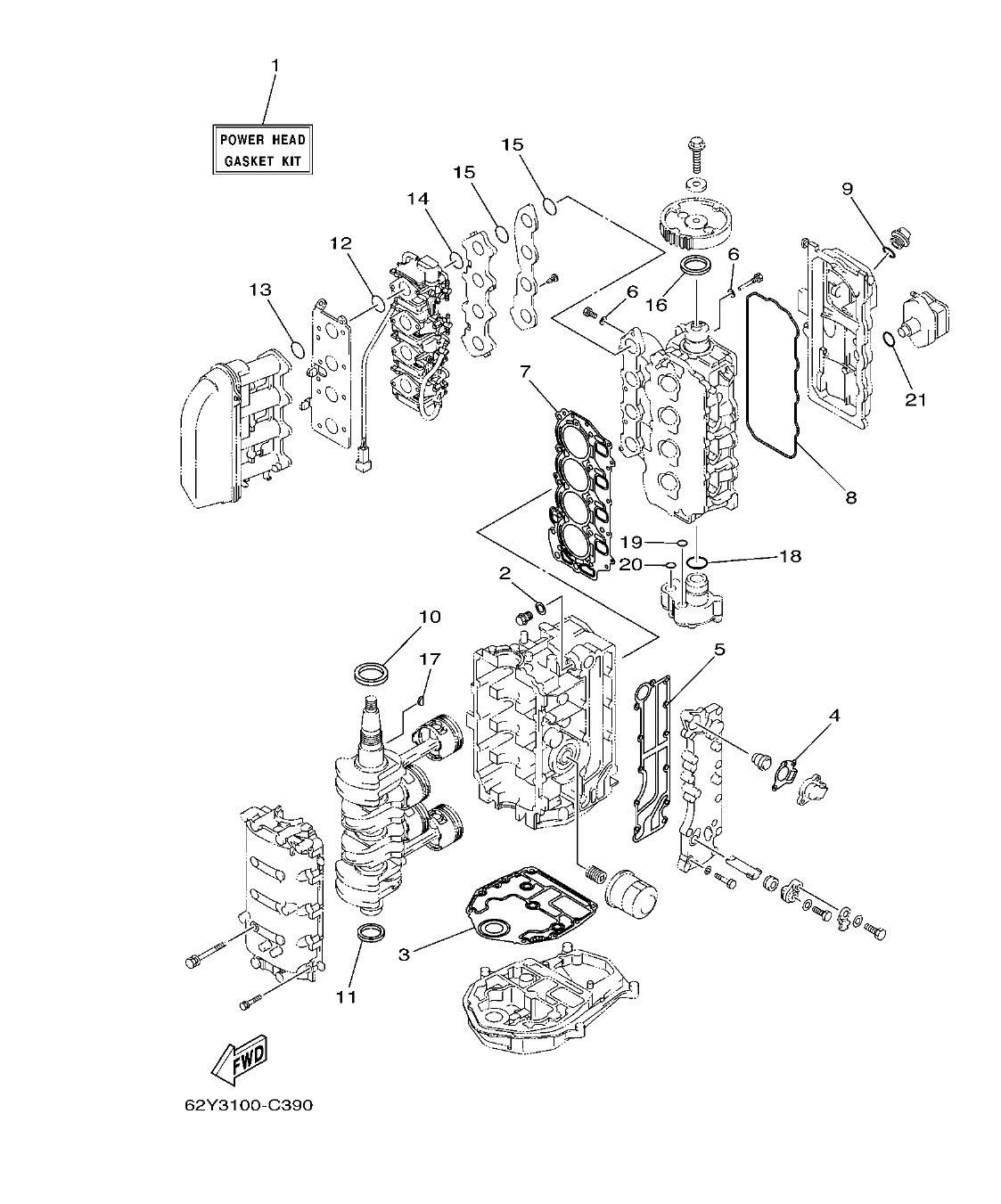

Section 30: REPAIR KIT 1 ESTUCHE REPARATION 1 (v2)
Model code: 60A4
Parts list
Section 30
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
62Y-W0001-10
POWER HEAD GASKET KIT
|
1 | |
| 2 |
90430-14115
.GASKET
|
1 |
3.72 AED
Check price & stock on WhatsApp
|
| 3 |
67C-11351-01
.GASKET, CYLINDER
|
1 | |
| 4 |
62Y-12414-00
.GASKET, COVER
|
1 | |
| 5 |
62Y-41114-00
.GASKET, EXHAUST OUTER COVER
|
1 | |
| 6 |
90430-06014
.GASKET
|
5 | |
| 7 |
62Y-11181-00
.GASKET, CYLINDER HEAD 1
|
1 | |
| 8 |
62Y-11356-00
.SEAL, CYLINDER 2
|
1 | |
| 9 |
93210-24M79
.O-RING
|
1 | |
| 10 |
93102-43M42
.OIL SEAL
|
1 | |
| 11 |
93101-35002
.OIL SEAL
|
1 | |
| 12 |
93210-35M86
.O-RING
|
4 | |
| 13 |
93210-38MH3
.O-RING
|
4 | |
| 14 |
93210-30MH4
.O-RING
|
4 | |
| 15 |
93210-35M86
.O-RING
|
8 | |
| 16 |
93102-37M40
.OIL SEAL
|
1 | |
| 17 |
90280-04M06
.KEY, WOODRUFF
|
1 | |
| 18 |
93210-33MH2
.O-RING
|
1 | |
| 19 |
93210-12MG9
.O-RING
|
1 | |
| 20 |
93210-14515
.O-RING
|
1 | |
| 21 |
93210-24M79
.O-RING
|
1 |
