F50DET'04
Section 20: POWER TRIM & TILT ASSY 2 COMPONER Y PODER VARILLA 2 (v2)
Model code: 60A4
Section 20 β POWER TRIM & TILT ASSY 2 COMPONER Y PODER VARILLA 2
F50DET'04
100%

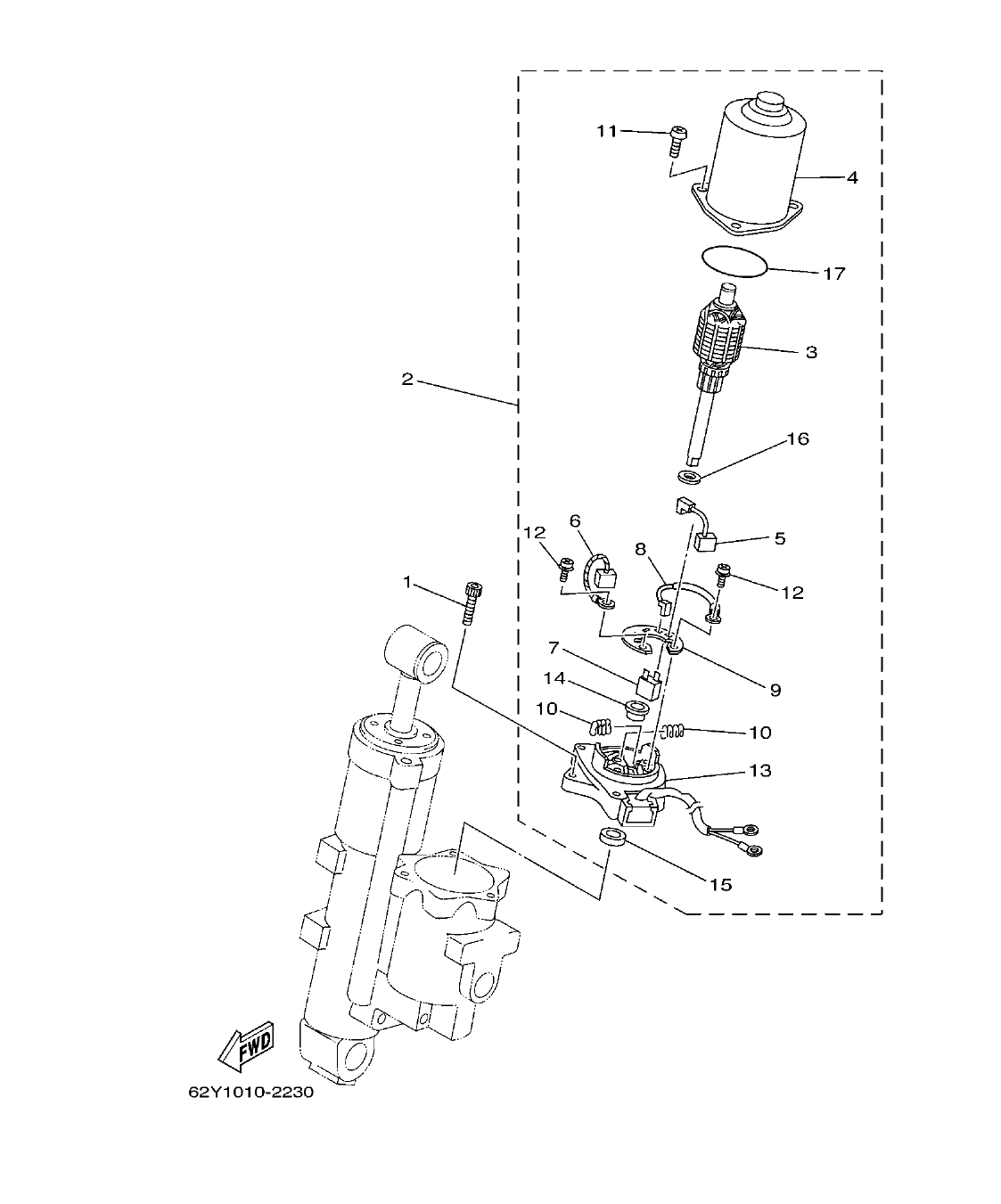

Diagram image
Open full size
Parts list
Section 20
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
62X-43888-00
BOLT, SOCKET
|
3 | |
| 2 |
62Y-43880-01
MOTOR ASSY
|
1 | |
| 3 |
62Y-43805-00
.ARMATURE ASSY
|
1 | |
| 4 |
62X-43804-01
.STATOR ASSY
|
1 | |
| 5 |
62Y-43892-00
.BRUSH 2
|
1 | |
| 6 |
62Y-43891-00
.BRUSH 1
|
1 |
47.96 AED
Check price & stock on WhatsApp
|
| 7 |
62Y-82181-01
.CIRCUIT BREAKER COMP.
|
1 | |
| 8 |
62X-43807-00
.WIRE SUB ASSY
|
1 | |
| 9 |
69W-4380F-00
.PLATE, BRUSH HOLDER
|
1 | |
| 10 |
62X-4386K-00
.SPRING, BRUSH
|
2 | |
| 11 |
97880-05020
.SCREW, PAN HEAD
|
3 | |
| 12 |
97607-04212
.SCREW,WITH WASHER
|
2 | |
| 13 |
62Y-43881-00
.FRAME, END
|
1 | |
| 14 |
62X-4380H-00
.METAL
|
1 | |
| 15 |
93102-08414
.OIL SEAL
|
1 |
43.54 AED
Check price & stock on WhatsApp
|
| 16 |
90201-083J8
.WASHER, PLATE
|
1 | |
| 17 |
93210-52449
.O-RING
|
1 |
