F50DET'04

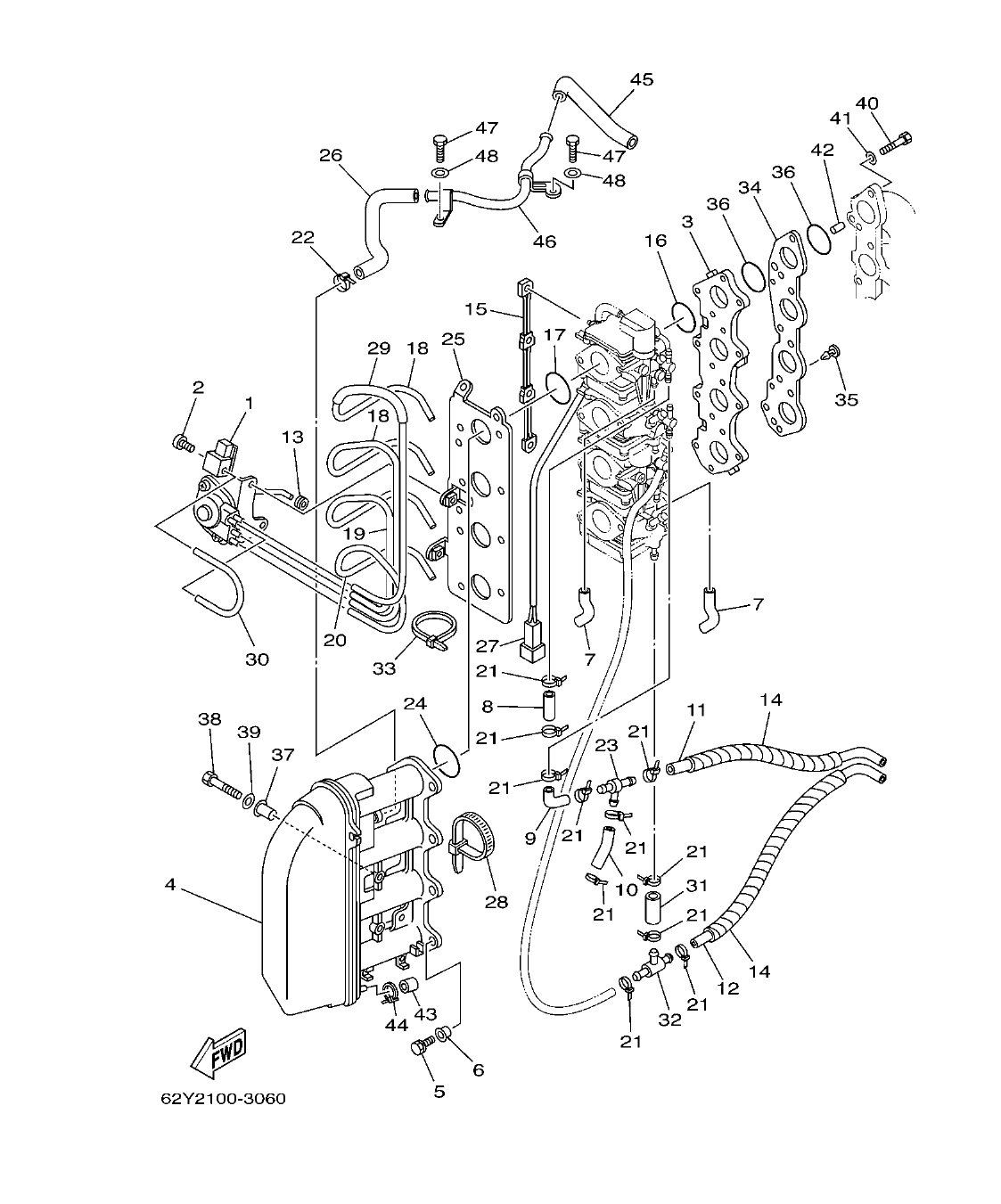

Section 6: INTAKE ADMISION (v2)
Model code: 60A4
Parts list
Section 6
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
62Y-14369-30
DIAPHRAGM ASSY 2
|
1 | |
| 2 |
650-14327-01
SCREW
|
3 | |
| 3 |
62Y-13586-30
JOINT, CARBURETOR 1
|
1 | |
| 4 |
62Y-14440-00
SILENCER ASSY, INTAKE
|
1 | |
| 5 |
97595-06590
BOLT, WITH WASHER
|
8 | |
| 6 |
90387-06M70
COLLAR
|
8 | |
| 7 |
62Y-24312-00
PIPE 2
|
2 | |
| 8 |
62Y-24313-30
PIPE 3
|
1 | |
| 9 |
62Y-24313-40
PIPE 3
|
1 | |
| 10 |
62Y-24313-50
PIPE 3
|
1 | |
| 11 |
62Y-24313-61
PIPE 3
|
1 | |
| 12 |
62Y-24313-70
PIPE 3
|
1 | |
| 13 |
62Y-41262-30
JOINT, CHOKE LEVER
|
1 | |
| 14 |
69W-24313-80
PIPE 3
|
2 | |
| 15 |
64J-14585-00
ROD, CHOKE
|
1 | |
| 16 |
93210-30MH4
O-RING
|
4 | |
| 17 |
93210-35M86
O-RING
|
4 | |
| 18 |
64J-14349-11
PIPE
|
2 | |
| 19 |
64J-14349-21
PIPE
|
1 | |
| 20 |
64J-14349-31
PIPE
|
1 | |
| 21 |
90465-11M10
CLAMP
|
12 | |
| 22 |
90465-13M36
CLAMP
|
1 | |
| 23 |
62Y-24378-00
PIPE, JOINT 4
|
1 | |
| 24 |
93210-38MH3
O-RING
|
4 | |
| 25 |
62Y-14291-30
BRACKET 1
|
1 | |
| 26 |
62Y-1532B-00
PIPE, BREATHER
|
1 | |
| 27 |
62Y-82509-00
WIRE, SUB LEAD
|
1 | |
| 28 |
62Y-82544-00
CLAMP
|
1 | |
| 29 |
64J-14349-40
PIPE
|
1 | |
| 30 |
64J-14349-50
PIPE
|
1 | |
| 31 |
62Y-24314-00
PIPE 4
|
1 | |
| 32 |
62Y-24378-00
PIPE, JOINT 4
|
1 | |
| 33 |
62Y-24135-00
CLAMP 1
|
1 | |
| 34 |
62Y-14271-00
INSULATOR
|
1 | |
| 35 |
90338-04M17
PLUG
|
2 | |
| 36 |
93210-35M86
O-RING
|
8 | |
| 37 |
90387-06M15
COLLAR
|
2 | |
| 38 |
97095-06030
BOLT
|
2 | |
| 39 |
92995-06600
WASHER
|
2 | |
| 40 |
97095-06025
BOLT
|
8 | |
| 41 |
92995-06600
WASHER
|
8 | |
| 42 |
93608-16M16
PIN, DOWEL
|
2 | |
| 43 |
62Y-13448-00
CAP
|
1 | |
| 44 |
90465-11M10
CLAMP
|
1 | |
| 45 |
62Y-1531A-00
HOSE, BREATHER 1
|
1 | |
| 46 |
62Y-15373-10
PIPE, BREATHER
|
1 | |
| 47 |
97095-06016
BOLT
|
2 | |
| 48 |
92995-06600
WASHER
|
2 |
