F50DET'04
Section 24: LOWER CASING & DRIVE 2 IMPULSOR E INFERIOR 2 (v2)
Model code: 60A4
Section 24 β LOWER CASING & DRIVE 2 IMPULSOR E INFERIOR 2
F50DET'04
100%

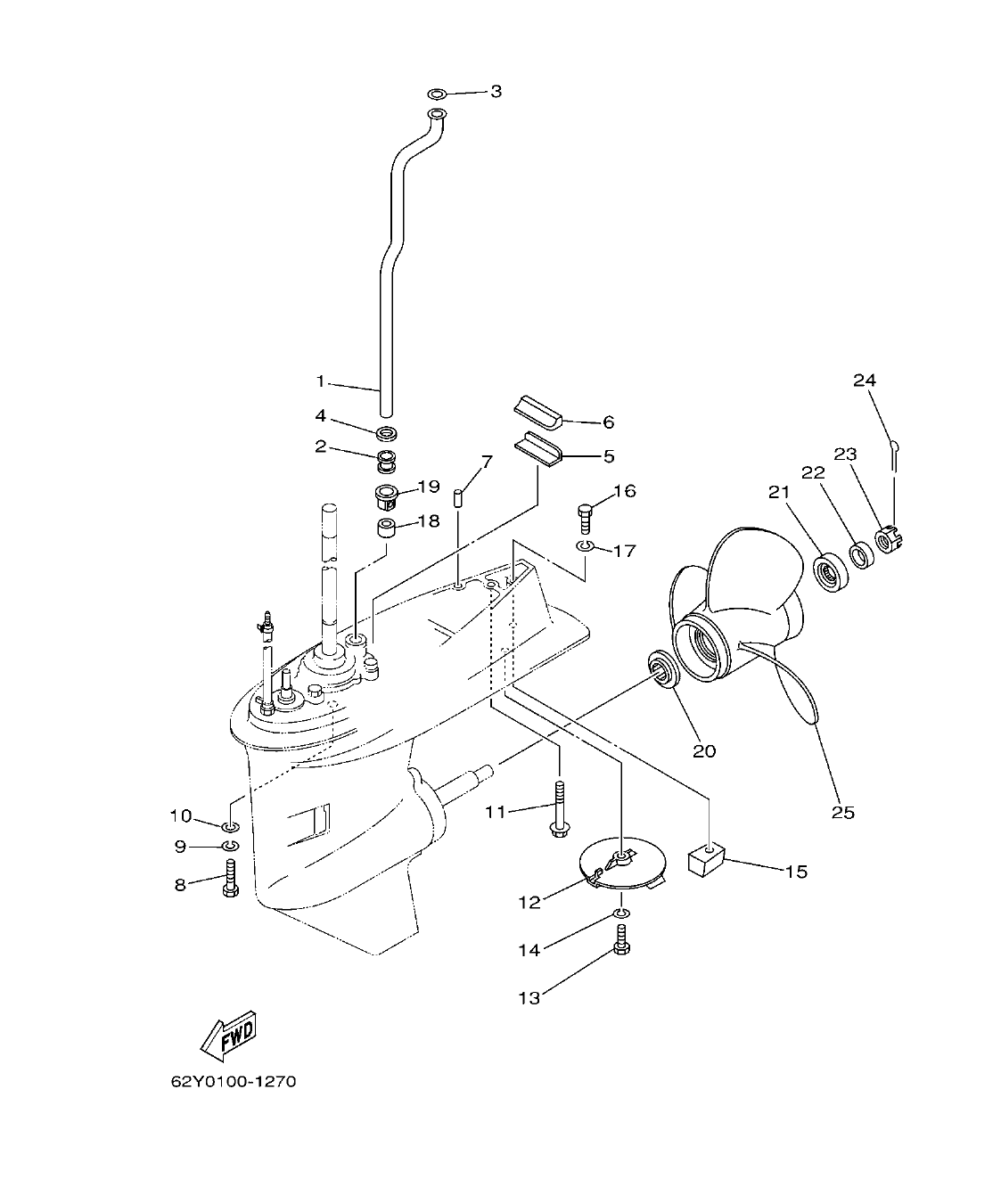

Diagram image
Open full size
Parts list
Section 24
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
62Y-44361-00
TUBE, WATER
|
1 | |
| 2 |
663-44367-00
DAMPER, WATER SEAL
|
1 | |
| 3 |
90202-12060
WASHER, PLATE
|
1 | |
| 4 |
90430-12072
GASKET
|
1 | |
| 5 |
663-45376-00-94
GUIDE, SEAL DAMPER
|
1 | |
| 6 |
63D-45375-00
DAMPER, SEAL
|
1 | |
| 7 |
93606-12019
PIN, DOWEL
|
2 | |
| 8 |
97075-10040
BOLT
|
4 | |
| 9 |
92995-10100
WASHER
|
4 | |
| 10 |
92995-10600
WASHER
|
4 | |
| 11 |
90119-08M84
BOLT, WITH WASHER
|
1 | |
| 12 |
67C-45371-00
TAB-TRIM
|
1 | |
| 13 |
97095-08025
BOLT
|
1 | |
| 14 |
92995-08100
WASHER
|
1 | |
| 15 |
67C-45251-00
ANODE
|
1 | |
| 16 |
97095-08035
BOLT
|
1 | |
| 17 |
92995-08100
WASHER
|
1 | |
| 18 |
663-44366-00
DAMPER, WATER SEAL
|
1 | |
| 19 |
63D-44312-00
COVER, WATER PUMP HOUSING
|
1 | |
| 20 |
663-45987-02
SPACER
|
1 | |
| 21 |
66T-45997-00
SPACER
|
1 | |
| 22 |
90389-22M01
BUSH
|
1 | |
| 23 |
90171-16011
NUT, CASTLE
|
1 | |
| 24 |
91490-30025
PIN, COTTER
|
1 | |
| 25 |
6H5-45958-00-EL
PROPELLER (3X10-1/4"X14"-G)
UR WITH LIP CUP
|
1 | |
| 25 |
6H5-45952-00-EL
PROPELLER (3X10-5/8"X12"-G)
UR WITH LIP CUP
|
1 | |
| 25 |
6H5-45945-00-EL
PROPELLER (3X10-3/8"X13"-G)
UR WITH LIP CUP
|
1 | |
| 25 |
6H5-45943-00-EL
PROPELLER (3X10"X15"-G)
UR WITH LIP CUP
|
1 | |
| 25 |
69W-45947-00-EL
PROPELLER (3X11-5/8"X11"-G)
UR
|
1 | |
| 25 |
69W-45945-00-EL
PROPELLER (3X11-1/8"X13"-G)
UR
|
1 | |
| 25 |
697-45970-00-98
PROPELLER (3X11-1/4"X14"-G)
UR
|
1 | |
| 25 |
663-45978-00-98
PROPELLER (3X10-1/4"X16"-G)
UR
|
1 | |
| 25 |
663-45976-00-98
PROPELLER (3X10-1/4"X15"-G)
UR
|
1 | |
| 25 |
663-45974-60-98
PROPELLER (3X11-1/2"X13"-G)
UR
|
1 | |
| 25 |
663-45974-02-98
PROPELLER (3X10-5/8"X13"-G)
UR
|
1 | |
| 25 |
663-45972-60-98
PROPELLER (3X12"X11"-G)
UR
|
1 | |
| 25 |
663-45970-60-98
PROPELLER (3X11-3/4"X12"-G)
UR
|
1 | |
| 25 |
663-45958-01-EL
PROPELLER (3X11-1/4"X14"-G)
UR
|
1 | |
| 25 |
663-45956-01-EL
PROPELLER (3X12-1/4"X9"-G)
UR
|
1 | |
| 25 |
663-45952-02-EL
PROPELLER (3X11-3/8"X12"-G)
UR
|
1 | |
| 25 |
663-45949-01-EL
PROPELLER (3X10-3/4"X16"-G)
UR
|
1 | |
| 25 |
663-45941-01-EL
PROPELLER (3X10-3/4"X17"-G)
UR
|
1 | |
| 25 |
663-45930-00-98
PROPELLER (3X10-1/4"X14"-G)
UR
|
1 |
