F50DET'04

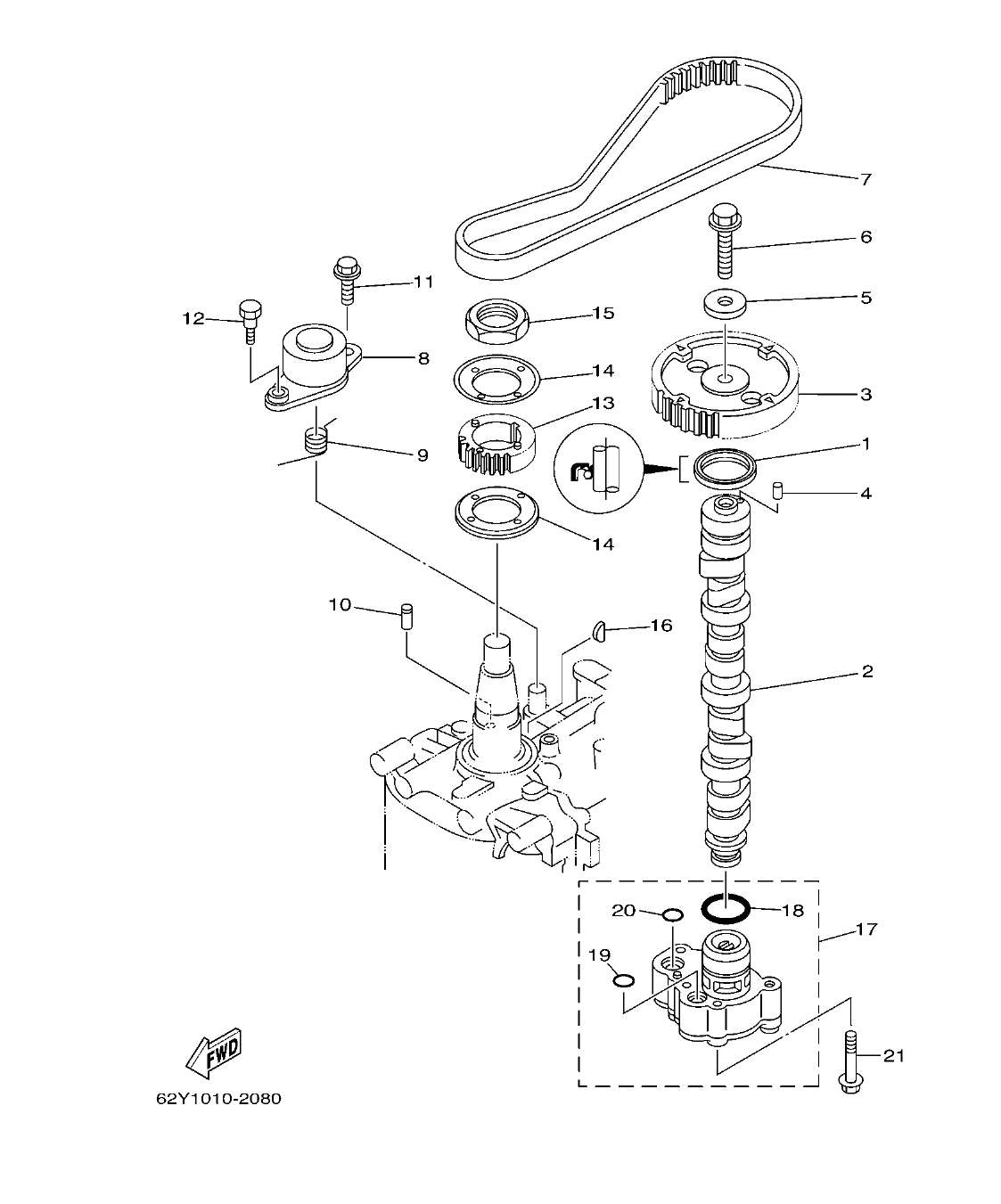

Section 8: OIL PUMP BOMBA DE ACEITE (v2)
Model code: 60A4
Parts list
Section 8
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
93102-37M40
OIL SEAL
|
1 | |
| 2 |
62Y-12171-00
CAMSHAFT 1
|
1 | |
| 3 |
62Y-11537-10
GEAR, DRIVEN
|
1 | |
| 4 |
93605-14143
PIN, DOWEL
|
1 | |
| 5 |
90201-10M06
WASHER, PLATE
|
1 | |
| 6 |
95895-10040
BOLT, FLANGE
|
1 | |
| 7 |
62Y-46241-00
BELT
|
1 | |
| 8 |
62Y-11590-10
TENSIONER ASSY
|
1 | |
| 9 |
90508-20018
SPRING, TORSION
|
1 | |
| 10 |
90249-07M29
PIN
|
1 | |
| 11 |
95895-08020
BOLT, FLANGE
|
1 | |
| 12 |
90109-06M64
BOLT
|
1 | |
| 13 |
62Y-11536-10
GEAR, DRIVE
|
1 | |
| 14 |
62Y-11557-00
WASHER 1
|
2 | |
| 15 |
90170-35M32
NUT
|
1 | |
| 16 |
90280-04M06
KEY, WOODRUFF
|
1 | |
| 17 |
69W-13300-00
OIL PUMP ASSY
|
1 | |
| 18 |
93210-33MH2
.O-RING
|
1 | |
| 19 |
93210-12MG9
.O-RING
|
1 | |
| 20 |
93210-14515
.O-RING
|
1 | |
| 21 |
90119-06025
BOLT, WITH WASHER
|
4 |
