F50DET'04

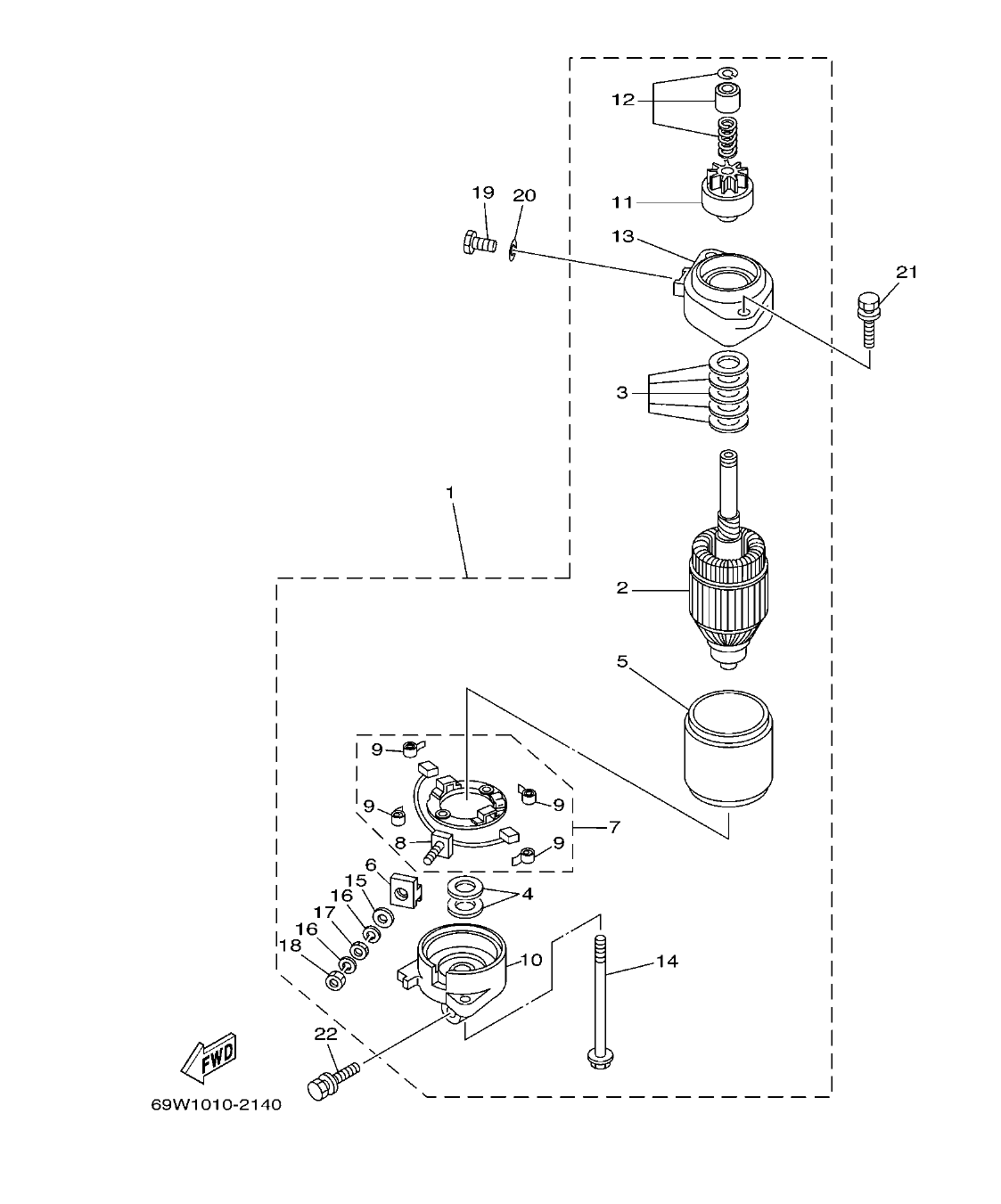

Section 14: STARTING MOTOR MOTOR DE ARRANQUE (v2)
Model code: 60A4
Parts list
Section 14
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
69W-81800-00
STARTING MOTOR ASSY
|
1 | |
| 2 |
6N7-81850-10
.ARMATURE ASSY
|
1 | |
| 3 |
61A-81809-00
.WASHER KIT
|
1 | |
| 4 |
61A-81824-00
.WASHER 2
|
2 | |
| 5 |
6N7-81810-00
.STATOR ASSY
|
1 | |
| 6 |
6K7-8182G-10
.BUSH, TERMINAL
|
1 | |
| 7 |
6N7-81840-00
.BRUSH HOLDER ASSY
|
1 | |
| 8 |
6N7-81801-00
..BRUSH SET
|
1 | |
| 9 |
6N7-81813-00
..SPRING, BRUSH
|
4 | |
| 10 |
6N7-81820-00
.REAR BRACKET ASSY
|
1 | |
| 11 |
69W-81807-00
.GEAR ASSY, STARTING MOTOR
|
1 | |
| 12 |
6N7-81857-00
.RETAINER
|
1 |
289.01 AED
Check price & stock on WhatsApp
|
| 13 |
6N7-81830-00
.FRONT BRACKET ASSY
|
1 | |
| 14 |
6K7-81826-10
.BOLT
|
2 | |
| 15 |
6E5-8182E-10
.WASHER
|
1 | |
| 16 |
6E5-8182F-10
.WASHER
|
2 | |
| 17 |
6E5-8182A-10
.NUT
|
1 | |
| 18 |
6E5-8182K-10
.NUT
|
1 | |
| 19 |
97095-08016
BOLT
|
1 | |
| 20 |
92995-08600
WASHER
|
1 | |
| 21 |
90119-08M76
BOLT, WITH WASHER
|
2 | |
| 22 |
90119-08M77
BOLT, WITH WASHER
|
1 |
