F50DET'04

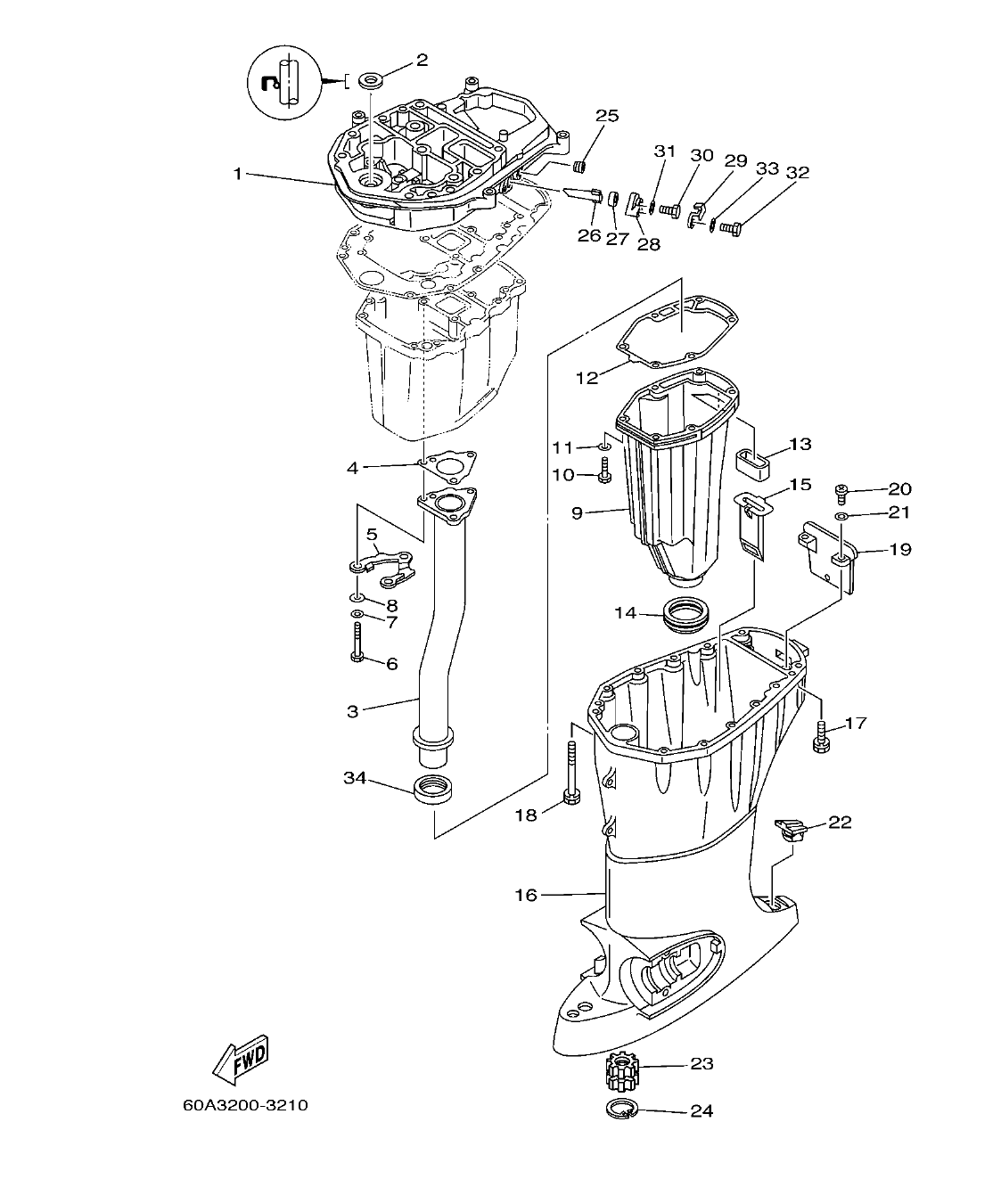

Section 21: UPPER CASING FUNDA SUPERIOR (v2)
Model code: 60A4
Parts list
Section 21
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
64J-41137-01-94
GUIDE, EXHAUST
|
1 | |
| 2 |
93103-18011
OIL SEAL
|
1 |
26.28 AED
Check price & stock on WhatsApp
|
| 3 |
64J-41131-10
MANIFOLD, EXT. 1
|
1 | |
| 4 |
64J-41133-10
GASKET, EXHAUST MANIFOLD 1
|
1 | |
| 5 |
64J-41116-00
PROTECTOR
|
1 | |
| 6 |
97075-06050
BOLT
|
3 | |
| 7 |
92995-06600
WASHER
|
3 | |
| 8 |
90201-06015
WASHER, PLATE
|
3 | |
| 9 |
64J-14711-00-5B
MUFFLER 1
|
1 | |
| 10 |
97075-06025
BOLT
|
6 | |
| 11 |
92995-06600
WASHER
|
6 | |
| 12 |
62Y-41134-01
GASKET, EXHAUST MANIFOLD
|
1 | |
| 13 |
62Y-45127-00
SEAL
|
1 | |
| 14 |
663-45123-00
GASKET, MUFFLER
|
1 | |
| 15 |
64J-77123-00
GUIDE 1
|
1 | |
| 16 |
62Y-45111-21-4D
CASING, UPPER
|
1 | |
| 17 |
90119-08M79
BOLT, WITH WASHER
|
4 | |
| 18 |
90119-08M82
BOLT, WITH WASHER
|
8 | |
| 19 |
62Y-45151-00
COVER, UPPER CASING
|
1 | |
| 20 |
97880-05016
SCREW, PAN HEAD
|
2 | |
| 21 |
92990-05600
WASHER, PLATE
|
2 | |
| 22 |
6H3-45155-00
CAP
|
1 | |
| 23 |
69W-45318-00
BUSHING, DRIVE SHAFT
|
1 | |
| 24 |
93420-36M01
CIRCLIP
|
1 | |
| 25 |
68T-11112-00
PLUG, BLIND 1
|
1 | |
| 26 |
62Y-11325-00
ANODE
|
1 | |
| 27 |
66M-11328-00
GROMMET, ANODE
|
1 | |
| 28 |
66M-11327-00-94
COVER, ANODE
|
1 | |
| 29 |
66M-12535-00
PLATE
|
1 | |
| 30 |
97095-05012
BOLT
|
1 | |
| 31 |
92995-05600
WASHER
|
1 | |
| 32 |
97013-06020
BOLT
|
1 | |
| 33 |
92903-06600
WASHER, PLATE
|
1 | |
| 34 |
64J-46132-10
GASKET 1
|
1 |
