F50DET'04

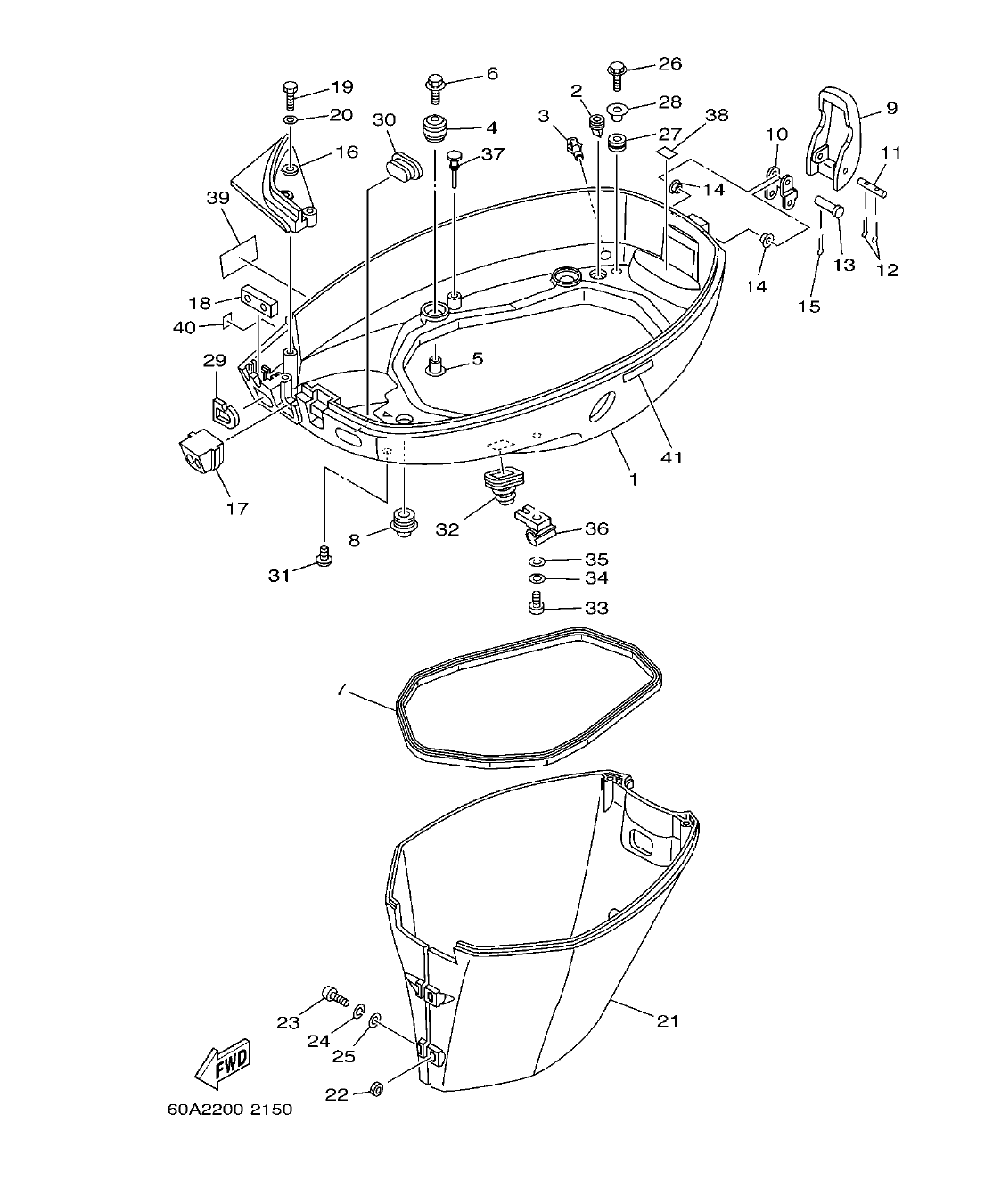

Section 15: BOTTOM COWLING CUBIERTA INFERIOR (v2)
Model code: 60A4
Parts list
Section 15
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
62Y-42711-14-4D
COWLING, BOTTOM
|
1 | |
| 2 |
65W-42717-00
RUBBER, SEAL 2
|
4 | |
| 3 |
6H3-44391-01
NIPPLE, HOSE
|
1 | |
| 4 |
90480-09M12
GROMMET
|
4 | |
| 5 |
90387-06060
COLLAR
|
4 | |
| 6 |
90119-06M08
BOLT, WITH WASHER
|
4 | |
| 7 |
62Y-42716-00
RUBBER, SEAL 1
|
1 | |
| 8 |
6E5-42724-00
GROMMET
|
1 | |
| 9 |
62Y-42828-00-4D
PLATE, CLAMP
|
1 | |
| 10 |
62Y-42815-00
LEVER, CLAMP
|
1 | |
| 11 |
90249-05M30
PIN
|
1 | |
| 12 |
91490-16010
PIN, COTTER
|
2 | |
| 13 |
90240-05M19
PIN, CLEVIS
|
1 | |
| 14 |
90386-05002
BUSH
|
2 | |
| 15 |
91490-16010
PIN, COTTER
|
1 | |
| 16 |
62Y-42738-01-5B
PLATE, FITTING
|
1 | |
| 17 |
62Y-42725-00
GROMMET
|
1 | |
| 18 |
62Y-42727-00
GROMMET
|
1 | |
| 19 |
97095-06020
BOLT
|
3 | |
| 20 |
92995-06600
WASHER
|
3 | |
| 21 |
62Y-42741-00-4D
APRON
|
1 | |
| 22 |
95380-06600
NUT, HEXAGON
|
2 | |
| 23 |
97880-06025
SCREW, PAN HEAD
|
2 | |
| 24 |
92990-06100
WASHER, SPRING
|
2 | |
| 25 |
92990-06600
WASHER, PLATE
|
2 | |
| 26 |
90109-06M80
BOLT
|
2 | |
| 27 |
90480-13M24
GROMMET
|
2 | |
| 28 |
90387-06M43
COLLAR
|
2 | |
| 29 |
61N-24329-00
SEAL
|
1 | |
| 30 |
6H3-42727-00
GROMMET
|
1 | |
| 31 |
90338-05M03
PLUG
|
1 | |
| 32 |
688-42726-10
GROMMET
|
1 | |
| 33 |
97880-06025
SCREW, PAN HEAD
|
1 | |
| 34 |
92990-06100
WASHER, SPRING
|
1 | |
| 35 |
92990-06600
WASHER, PLATE
|
1 | |
| 36 |
90464-09M43
CLAMP
|
1 | |
| 37 |
62Y-42748-00
GROMMET
|
1 | |
| 38 |
62Y-82377-00
LABEL
|
1 | |
| 39 |
62Y-13444-50
MARK
|
1 | |
| 40 |
6A1-28176-00
LABEL, CAUTION
|
1 | |
| 41 |
6E3-8257H-00
PLATE, MARK
|
1 |
