F50DET'04

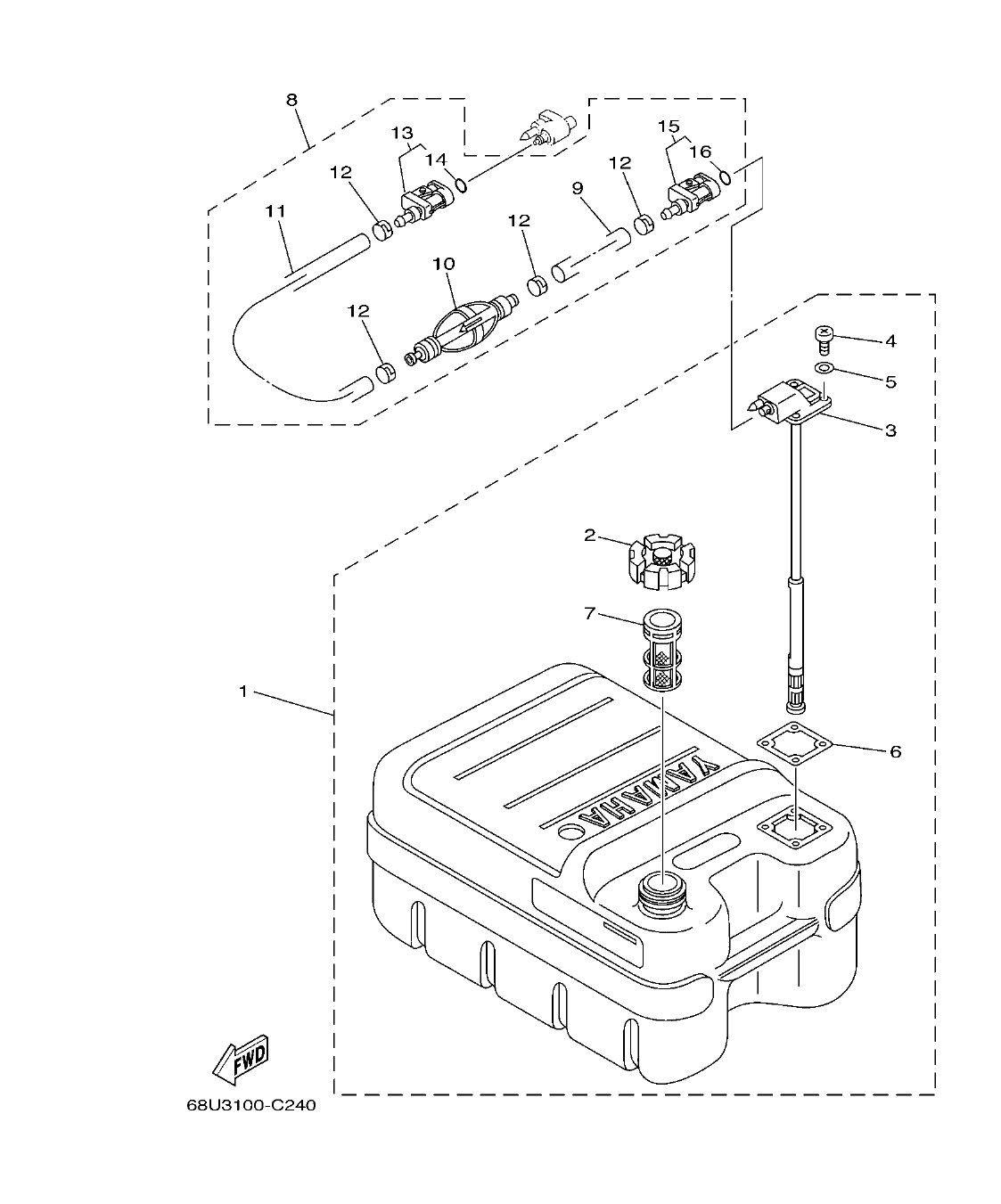

Section 25: FUEL TANK DEPOSITO DE COMBUSTIBLE (v2)
Model code: 60A4
Parts list
Section 25
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6YJ-24201-10
FUEL TANK ASSY (24L)
AP
|
1 | |
| 2 |
6YJ-24610-00
.CAP ASSY
|
1 | |
| 3 |
6Y1-24260-12
.FUEL METER ASSY
WITH INDICATOR
|
1 | |
| 4 |
98586-05016
.SCREW, PAN HEAD
|
4 | |
| 5 |
6Y1-24329-00
.SEAL
|
4 | |
| 6 |
6Y1-24268-00
.GASKET, FUEL METER
|
1 | |
| 7 |
6YJ-24167-00
.STRAINER
|
1 | |
| 8 |
61J-24306-03
FUEL PIPE COMP. 1
AP
|
1 | |
| 9 |
90445-11M06
.HOSE (L2050)
|
1 | |
| 10 |
61J-24360-00
.PRIMER PUMP ASSY
|
1 | |
| 11 |
90445-11M05
.HOSE (L850)
|
1 | |
| 12 |
650-24351-01
.BAND 1
|
4 | |
| 13 |
6G1-24305-04
.FUEL PIPE JOINT COMP. 2
|
1 | |
| 14 |
93210-08287
..O-RING
|
1 | |
| 15 |
6Y1-24305-05
.FUEL PIPE JOINT COMP. 2
|
1 | |
| 16 |
93210-08287
..O-RING
|
1 |
