F50DET'04

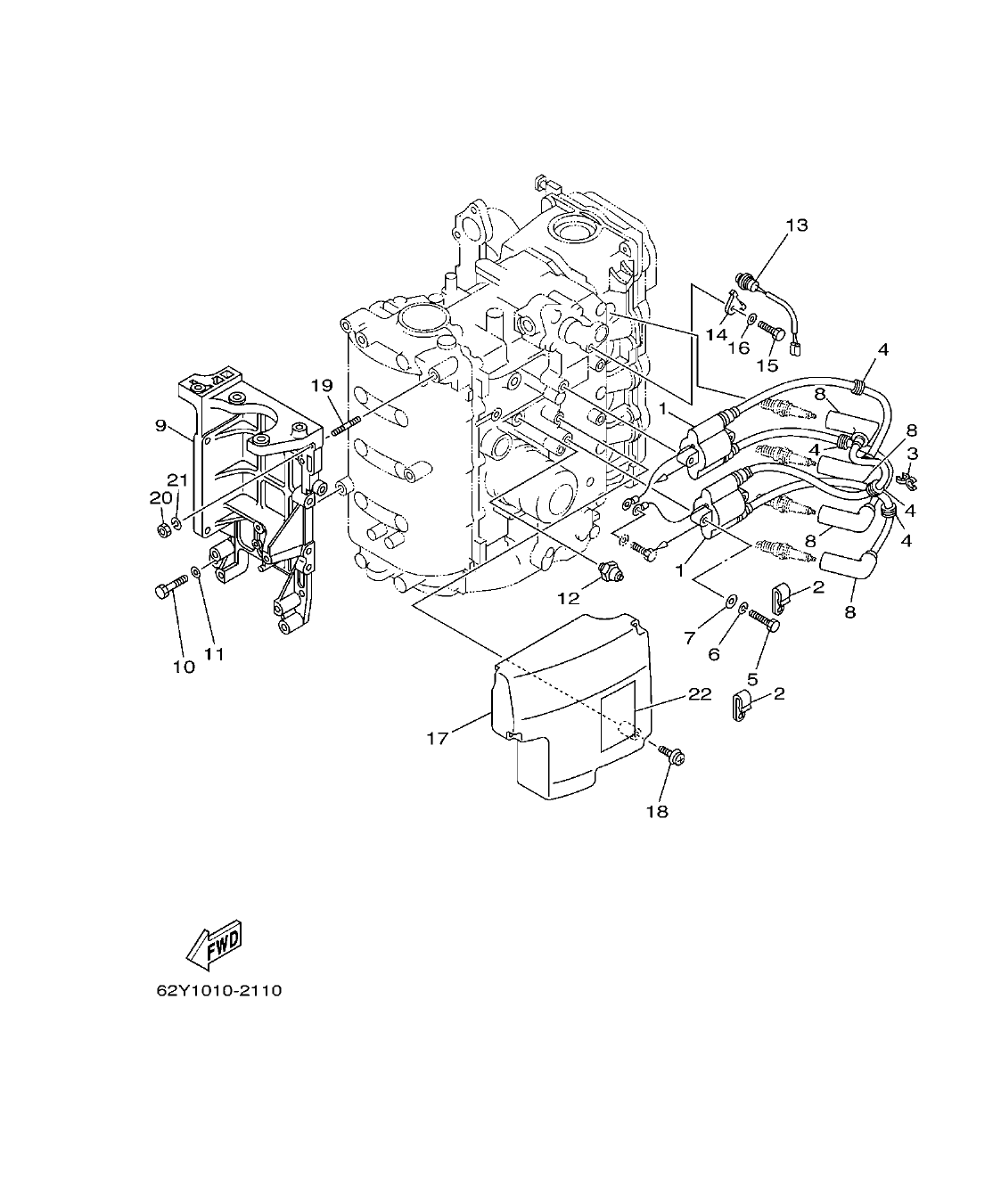

Section 11: ELECTRICAL 1 EQUIPO ELECTRICO 1 (v2)
Model code: 60A4
Parts list
Section 11
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
62Y-85570-00
IGNITION COIL ASSY
|
2 | |
| 2 |
90465-06M90
CLAMP
|
2 | |
| 3 |
90464-07M41
CLAMP
|
1 | |
| 4 |
90480-25161
GROMMET
|
4 | |
| 5 |
97095-06030
BOLT
|
4 | |
| 6 |
92995-06100
WASHER, SPRING
|
4 | |
| 7 |
92995-06600
WASHER
|
4 | |
| 8 |
6G8-82370-30
PLUG CAP ASSY
|
4 | |
| 9 |
62Y-81822-01-94
BRACKET, STARTING MOTOR
|
1 | |
| 10 |
97095-08035
BOLT
|
3 | |
| 11 |
92995-08600
WASHER
|
3 | |
| 12 |
64J-82504-00
OIL PRESSURE SWITCH ASSY
|
1 | |
| 13 |
62Y-82560-01
THERMO SWITCH ASSY
|
1 | |
| 14 |
6E9-82588-00
PLATE
|
1 | |
| 15 |
97095-06012
BOLT
|
1 | |
| 16 |
92995-06600
WASHER
|
1 | |
| 17 |
62Y-85599-00
COVER
|
1 | |
| 18 |
90159-06M08
SCREW, WITH WASHER
|
3 | |
| 19 |
90116-08M14
BOLT, STUD
|
1 | |
| 20 |
95380-08600
NUT
|
1 |
13.41 AED
Check price & stock on WhatsApp
|
| 21 |
92990-08100
WASHER, SPRING
|
1 | |
| 22 |
62Y-83626-00
MARK 6
|
1 |
