bf225ak1
Section E-9-10: CAMSHAFT/ROCKER ARM (v2)

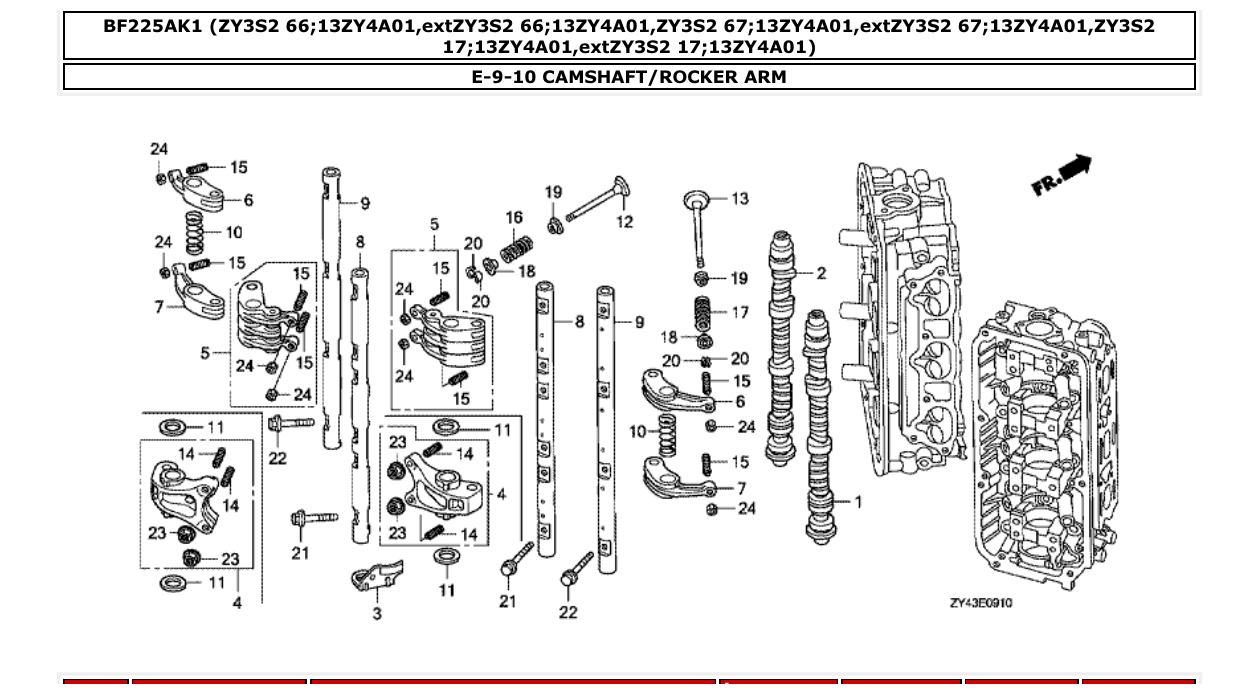

Diagram for section E-9-10: CAMSHAFT/ROCKER ARM.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
14111ZY3A00
CAMSHAFT, R.
|
1 | Ask on WhatsApp |
| 2 |
14211ZY3A00
CAMSHAFT, L.
|
1 | Ask on WhatsApp |
| 3 |
14436ZY3000
ARM, FUEL PUMP ROCKER
|
1 | Ask on WhatsApp |
| 5 |
14620P8AA01
ARM ASSY., INTAKE ROCKER
|
6 | Ask on WhatsApp |
| 6 |
14626P8AA00
ARM COMP. A, EX. ROCKER
|
6 | Ask on WhatsApp |
| 7 |
14627P8AA00
ARM COMP. B, EX. ROCKER
|
6 | Ask on WhatsApp |
| 8 |
14631P8AA00
SHAFT COMP., INTAKE ROCKER ARM
|
2 | Ask on WhatsApp |
| 9 |
14632RCAA00
SHAFT COMP., EX. ROCKER ARM
|
2 | Ask on WhatsApp |
| 10 |
14645P8AA01
SPRING, ROCKER ARM
|
6 | Ask on WhatsApp |
| 12 |
14711PXK000
VALVE, IN.
|
12 | Ask on WhatsApp |
| 13 |
14721RJAE00
VALVE, EX.
|
12 | Ask on WhatsApp |
| 15 |
14744PT0004
SCREW, TAPPET ADJUSTING
|
24 | Ask on WhatsApp |
| 15 |
14744PT0004
SCREW, TAPPET ADJUSTING
|
12 | Ask on WhatsApp |
| 16 |
14761P8EA01
SPRING, IN. VALVE (GRAY) (NIPPON HATSUJO)
|
12 | Ask on WhatsApp |
| 17 |
14762P8EA01
SPRING, EX. VALVE (YELLOW GREEN) (NIPPON HATSUJO)
|
12 | Ask on WhatsApp |
| 18 |
14765PJ7000
RETAINER, VALVE SPRING
|
24 | Ask on WhatsApp |
| 19 |
14775PM3000
SEAT, VALVE SPRING
|
24 | Ask on WhatsApp |
| 20 |
14781PJ7003
COTTER, VALVE (FUJI VALVE)
|
48 | Ask on WhatsApp |
| 21 |
90003P8AA00
BOLT, FLANGE, 8X30
|
12 | Ask on WhatsApp |
| 22 |
90004P8AA00
BOLT, FLANGE, 8X40
|
8 | Ask on WhatsApp |
| 24 |
90206PT0004
NUT, TAPPET ADJUSTING
|
12 | Ask on WhatsApp |
| 24 |
90206PT0004
NUT, TAPPET ADJUSTING -- 11 --
|
24 | Ask on WhatsApp |
