bf225ak1
Section F-11: POWER TRIM-TILT (v2)

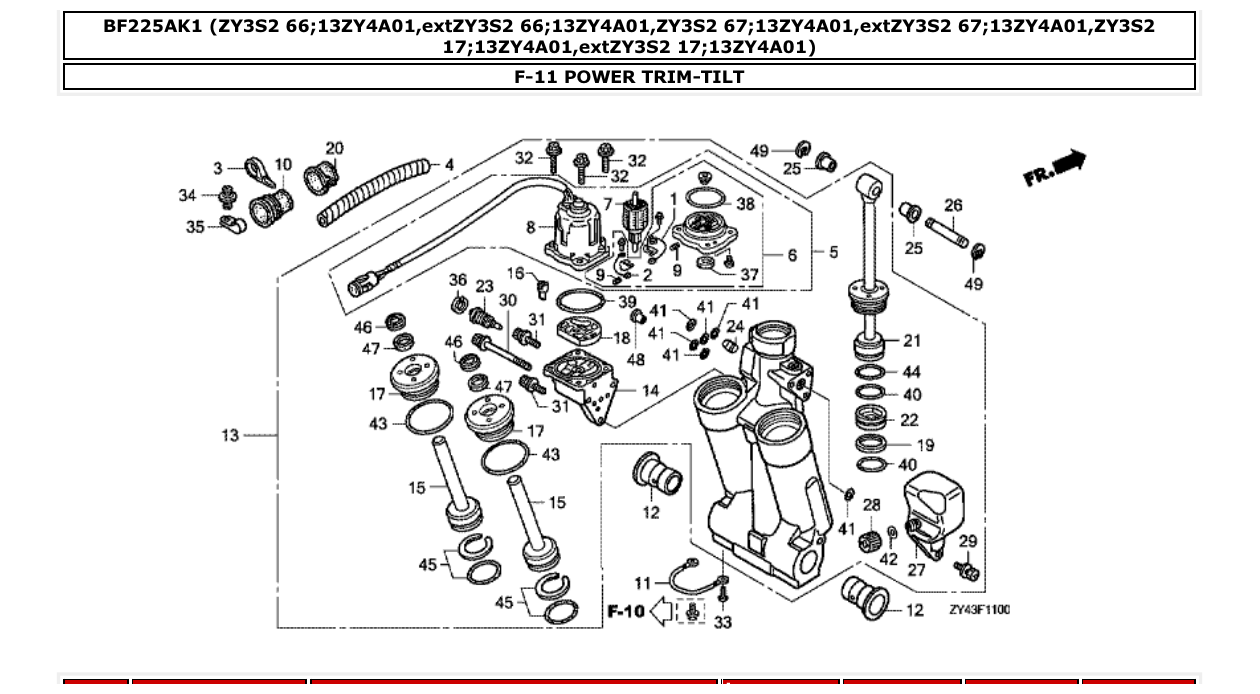

Diagram for section F-11: POWER TRIM-TILT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
30280ZY3003
BREAKER ASSY.
|
1 | Ask on WhatsApp |
| 2 |
31106ZY3003
BRUSH ASSY.
|
1 | Ask on WhatsApp |
| 3 |
35701MG9950
BAND (BLACK 3.5X140)
|
1 | Ask on WhatsApp |
| 4 |
36104ZW1003
TUBE, SPIRAL (12X14.6)
|
1 | Ask on WhatsApp |
| 5 |
36120ZY3013
MOTOR ASSY., POWER TILT
|
1 | Ask on WhatsApp |
| 6 |
36122ZY3013
BRACKET ASSY.
|
1 | Ask on WhatsApp |
| 7 |
36123ZY3013
ARMATURE COMP.
|
1 | Ask on WhatsApp |
| 8 |
36129ZY3013
YOKE ASSY.
|
1 | Ask on WhatsApp |
| 9 |
36136ZV5821
SPRING, MOTOR
|
2 | Ask on WhatsApp |
| 10 |
40107ZW1700
GROMMET, UNDER CASE (C)
|
2 | Ask on WhatsApp |
| 11 |
40219ZY3013
WIRE, LEAD (1.5X116MM)
|
1 | Ask on WhatsApp |
| 12 |
50214ZV5003
BUSH, SWIVEL CASE
|
2 | Ask on WhatsApp |
| 13 |
56000ZY3043
TRIM-TILT ASSY., POWER
|
1 | Ask on WhatsApp |
| 14 |
56100ZY3003
PUMP ASSY.
|
1 | Ask on WhatsApp |
| 15 |
56110ZW1701
ROD COMP., PISTON (B)
|
2 | Ask on WhatsApp |
| 16 |
56113ZW1701
JOINT, DRIVE
|
1 | Ask on WhatsApp |
| 17 |
56115ZY9003
GUIDE COMP., ROD
|
2 | Ask on WhatsApp |
| 18 |
56116ZW1701
FILTER B
|
1 | Ask on WhatsApp |
| 19 |
56117ZV5821
RING, BACK UP
|
1 | Ask on WhatsApp |
| 20 |
56118ZV5820
BUSH, MOTOR CODE
|
1 | Ask on WhatsApp |
| 21 |
56120ZY3013
ROD COMP., PISTON
|
1 | Ask on WhatsApp |
| 22 |
56130ZW1702
PISTON COMP., FREE
|
1 | Ask on WhatsApp |
| 23 |
56170ZY3013
VALVE COMP., MANUAL
|
1 | Ask on WhatsApp |
| 24 |
56180ZW1701
VALVE COMP., RESERVOIR
|
1 | Ask on WhatsApp |
| 25 |
56513ZV5000
BUSH, LOWER CYLINDER
|
2 | Ask on WhatsApp |
| 26 |
56532ZY3000
PIN, UPPER CYLINDER
|
1 | Ask on WhatsApp |
| 27 |
56851ZW1703
TANK, OIL
|
1 | Ask on WhatsApp |
| 28 |
56860ZW1701
CAP COMP., OIL TANK
|
1 | Ask on WhatsApp |
| 29 |
90113ZW1702
BOLT, RECESSED
|
3 | Ask on WhatsApp |
| 30 |
90114ZW1702
BOLT, SOCKET (A)
|
1 | Ask on WhatsApp |
| 31 |
90115ZW1702
BOLT, SOCKET (B)
|
2 | Ask on WhatsApp |
| 32 |
90116ZW1702
BOLT, HEX.
|
4 | Ask on WhatsApp |
| 33 |
90119ZV5000
SCREW, PAN, 6X8
|
1 | Ask on WhatsApp |
| 34 |
90127ZV5003
SCREW, RIVET, 5X10
|
1 | Ask on WhatsApp |
| 35 |
90602SB0003
CLIP, 10.7MM
|
1 | Ask on WhatsApp |
| 36 |
90652ZW1702
CIRCLIP, INTERNAL -- 50 --
|
1 | Ask on WhatsApp |
