bf225ak1
Section FOP-5: SWITCH PANEL KIT (1) (v2)

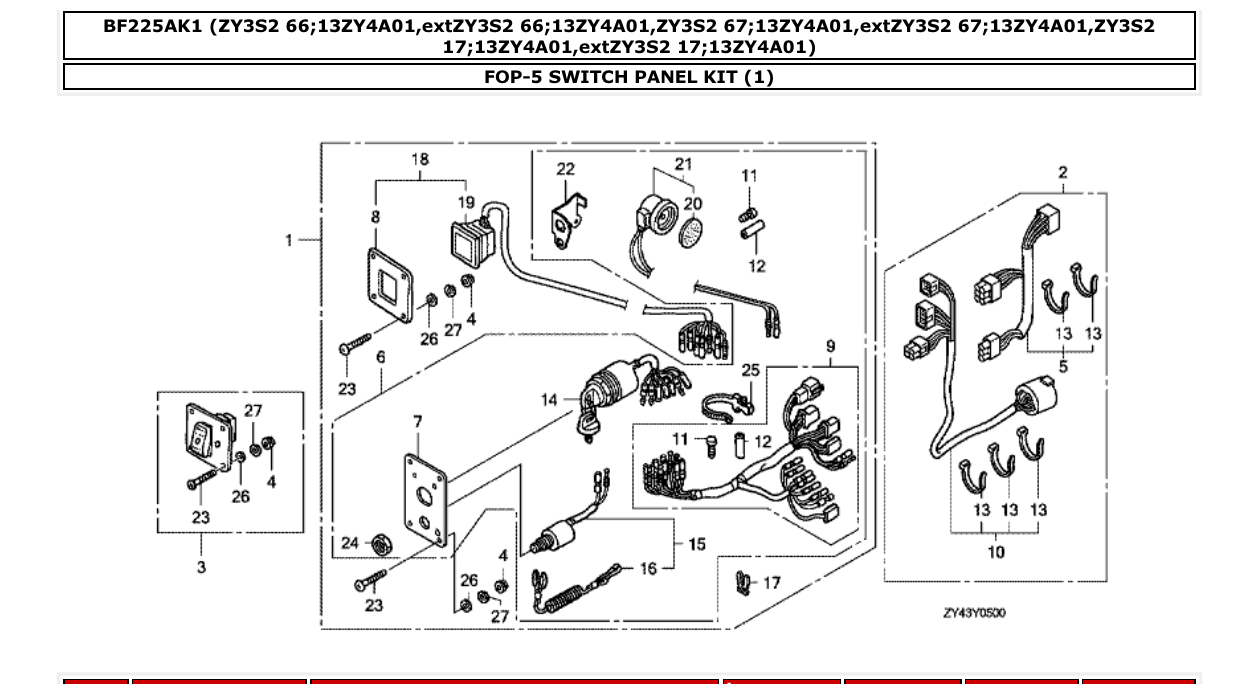

Diagram for section FOP-5: SWITCH PANEL KIT (1).
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
06323ZZ5661
PANEL KIT, SWITCH (B) (4-LED)
|
1 | Ask on WhatsApp |
| 2 |
06325ZZ5600
CABLE SET, PANEL INDICATOR (20FT)
|
1 | Ask on WhatsApp |
| 2 |
06325ZZ5700
CABLE SET, PANEL INDICATOR (25FT)
|
1 | Ask on WhatsApp |
| 2 |
06325ZZ5800
CABLE SET, PANEL INDICATOR (30FT)
|
1 | Ask on WhatsApp |
| 3 |
06352ZW5U01
SWITCH KIT, LIGHT
|
1 | Ask on WhatsApp |
| 4 |
18334MT8770
NUT, FLANGE, 5MM
|
0 | Ask on WhatsApp |
| 5 |
32185ZZ5600
CORD ASSY., INDICATOR (20FT)
|
1 | Ask on WhatsApp |
| 5 |
32185ZZ5700
CORD ASSY., INDICATOR (25FT)
|
1 | Ask on WhatsApp |
| 5 |
32185ZZ5800
CORD ASSY., INDICATOR (30FT)
|
1 | Ask on WhatsApp |
| 6 |
32341ZZ5762
PANEL ASSY., SWITCH
|
1 | Ask on WhatsApp |
| 7 |
32346ZZ5761
PANEL, CONTROL
|
1 | Ask on WhatsApp |
| 8 |
32347ZZ5761
PANEL, CONTROL
|
1 | Ask on WhatsApp |
| 9 |
32545ZZ5000
HARNESS ASSY., SWITCH PANEL
|
1 | Ask on WhatsApp |
| 10 |
32580ZZ5600
CABLE ASSY., SWITCH PANEL (20FT)
|
1 | Ask on WhatsApp |
| 10 |
32580ZZ5700
CABLE ASSY., SWITCH PANEL (25FT)
|
1 | Ask on WhatsApp |
| 10 |
32580ZZ5800
CABLE ASSY., SWITCH PANEL (30FT)
|
1 | Ask on WhatsApp |
| 11 |
32823ZV5003
PLUG, INNER CONNECTOR
|
8 | Ask on WhatsApp |
| 12 |
32824ZV5003
PLUG, OUTER CONNECTOR
|
3 | Ask on WhatsApp |
| 13 |
32901952770
TIE, CABLE (2.4X92) (NATURAL)
|
5 | Ask on WhatsApp |
| 14 |
35100ZV5013
SWITCH ASSY., COMBINATION
|
1 | Ask on WhatsApp |
| 15 |
36180ZV5023
SWITCH ASSY., EMERGENCY STOP
|
1 | Ask on WhatsApp |
| 16 |
36182ZV4651
CORD COMP., EMERGENCY
|
1 | Ask on WhatsApp |
| 17 |
36187ZV4652
CLIP, EMERGENCY LOCK
|
1 | Ask on WhatsApp |
| 18 |
37205ZZ5761
PANEL ASSY., INDICATOR (4-LED)
|
1 | Ask on WhatsApp |
| 19 |
37210ZZ5761
LAMP ASSY., INDICATION (4-LED)
|
1 | Ask on WhatsApp |
| 20 |
38403341672
PLATE, WINKER BUZZER
|
1 | Ask on WhatsApp |
| 21 |
38410ZV5003
BUZZER COMP., WARNING
|
1 | Ask on WhatsApp |
| 22 |
38414ZZ5003
BRACKET, BUZZER
|
1 | Ask on WhatsApp |
| 23 |
90109ZW5000
SCREW, PAN, 5X40
|
0 | Ask on WhatsApp |
| 24 |
90302921000
NUT, HEX., 16MM
|
1 | Ask on WhatsApp |
| 25 |
90649SC2003
BAND, WIRE HARNESS (NATURAL) (150MM)
|
1 | Ask on WhatsApp |
| 26 |
9410305400
WASHER, PLAIN, 5MM
|
0 | Ask on WhatsApp |
| 27 |
9411105400
WASHER, SPRING, 5MM -- 66 --
|
0 | Ask on WhatsApp |
