bf225ak1
Section E-14: FUEL PIPE/INJECTOR (v2)

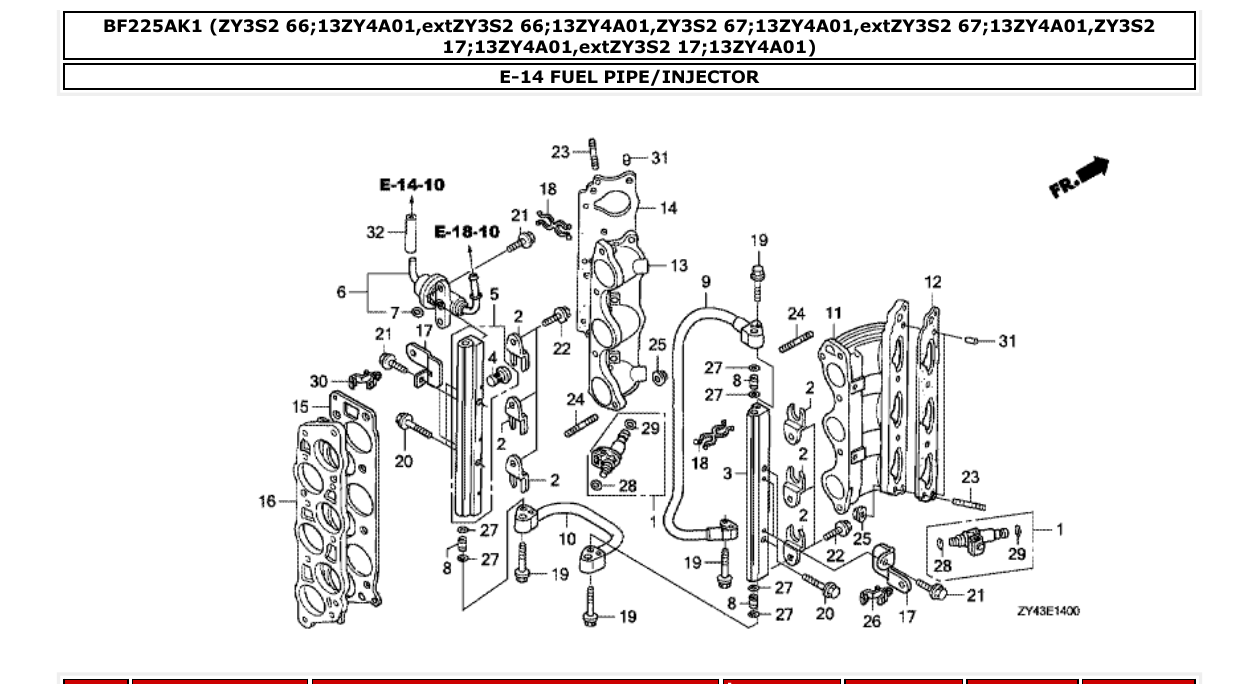

Diagram for section E-14: FUEL PIPE/INJECTOR.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
16450ZY6003
INJECTOR ASSY., FUEL
|
6 | Ask on WhatsApp |
| 2 |
16451ZY3000
CLIP, INJECTOR
|
6 | Ask on WhatsApp |
| 3 |
16611ZY3A00
PIPE, R. FUEL
|
1 | Ask on WhatsApp |
| 4 |
16614P5G003
MESH, FUEL FILTER
|
1 | Ask on WhatsApp |
| 5 |
16620ZY3A00
PIPE COMP., L. FUEL
|
1 | Ask on WhatsApp |
| 6 |
16740ZY3A01
REGULATOR ASSY., PRESSURE
|
1 | Ask on WhatsApp |
| 7 |
16741PG7005
O-RING, PRESSURE REGULATOR
|
1 | Ask on WhatsApp |
| 8 |
16752ZY3A00
JOINT, FUEL PIPE
|
3 | Ask on WhatsApp |
| 9 |
16755ZY3003
HOSE COMP., FUEL
|
1 | Ask on WhatsApp |
| 10 |
16757ZY3003
HOSE COMP., FUEL JOINT
|
1 | Ask on WhatsApp |
| 11 |
17051ZY3A00
BASE, R. INJECTOR
|
1 | Ask on WhatsApp |
| 12 |
17055RCAA01
GASKET, FR. INJECTOR BASE
|
1 | Ask on WhatsApp |
| 13 |
17061ZY3A00
BASE, L. INJECTOR
|
1 | Ask on WhatsApp |
| 14 |
17065RCAA01
GASKET, RR. INJECTOR BASE
|
1 | Ask on WhatsApp |
| 15 |
17105P8EA01
GASKET, INTAKE MANIFOLD
|
1 | Ask on WhatsApp |
| 16 |
17108ZY3000
SPACER, INTAKE MANIFOLD
|
1 | Ask on WhatsApp |
| 17 |
32112ZY3000
BRACKET, HARNESS CLIP A
|
4 | Ask on WhatsApp |
| 18 |
78419SJ6003
CLIP D, SPEEDOMETER CABLE
|
2 | Ask on WhatsApp |
| 19 |
90016ZW9000
BOLT, FLANGE, 6X25
|
4 | Ask on WhatsApp |
| 20 |
90019ZW9000
BOLT, FLANGE, 6X35
|
4 | Ask on WhatsApp |
| 21 |
90021ZY3000
BOLT, FLANGE, 6X14
|
6 | Ask on WhatsApp |
| 22 |
90042ZY3000
BOLT, FLANGE, 6X10
|
6 | Ask on WhatsApp |
| 23 |
90043ZY3000
BOLT, STUD, 8X28
|
8 | Ask on WhatsApp |
| 24 |
90044ZY3000
BOLT, STUD, 8X45
|
2 | Ask on WhatsApp |
| 25 |
90205ZY3000
NUT, FLANGE, 8MM
|
8 | Ask on WhatsApp |
| 26 |
90650SB2003
CLIP, WIRE HARNESS, 10MM
|
2 | Ask on WhatsApp |
| 27 |
91301MJ0003
O-RING, 7.8X1.9 (ARAI)
|
6 | Ask on WhatsApp |
| 28 |
91301PLC000
O-RING, 7.47X3.6
|
6 | Ask on WhatsApp |
| 29 |
91302PNA003
O-RING, 7.45X3.61 (NOK)
|
6 | Ask on WhatsApp |
| 30 |
90650SB2003
CLIP, WIRE HARNESS, 10MM
|
2 | Ask on WhatsApp |
| 31 |
9430110120
DOWEL PIN, 10X12
|
4 | Ask on WhatsApp |
| 32 |
950013505040
TUBE, FUEL, 3.5X50 (95001-35001-60M) BF225AK1 (ZY3S2 66;13ZY4A01,extZY3S2 66;13ZY4A01,ZY3S2 67;13ZY4A01,extZY3S2 67;13ZY4A01,ZY3S2 -- 14 --
|
1 | Ask on WhatsApp |
