bf225ak1
Section E-18: VAPOR SEPARATOR ASSY. (v2)

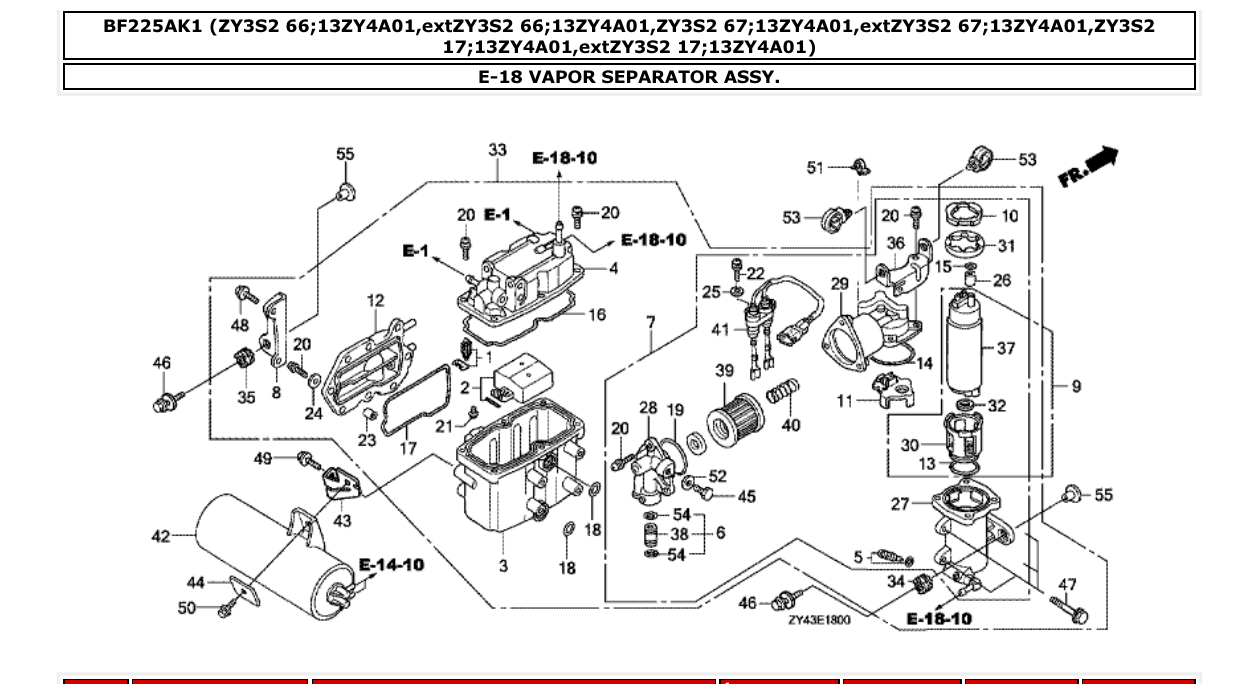

Diagram for section E-18: VAPOR SEPARATOR ASSY..
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
16011ZY3A01
VALVE SET, FLOAT
|
1 | Ask on WhatsApp |
| 2 |
16013ZY3000
FLOAT SET
|
1 | Ask on WhatsApp |
| 3 |
16015ZY3000
BODY
|
1 | Ask on WhatsApp |
| 4 |
16020ZY3010
COVER COMP.
|
1 | Ask on WhatsApp |
| 5 |
16024ZY3000
SCREW SET, DRAIN
|
1 | Ask on WhatsApp |
| 6 |
16026ZY3000
JOINT SET
|
1 | Ask on WhatsApp |
| 7 |
16030ZY3020
PUMP UNIT, FUEL
|
1 | Ask on WhatsApp |
| 8 |
16031ZY3010
STAY, PLATE
|
1 | Ask on WhatsApp |
| 9 |
16036ZY3003
PUMP UNIT SET B, FUEL
|
1 | Ask on WhatsApp |
| 10 |
16041ZY3000
PLATE
|
1 | Ask on WhatsApp |
| 11 |
16042ZY3000
HOLDER
|
1 | Ask on WhatsApp |
| 12 |
16061ZY3000
COVER, WATER JACKET
|
1 | Ask on WhatsApp |
| 13 |
16072ZY3000
O-RING
|
1 | Ask on WhatsApp |
| 14 |
16073ZY3000
O-RING
|
1 | Ask on WhatsApp |
| 15 |
16074ZY3000
O-RING
|
1 | Ask on WhatsApp |
| 16 |
16075ZY3000
O-RING
|
1 | Ask on WhatsApp |
| 17 |
16076ZY3000
O-RING
|
1 | Ask on WhatsApp |
| 18 |
16077ZY3000
O-RING
|
2 | Ask on WhatsApp |
| 19 |
16078ZY3000
O-RING
|
1 | Ask on WhatsApp |
| 20 |
16081ZW5010
SCREW-WASHER
|
21 | Ask on WhatsApp |
| 21 |
16082ZY3000
SCREW, PAN
|
2 | Ask on WhatsApp |
| 22 |
16083ZY3000
SCREW, WASHER
|
1 | Ask on WhatsApp |
| 23 |
16086ZW5000
COLLAR
|
8 | Ask on WhatsApp |
| 24 |
16087ZW5000
WASHER, PLAIN
|
8 | Ask on WhatsApp |
| 25 |
16087ZY3000
WASHER, PLAIN
|
1 | Ask on WhatsApp |
| 26 |
16088ZY3000
COLLAR
|
1 | Ask on WhatsApp |
| 27 |
16701ZY3000
CASE COMP., PUMP
|
1 | Ask on WhatsApp |
| 28 |
16708ZY3000
COVER, PUMP
|
1 | Ask on WhatsApp |
| 29 |
16715ZY3000
COVER COMP., PUMP
|
1 | Ask on WhatsApp |
| 30 |
16718ZY6013
INSULATOR COMP.
|
1 | Ask on WhatsApp |
| 31 |
16721ZY3000
INSULATOR
|
1 | Ask on WhatsApp |
| 32 |
16723ZY6003
RING
|
1 | Ask on WhatsApp |
| 33 |
16730ZY3A04
SEPARATOR ASSY., VAPOR
|
1 | Ask on WhatsApp |
| 34 |
16733ZW5000
GROMMET, VAPOR SEPARATOR
|
1 | Ask on WhatsApp |
| 35 |
16733ZY3000
GROMMET, VAPOR SEPARATOR
|
2 | Ask on WhatsApp |
| 36 |
16734ZY3000
STAY, PLATE -- 17 --
|
1 | Ask on WhatsApp |
