Section E-18-10: PIPING (v2)

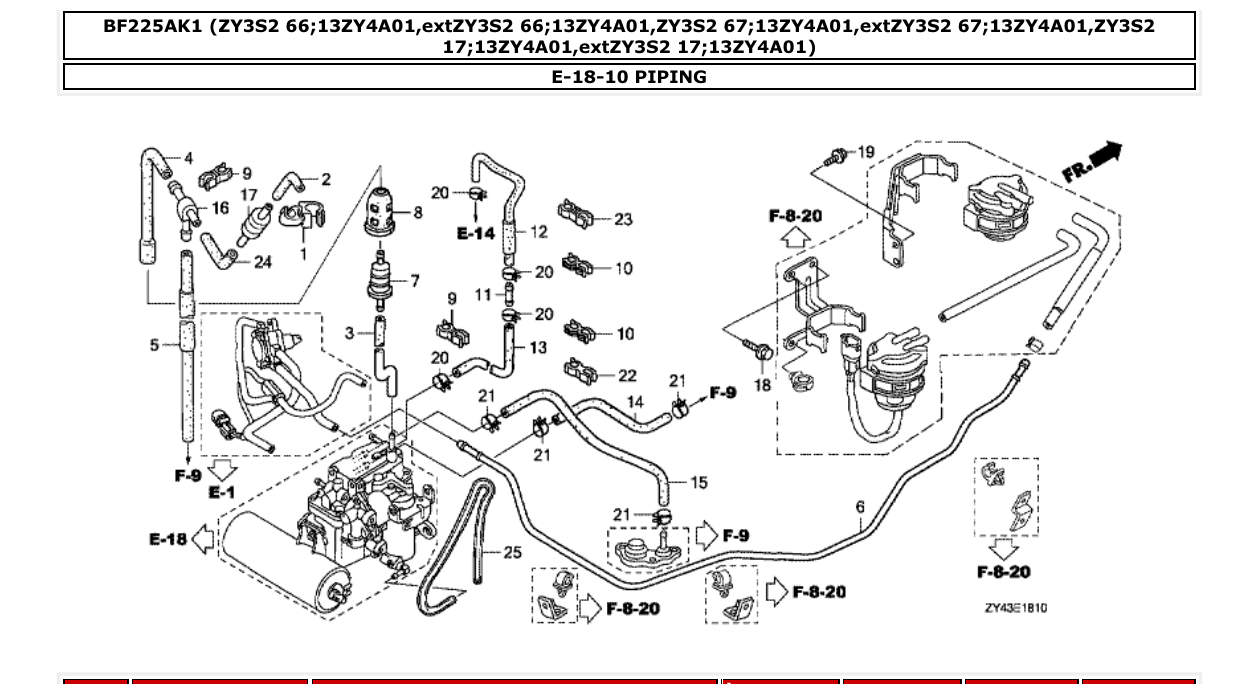

Diagram for section E-18-10: PIPING.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
16193ZY3A00
CLAMP, CHECK VALVE
|
1 | Ask on WhatsApp |
| 2 |
16196ZY3A00
TUBE, CHECK VALVE
|
1 | Ask on WhatsApp |
| 3 |
16197ZY3000
TUBE A, AIR VENT
|
1 | Ask on WhatsApp |
| 4 |
16198ZY3A00
TUBE B, AIR VENT
|
1 | Ask on WhatsApp |
| 5 |
16199ZY3A00
TUBE COMP., AIR VENT
|
1 | Ask on WhatsApp |
| 6 |
16751ZY3000
PIPE, FUEL
|
1 | Ask on WhatsApp |
| 7 |
16911759003
STRAINER, FUEL PUMP
|
1 | Ask on WhatsApp |
| 8 |
16915ZW5000
SUSPENSION, STRAINER
|
1 | Ask on WhatsApp |
| 9 |
16965VM0771
CLAMP, HOSE
|
2 | Ask on WhatsApp |
| 10 |
17450KY7740
CLIP, TUBE
|
2 | Ask on WhatsApp |
| 11 |
17721ZY3000
JOINT, FUEL RETURN
|
1 | Ask on WhatsApp |
| 12 |
17723ZY3A00
HOSE A, PRESSURE REGULATOR RETURN
|
1 | Ask on WhatsApp |
| 13 |
17724ZY3000
HOSE B, PRESSURE REGULATOR RETURN
|
1 | Ask on WhatsApp |
| 14 |
19258ZY3010
TUBE, WATER IN.
|
1 | Ask on WhatsApp |
| 15 |
19259ZY3000
TUBE, WATER OUTLET
|
1 | Ask on WhatsApp |
| 16 |
19269ZY6000
T-JOINT
|
1 | Ask on WhatsApp |
| 17 |
36135ZY6003
VALVE, CHECK
|
1 | Ask on WhatsApp |
| 18 |
90014ZW9000
BOLT, FLANGE, 6X10
|
2 | Ask on WhatsApp |
| 19 |
90021ZY3000
BOLT, FLANGE, 6X14
|
2 | Ask on WhatsApp |
| 20 |
90601ZW5030
CLAMP, TUBE (D10.7)
|
4 | Ask on WhatsApp |
| 21 |
90601ZY3030
CLAMP, TUBE (D10.5)
|
4 | Ask on WhatsApp |
| 22 |
90655MB1921
CLIP, WIRE
|
1 | Ask on WhatsApp |
| 23 |
91592SL0A51
CLAMP, FUEL TUBE
|
1 | Ask on WhatsApp |
| 24 |
950013505540
TUBE, FUEL, 3.5X55 (95001-35001-60M)
|
1 | Ask on WhatsApp |
| 25 |
950030506031
TUBE, VINYL, 3.5X6.5X600 (95003-05001-60M) -- 19 --
|
1 | Ask on WhatsApp |
