bf225ak1
Section F-7-10: STARTER CABLE (v2)

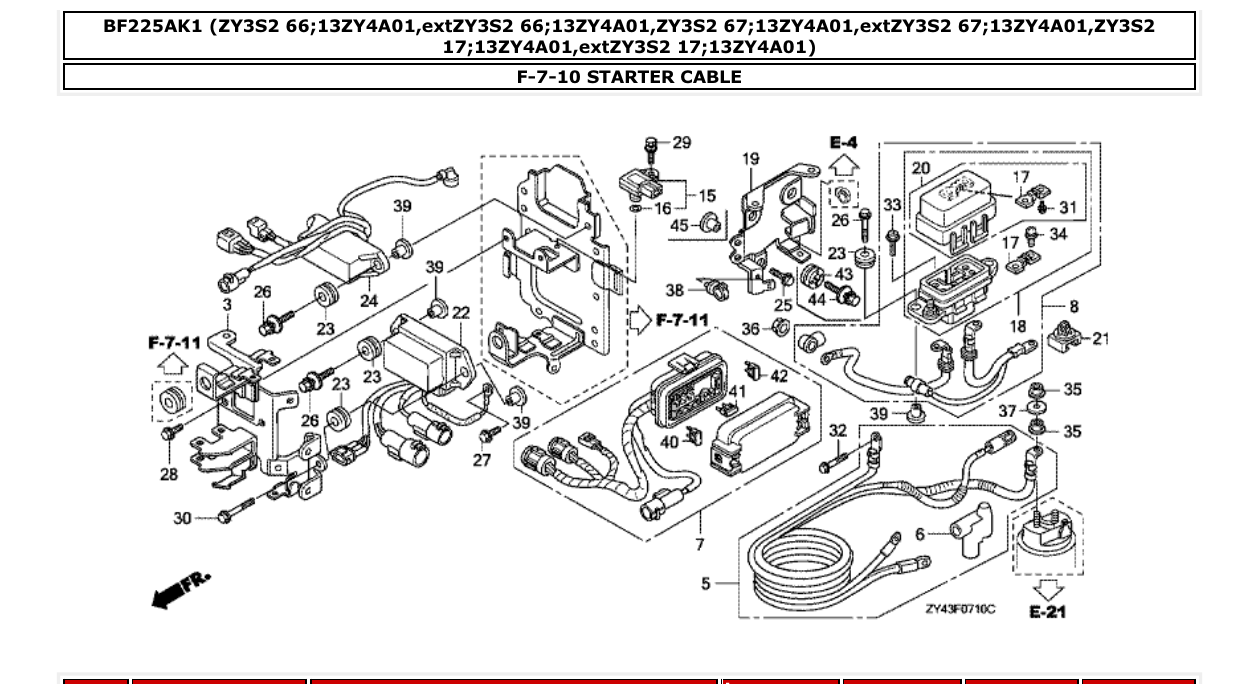

Diagram for section F-7-10: STARTER CABLE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 3 |
32108ZY3C00
BRACKET, COUPLER A
|
1 | Ask on WhatsApp |
| 5 |
32410ZY3A02
CABLE ASSY., STARTER
|
1 | Ask on WhatsApp |
| 6 |
32411ZY3003
COVER, STARTER TERMINAL
|
1 | Ask on WhatsApp |
| 7 |
32415ZY3C00
CABLE ASSY., MAIN FUSE
|
1 | Ask on WhatsApp |
| 8 |
32435ZY3A00
CABLE ASSY., A.C. GENERATOR FUSE
|
1 | Ask on WhatsApp |
| 15 |
37830RNAA01
SENSOR ASSY., MAP
|
1 | Ask on WhatsApp |
| 16 |
37835PGKA01
O-RING
|
1 | Ask on WhatsApp |
| 17 |
38201ZY3003
FUSE (150A)
|
2 | Ask on WhatsApp |
| 18 |
38210ZY3A01
BOX ASSY., FUSE (150A)
|
1 | Ask on WhatsApp |
| 19 |
38214ZY3A00
BRACKET, FUSE BOX
|
1 | Ask on WhatsApp |
| 19 |
38214ZY3A00
BRACKET, FUSE BOX
|
1 | Ask on WhatsApp |
| 19 |
38214ZY3A00
BRACKET, FUSE BOX
|
1 | Ask on WhatsApp |
| 19 |
38214ZY3A01
BRACKET, FUSE BOX
|
1 | Ask on WhatsApp |
| 19 |
38214ZY3A01
BRACKET, FUSE BOX
|
1 | Ask on WhatsApp |
| 19 |
38214ZY3A01
BRACKET, FUSE BOX
|
1 | Ask on WhatsApp |
| 20 |
38216ZY3A01
COVER ASSY., FUSE (150A)
|
1 | Ask on WhatsApp |
| 21 |
38216ZY3003
CLIP, COUPLER HOLDER (B)
|
1 | Ask on WhatsApp |
| 22 |
38550ZY3C01
RELAY ASSY., POWER TILT
|
1 | Ask on WhatsApp |
| 23 |
38551ZW1000
GROMMET, RELAY
|
6 | Ask on WhatsApp |
| 24 |
38580ZY3013
RELAY ASSY., MAIN
|
1 | Ask on WhatsApp |
| 25 |
90011ZW9000
BOLT, FLANGE, 6X14 (CT200)
|
3 | Ask on WhatsApp |
| 25 |
90011ZW9000
BOLT, FLANGE, 6X14 (CT200)
|
3 | Ask on WhatsApp |
| 25 |
90011ZW9000
BOLT, FLANGE, 6X14 (CT200)
|
3 | Ask on WhatsApp |
| 26 |
90013ZW1000
BOLT-WASHER, 6X25
|
5 | Ask on WhatsApp |
| 27 |
90013ZW9000
BOLT, FLANGE, 6X12
|
1 | Ask on WhatsApp |
| 28 |
90014ZW9000
BOLT, FLANGE, 6X10
|
2 | Ask on WhatsApp |
| 29 |
90029ZY3000
BOLT-WASHER, 5X18
|
1 | Ask on WhatsApp |
| 30 |
90030ZY3000
BOLT, FLANGE, 6X22
|
1 | Ask on WhatsApp |
| 31 |
90105ZW5003
SCREW-WASHER, 3X7
|
2 | Ask on WhatsApp |
| 32 |
90107ZY3000
BOLT, FLANGE, 8X18
|
1 | Ask on WhatsApp |
| 33 |
90108ZY3000
BOLT-WASHER, 6X16
|
2 | Ask on WhatsApp |
| 34 |
90135ZY3003
SCREW-WASHER, 5X12
|
2 | Ask on WhatsApp |
| 35 |
90203ZW1000
NUT-WASHER, 8MM
|
2 | Ask on WhatsApp |
| 36 |
90304ZY3000
NUT-WASHER, 6MM
|
1 | Ask on WhatsApp |
| 37 |
90405ZY3000
WASHER, PLAIN, 8MM
|
1 | Ask on WhatsApp |
| 38 |
90691ZB7003
CLIP, HARNESS -- 38 --
|
1 | Ask on WhatsApp |
