bf225ak1
Section F-8-20: WATER SEPARATOR/FUEL STRAINER (v2)

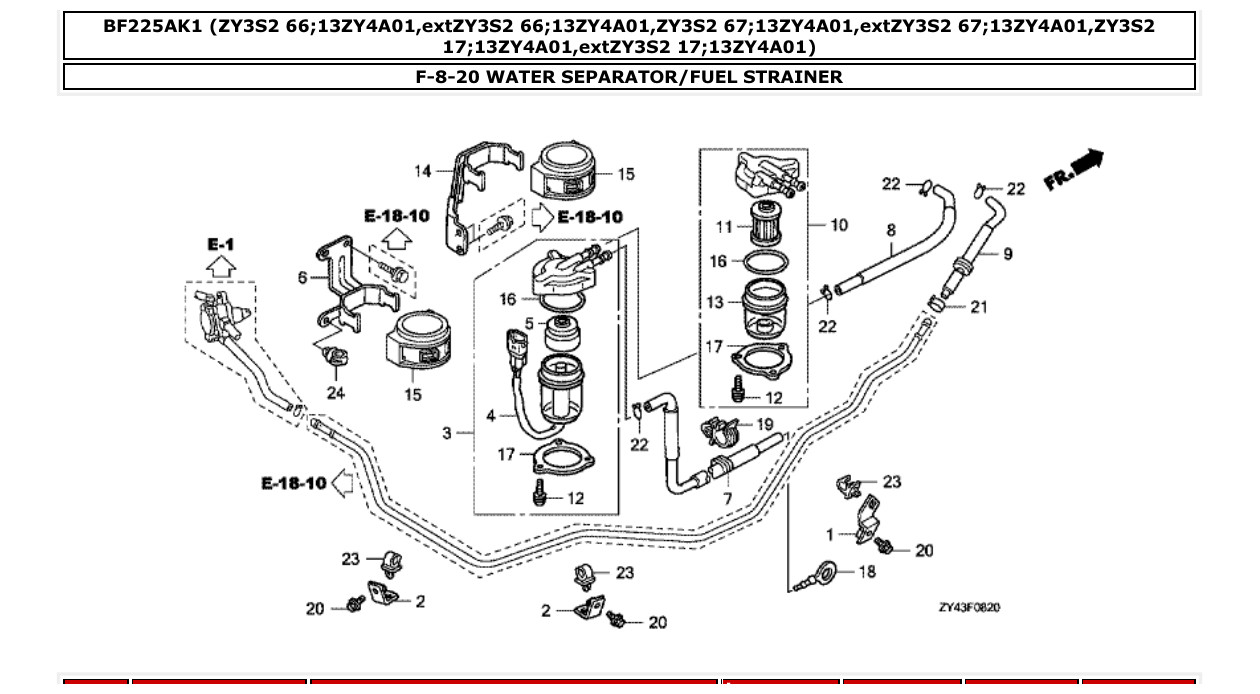

Diagram for section F-8-20: WATER SEPARATOR/FUEL STRAINER.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
16753ZY3000
STAY, FUEL PIPE A
|
1 | Ask on WhatsApp |
| 2 |
16754ZY3000
STAY, FUEL PIPE B
|
2 | Ask on WhatsApp |
| 3 |
16800ZY3003
SEPARATOR ASSY., WATER
|
1 | Ask on WhatsApp |
| 4 |
16805ZY3003
CUP, WATER SEPARATOR
|
1 | Ask on WhatsApp |
| 5 |
16807ZY3003
BUFFER, PLATE
|
1 | Ask on WhatsApp |
| 6 |
16814ZY3010
STAY, WATER SEPARATOR
|
1 | Ask on WhatsApp |
| 7 |
16850ZY3A00
TUBE COMP., FUEL (A)
|
1 | Ask on WhatsApp |
| 8 |
16860ZY3000
TUBE COMP., FUEL (B)
|
1 | Ask on WhatsApp |
| 9 |
16870ZY3010
TUBE COMP., FUEL (C)
|
1 | Ask on WhatsApp |
| 10 |
16900ZY3003
STRAINER COMP., FUEL
|
1 | Ask on WhatsApp |
| 11 |
16901ZY3003
STRAINER, FUEL
|
1 | Ask on WhatsApp |
| 12 |
16904ZY3003
SCREW, PAN, 5X12
|
6 | Ask on WhatsApp |
| 13 |
16912ZY3003
CUP, FUEL STRAINER
|
1 | Ask on WhatsApp |
| 14 |
16914ZY3010
STAY, FUEL STRAINER
|
1 | Ask on WhatsApp |
| 15 |
16915ZY3010
SUSPENSION, STRAINER
|
2 | Ask on WhatsApp |
| 16 |
16918ZY3003
O-RING
|
2 | Ask on WhatsApp |
| 17 |
16919ZY3003
PLATE
|
2 | Ask on WhatsApp |
| 18 |
17738ZY3000
PLUG, FUEL TUBE
|
1 | Ask on WhatsApp |
| 19 |
80106GCF670
HOLDER, ROD (A)
|
1 | Ask on WhatsApp |
| 20 |
90056ZY3000
BOLT, FLANGE, 6X12
|
3 | Ask on WhatsApp |
| 21 |
90602ZW5030
CLAMP, TUBE (D12)
|
1 | Ask on WhatsApp |
| 22 |
90604ZV0000
CLIP, TUBE (B12)
|
4 | Ask on WhatsApp |
| 23 |
90659KG4000
CLAMP, WIRE, 8MM
|
3 | Ask on WhatsApp |
| 24 |
90683SA0003
CLIP, WIRE HARNESS, 25MM -- 45 --
|
1 | Ask on WhatsApp |
