Section F-3: GEAR CASE (v2)

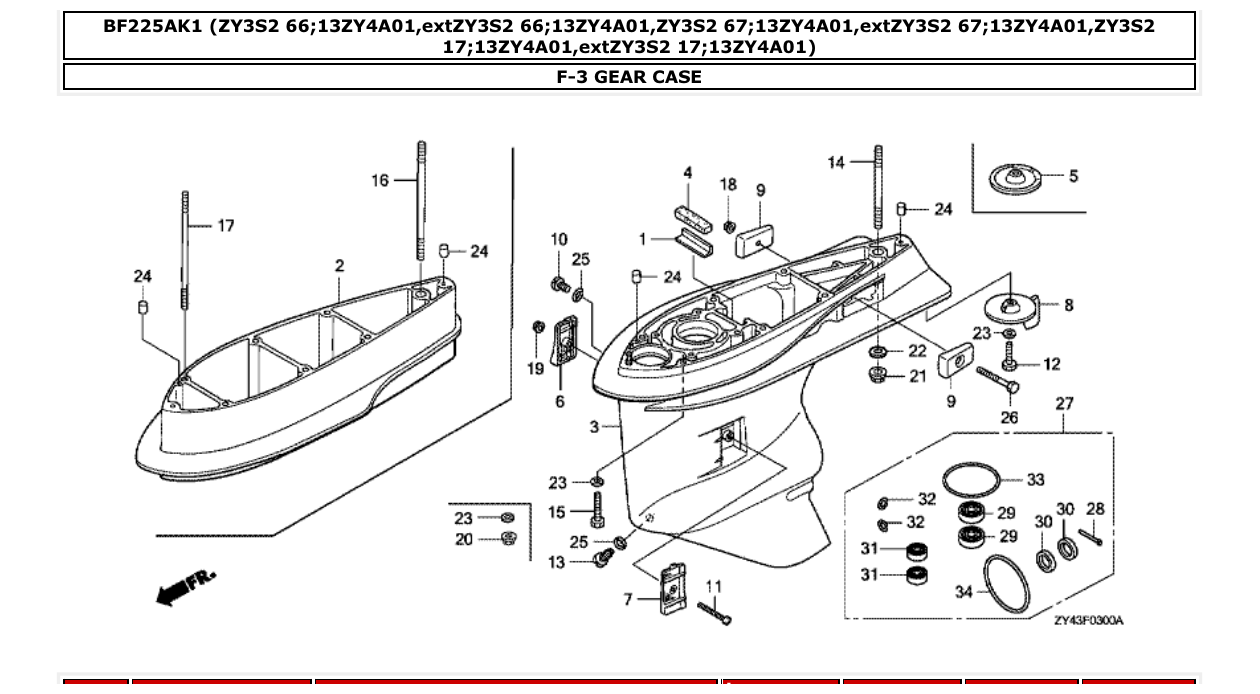

Diagram for section F-3: GEAR CASE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
19286ZW1B00
PLATE, RUBBER SETTING
|
1 | Ask on WhatsApp |
| 3 |
41101ZY3C00ZA
CASE, GEAR *NH282MU*
|
1 | Ask on WhatsApp |
| 4 |
41102ZW1B00
GROMMET, GEAR CASE
|
1 | Ask on WhatsApp |
| 5 |
41102ZY3710ZA
COVER, GEAR CASE *NH282MU *
|
1 | Ask on WhatsApp |
| 6 |
41104ZY3C00
SCREEN, R. WATER
|
1 | Ask on WhatsApp |
| 7 |
41105ZY3C00
SCREEN, L. WATER
|
1 | Ask on WhatsApp |
| 8 |
41107ZY3000ZA
TAB, TRIM *NH282MU *
|
1 | Ask on WhatsApp |
| 9 |
41109ZW1B00
METAL COMP., ANODE
|
2 | Ask on WhatsApp |
| 10 |
90101ZW9003
BOLT, OIL CHECK
|
1 | Ask on WhatsApp |
| 11 |
90101ZZ0000
SCREW, FLAT, 5X55
|
1 | Ask on WhatsApp |
| 12 |
90103ZY3000
BOLT, HEX., 10X32
|
1 | Ask on WhatsApp |
| 13 |
90120ZY3000
BOLT, DRAIN PLUG
|
1 | Ask on WhatsApp |
| 14 |
90124ZY3000
BOLT, STUD, 12X40
|
1 | Ask on WhatsApp |
| 15 |
90126ZY3000
BOLT, HEX., 10X47
|
6 | Ask on WhatsApp |
| 18 |
90205ZY1000
NUT, SELF-LOCK, 6MM
|
1 | Ask on WhatsApp |
| 19 |
90302ZV4000
NUT, SELF-LOCK, 5MM
|
1 | Ask on WhatsApp |
| 21 |
90308ZW1003
NUT, SELF-LOCK, 12MM
|
1 | Ask on WhatsApp |
| 22 |
90559ZV5000
WASHER, PLAIN, 12MM
|
1 | Ask on WhatsApp |
| 23 |
90563ZV5000
WASHER, PLAIN, 10MM
|
7 | Ask on WhatsApp |
| 24 |
90756ZV5000
DOWEL PIN, 6X10
|
2 | Ask on WhatsApp |
| 25 |
91301ZW4003
O-RING, 6.9X1.45
|
2 | Ask on WhatsApp |
| 26 |
92101060554J
BOLT, HEX., 6X55
|
1 | Ask on WhatsApp |
| 27 |
06125ZY3C00
CASE KIT, GEAR
|
1 | Ask on WhatsApp |
| 28 |
90758ZW1B00
PIN, SPLIT, 4.0
|
1 | Ask on WhatsApp |
| 29 |
91251ZY3C01
SEAL, WATER, 26X42X7
|
2 | Ask on WhatsApp |
| 30 |
91252ZZ3003
SEAL, WATER, 30X45X7
|
2 | Ask on WhatsApp |
| 31 |
91254ZY3003
SEAL, WATER, 12X21X6
|
2 | Ask on WhatsApp |
| 32 |
91301ZW4003
O-RING, 6.9X1.45
|
2 | Ask on WhatsApp |
| 33 |
91308MJ0003
O-RING
|
1 | Ask on WhatsApp |
| 34 |
91351ZY3C00
O-RING, 110X3.1 -- 26 --
|
1 | Ask on WhatsApp |
