bf225ak1
Section E-7: CRANKSHAFT/PISTON (v2)

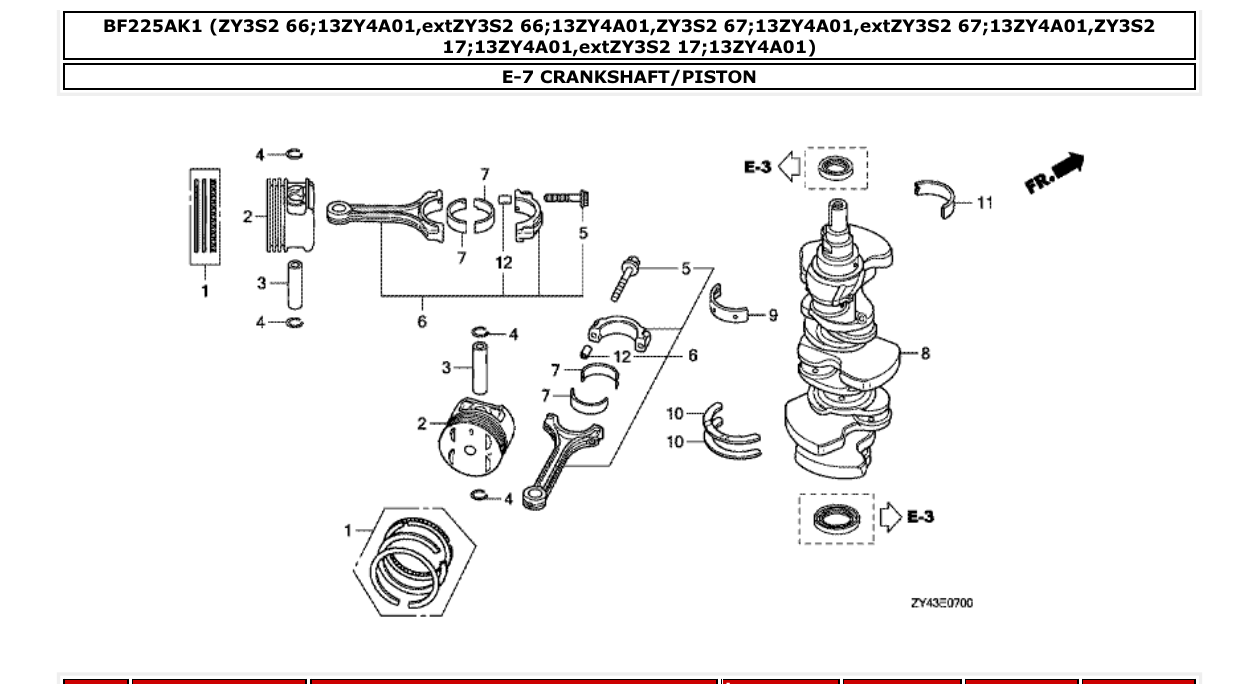

Diagram for section E-7: CRANKSHAFT/PISTON.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
13010ZY3A00
RING SET, PISTON (STD.)
|
6 | Ask on WhatsApp |
| 1 |
13011ZY3A00
RING SET, PISTON (0.25)
|
6 | Ask on WhatsApp |
| 2 |
13101ZY3A00
PISTON
|
6 | Ask on WhatsApp |
| 2 |
13102ZY3A00
PISTON (0.25)
|
6 | Ask on WhatsApp |
| 3 |
13111PEA000
PIN, PISTON
|
6 | Ask on WhatsApp |
| 4 |
13115P5A000
CLIP, PISTON PIN
|
12 | Ask on WhatsApp |
| 5 |
13204P8AA01
BOLT, CONNECTING ROD
|
12 | Ask on WhatsApp |
| 6 |
13210PGKA00
ROD COMP., CONNECTING
|
6 | Ask on WhatsApp |
| 7 |
13211P8FA11
BEARING A, CONNECTING ROD (BLACK) (TAIHO)
|
12 | Ask on WhatsApp |
| 7 |
13212P8FA11
BEARING B, CONNECTING ROD (BROWN) (TAIHO)
|
12 | Ask on WhatsApp |
| 7 |
13213P8FA11
BEARING C, CONNECTING ROD (GREEN) (TAIHO)
|
12 | Ask on WhatsApp |
| 7 |
13214P8FA11
BEARING D, CONNECTING ROD (YELLOW) (TAIHO)
|
12 | Ask on WhatsApp |
| 7 |
13215P8FA11
BEARING E, CONNECTING ROD (PINK) (TAIHO)
|
12 | Ask on WhatsApp |
| 8 |
13310RGLA00
CRANKSHAFT COMP.
|
1 | Ask on WhatsApp |
| 9 |
13321P8AA01
BEARING A, MAIN UPPER (BLACK) (DAIDO)
|
4 | Ask on WhatsApp |
| 9 |
13322P8AA01
BEARING B, MAIN UPPER (BROWN) (DAIDO)
|
4 | Ask on WhatsApp |
| 9 |
13323P8AA01
BEARING C, MAIN UPPER (GREEN) (DAIDO)
|
4 | Ask on WhatsApp |
| 9 |
13324P8AA01
BEARING D, MAIN UPPER (YELLOW) (DAIDO)
|
4 | Ask on WhatsApp |
| 9 |
13325P8AA01
BEARING E, MAIN UPPER (PINK) (DAIDO)
|
4 | Ask on WhatsApp |
| 9 |
13326P8AA01
BEARING F, MAIN UPPER (RED) (DAIDO)
|
4 | Ask on WhatsApp |
| 10 |
13331ZY3A01
WASHER, THRUST
|
2 | Ask on WhatsApp |
| 11 |
13341P8AA01
BEARING A, MAIN LOWER (BLACK) (DAIDO)
|
4 | Ask on WhatsApp |
| 11 |
13342P8AA01
BEARING B, MAIN LOWER (BROWN) (DAIDO)
|
4 | Ask on WhatsApp |
| 11 |
13343P8AA01
BEARING C, MAIN LOWER (GREEN) (DAIDO)
|
4 | Ask on WhatsApp |
| 11 |
13344P8AA01
BEARING D, MAIN LOWER (YELLOW) (DAIDO)
|
4 | Ask on WhatsApp |
| 11 |
13345P8AA01
BEARING E, MAIN LOWER (PINK) (DAIDO)
|
4 | Ask on WhatsApp |
| 11 |
13346P8AA01
BEARING F, MAIN LOWER (RED) (DAIDO)
|
4 | Ask on WhatsApp |
| 12 |
9430110120
DOWEL PIN, 10X12 -- 9 --
|
12 | Ask on WhatsApp |
