bf225ak1
Section E-4: EXHAUST MANIFOLD/THERMOSTAT (v2)

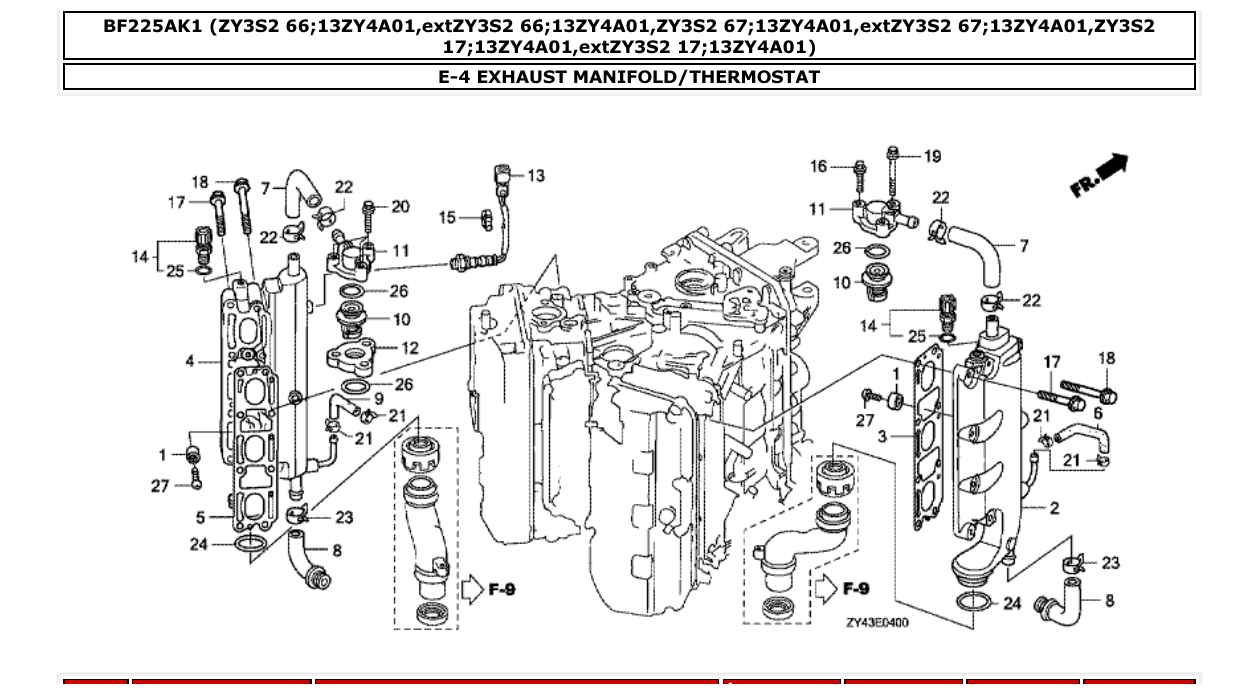

Diagram for section E-4: EXHAUST MANIFOLD/THERMOSTAT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
12155ZV5000
METAL, ANODE
|
4 | Ask on WhatsApp |
| 2 |
18110ZY3010ZA
MANIFOLD COMP., R. EX. *NH8 *
|
1 | Ask on WhatsApp |
| 3 |
18115ZY3003
GASKET, R. EX. MANIFOLD
|
1 | Ask on WhatsApp |
| 4 |
18120ZY3C00ZA
MANIFOLD COMP., L. EX. *NH8*
|
1 | Ask on WhatsApp |
| 5 |
18125ZY3003
GASKET, L. EX. MANIFOLD
|
1 | Ask on WhatsApp |
| 6 |
19255ZY3000
TUBE, R. WATER RETURN
|
1 | Ask on WhatsApp |
| 7 |
19256ZY3010
TUBE, WATER RELIEF
|
2 | Ask on WhatsApp |
| 8 |
19257ZY3000
TUBE, WATER
|
2 | Ask on WhatsApp |
| 9 |
19261ZY3000
TUBE, L. WATER RETURN
|
1 | Ask on WhatsApp |
| 10 |
19300ZY3023
THERMOSTAT ASSY.
|
2 | Ask on WhatsApp |
| 11 |
19315ZY3020ZA
COVER, THERMOSTAT *NH8 *
|
2 | Ask on WhatsApp |
| 12 |
19319ZY3A00ZA
SPACER, THERMOSTAT *NH8*
|
1 | Ask on WhatsApp |
| 13 |
35655ZY3C01
SENSOR, OXYGEN
|
1 | Ask on WhatsApp |
| 13 |
35655ZY3C01
SENSOR, OXYGEN
|
1 | Ask on WhatsApp |
| 13 |
35655ZZ5004
SENSOR, OXYGEN
|
1 | Ask on WhatsApp |
| 14 |
35673ZY3003
SENSOR ASSY., WATER TEMPERATURE
|
2 | Ask on WhatsApp |
| 15 |
46391VM0003
CLIP, BRAKE PIPE (A)
|
1 | Ask on WhatsApp |
| 16 |
90019ZW9000
BOLT, FLANGE, 6X35
|
1 | Ask on WhatsApp |
| 17 |
90020ZW9000
BOLT, FLANGE, 8X40
|
8 | Ask on WhatsApp |
| 18 |
90027ZY3000
BOLT, FLANGE, 8X60
|
8 | Ask on WhatsApp |
| 19 |
90034ZY3000
BOLT, FLANGE, 6X60
|
2 | Ask on WhatsApp |
| 20 |
90146ZW4000
BOLT, FLANGE, 6X50
|
3 | Ask on WhatsApp |
| 21 |
90601ZY3030
CLAMP, TUBE (D10.5)
|
4 | Ask on WhatsApp |
| 22 |
90603ZY3020
CLAMP, TUBE (D29)
|
4 | Ask on WhatsApp |
| 23 |
90604ZY3020
CLAMP, TUBE (D21)
|
2 | Ask on WhatsApp |
| 24 |
91301ZY3003
O-RING, 66.4X3.1
|
2 | Ask on WhatsApp |
| 25 |
91307PNA003
O-RING, 9.5X1.9
|
2 | Ask on WhatsApp |
| 26 |
91356SD4952
O-RING, 31.5X2.4 (ARAI)
|
3 | Ask on WhatsApp |
| 27 |
93500060184J
SCREW, PAN, 6X18 -- 5 --
|
4 | Ask on WhatsApp |
