bf225ak1
Section F-10: STERN BRACKET/SWIVEL CASE (v2)

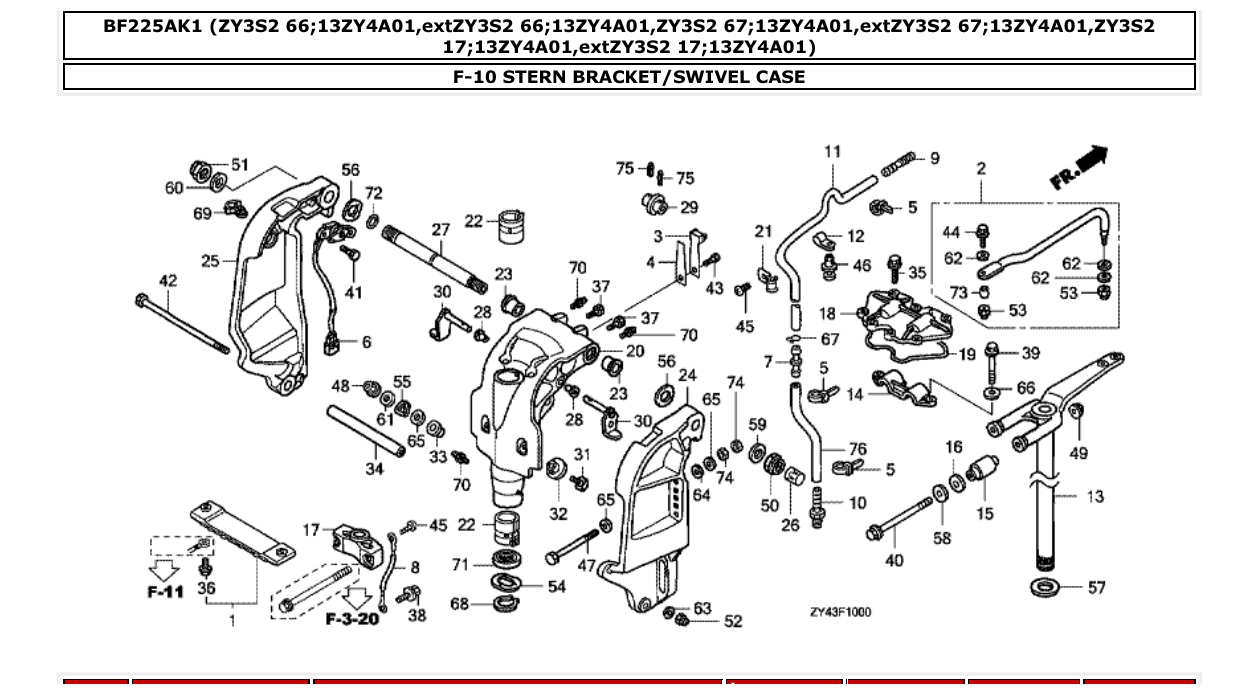

Diagram for section F-10: STERN BRACKET/SWIVEL CASE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
06411ZW1020
METAL KIT, ANODE
|
1 | Ask on WhatsApp |
| 2 |
06532ZY3U00
ROD KIT, STEERING
|
1 | Ask on WhatsApp |
| 3 |
24210ZV1010
SPRING COMP., CLICK
|
1 | Ask on WhatsApp |
| 4 |
24221ZV4010
SPRING, CLICK ASSIST
|
1 | Ask on WhatsApp |
| 5 |
32161KM3003
BAND, WIRE
|
3 | Ask on WhatsApp |
| 6 |
35660ZY3003
SENSOR ASSY., TRIM ANGLE
|
1 | Ask on WhatsApp |
| 7 |
38562663920
JOINT B, WASHER TUBE (MITSUBA)
|
1 | Ask on WhatsApp |
| 8 |
40219ZY3013
WIRE, LEAD (1.5X116MM)
|
1 | Ask on WhatsApp |
| 9 |
41171ZV5000
END, NIPPLE
|
1 | Ask on WhatsApp |
| 10 |
41172ZV5000
NIPPLE, SENSOR
|
1 | Ask on WhatsApp |
| 11 |
41173ZY3A00
TUBE, SPEED SENSOR
|
1 | Ask on WhatsApp |
| 12 |
41179ZY3A00
CLAMPER, SENSOR TUBE
|
2 | Ask on WhatsApp |
| 13 |
50100ZY3A01
FRAME COMP., MOUNTING (L)
|
1 | Ask on WhatsApp |
| 13 |
50100ZY3A11
FRAME COMP., MOUNTING (XL)
|
1 | Ask on WhatsApp |
| 14 |
50109ZY3000
HOUSING, UPPER MOUNTING
|
1 | Ask on WhatsApp |
| 15 |
50151ZY3000
MOUNT COMP., UPPER RUBBER
|
2 | Ask on WhatsApp |
| 16 |
50153ZY3000
RUBBER, UPPER MOUNT STOPPER
|
2 | Ask on WhatsApp |
| 17 |
50161ZY3000ZA
HOUSING, LOWER CENTER MOUNTING *NH282MU *
|
1 | Ask on WhatsApp |
| 17 |
50161ZY3610
HOUSING, LOWER CENTER MOUNTING (XL)
|
1 | Ask on WhatsApp |
| 18 |
50166ZY3000
COVER, UPPER MOUNT
|
1 | Ask on WhatsApp |
| 19 |
50168ZY3000
SEAL, UPPER MOUNT COVER
|
1 | Ask on WhatsApp |
| 20 |
50201ZY3C00ZB
CASE, SWIVEL (L) *NH282MU*
|
1 | Ask on WhatsApp |
| 20 |
50201ZY3C10ZB
CASE, SWIVEL (XL) *NH282MU*
|
1 | Ask on WhatsApp |
| 21 |
50209ZY3A00
CLAMP, TUBE
|
2 | Ask on WhatsApp |
| 22 |
50211ZY3000
LINER, SWIVEL CASE
|
2 | Ask on WhatsApp |
| 23 |
50214ZY3000
BUSH, SWIVEL CASE
|
2 | Ask on WhatsApp |
| 24 |
50301ZY3010ZA
BRACKET, R. STERN *NH282MU *
|
1 | Ask on WhatsApp |
| 25 |
50311ZY3010ZA
BRACKET, L. STERN *NH282MU *
|
1 | Ask on WhatsApp |
| 26 |
50331ZV5000
CAP, TILTING BOLT
|
1 | Ask on WhatsApp |
| 27 |
50381ZY3000
SHAFT, TILTING
|
1 | Ask on WhatsApp |
| 28 |
50522ZY3000
BUSH, TILT ARM
|
2 | Ask on WhatsApp |
| 29 |
50527ZY3000
BRACKET, TILTING
|
1 | Ask on WhatsApp |
| 30 |
50529ZY3000
STOPPER, TILT
|
2 | Ask on WhatsApp |
| 31 |
56516ZY3A00
RECEIVER, THRUST
|
2 | Ask on WhatsApp |
| 32 |
56518ZY3A00
BUSH A, THRUST RECEIVE -- 48 --
|
2 | Ask on WhatsApp |
