bf225ak1
Section E-5: OIL PUMP/FLYWHEEL (v2)

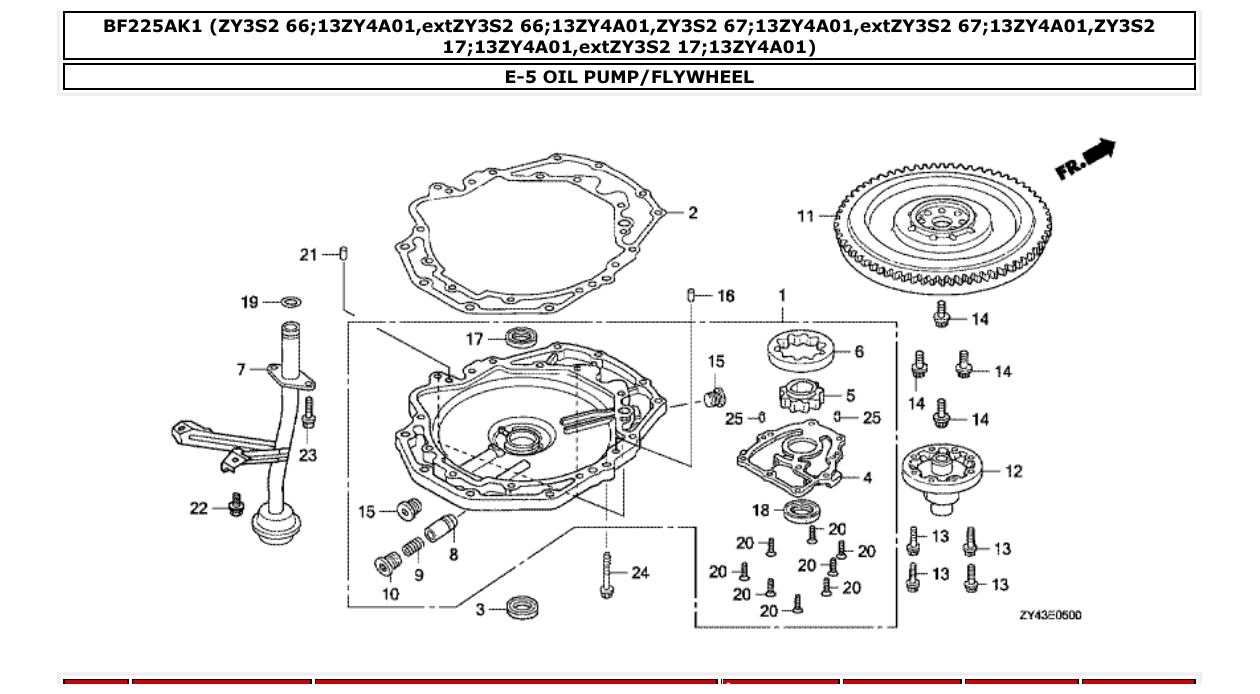

Diagram for section E-5: OIL PUMP/FLYWHEEL.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
15100ZY3000ZA
PUMP ASSY., OIL *NH8 *
|
1 | Ask on WhatsApp |
| 2 |
15112ZY3013
PACKING, OIL PUMP BODY
|
1 | Ask on WhatsApp |
| 3 |
15113ZY3000
RUBBER, OIL PUMP
|
1 | Ask on WhatsApp |
| 4 |
15121ZY3000
COVER, OIL PUMP
|
1 | Ask on WhatsApp |
| 5 |
15131ZY3405
ROTOR, OIL PUMP INNER
|
1 | Ask on WhatsApp |
| 6 |
15132ZY3405
ROTOR, OIL PUMP OUTER
|
1 | Ask on WhatsApp |
| 7 |
15220ZY3020
STRAINER COMP., OIL
|
1 | Ask on WhatsApp |
| 8 |
15231PE0000
VALVE, RELIEF
|
1 | Ask on WhatsApp |
| 9 |
15232PG6000
SPRING, RELIEF VALVE
|
1 | Ask on WhatsApp |
| 10 |
15233PC6000
BOLT, SEALING, 18MM
|
1 | Ask on WhatsApp |
| 11 |
31110ZY3000ZA
FLYWHEEL COMP. *TBLACK *
|
1 | Ask on WhatsApp |
| 12 |
31116ZY3000
BOSS, FLYWHEEL
|
1 | Ask on WhatsApp |
| 13 |
90002ZW5013
BOLT, SPECIAL, 8MM
|
8 | Ask on WhatsApp |
| 14 |
90011PH3000
BOLT, FLANGE, 12MM
|
8 | Ask on WhatsApp |
| 15 |
90081ZV5010
BOLT, SEALING, 22MM
|
2 | Ask on WhatsApp |
| 16 |
90701PW5000
DOWEL PIN, 14X15
|
1 | Ask on WhatsApp |
| 17 |
91201ZW5003
OIL SEAL, 46X60X9
|
1 | Ask on WhatsApp |
| 18 |
91212P01003
OIL SEAL, 31X46X7 (NOK)
|
1 | Ask on WhatsApp |
| 19 |
91324PC6000
O-RING, 20.6X2.6
|
1 | Ask on WhatsApp |
| 20 |
93600060160A
SCREW, FLAT, 6X16
|
8 | Ask on WhatsApp |
| 21 |
9430210160
PIN B, DOWEL, 10X16
|
1 | Ask on WhatsApp |
| 22 |
957010601409
BOLT, FLANGE, 6X14
|
2 | Ask on WhatsApp |
| 23 |
957010601809
BOLT, FLANGE, 6X18
|
2 | Ask on WhatsApp |
| 24 |
957010803009
BOLT, FLANGE, 8X30
|
4 | Ask on WhatsApp |
| 25 |
9622050080
ROLLER, 5X8 -- 6 --
|
2 | Ask on WhatsApp |
