bf225ak1
Section E-13-10: TIMING BELT COVER (v2)

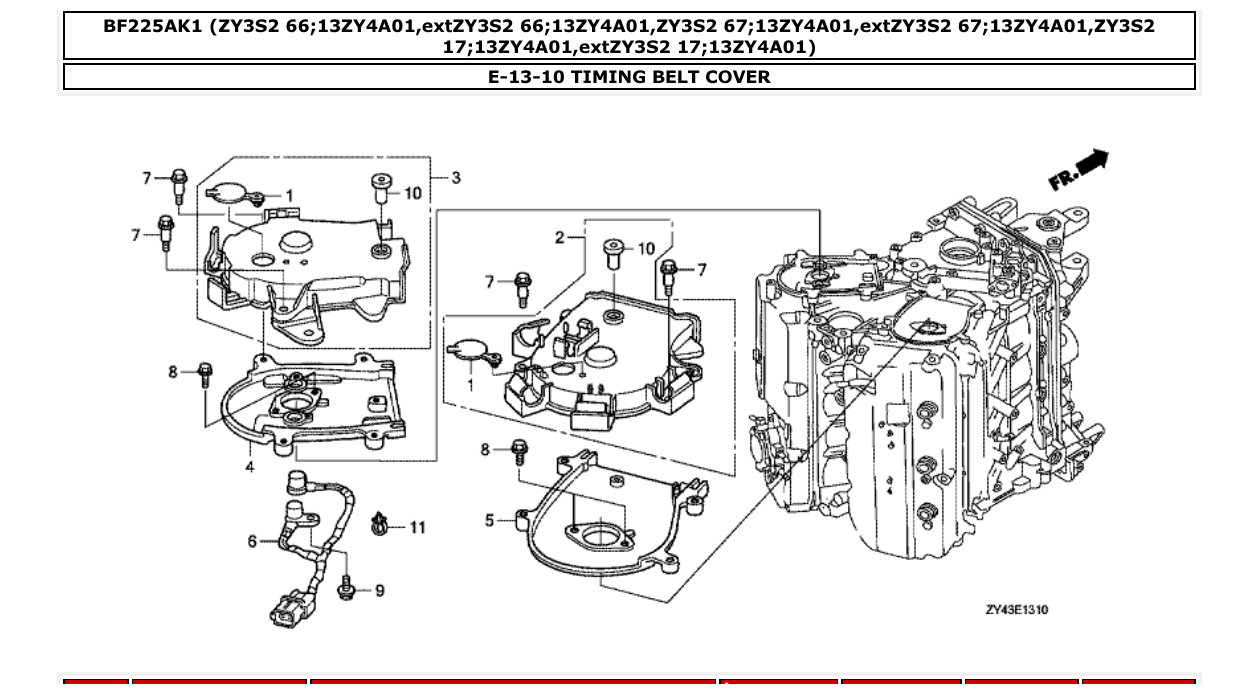

Diagram for section E-13-10: TIMING BELT COVER.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
11812P8AA00
GROMMET, TIMING BELT COVER
|
2 | Ask on WhatsApp |
| 2 |
11820ZY3000
COVER ASSY., R. TIMING BELT
|
1 | Ask on WhatsApp |
| 3 |
11840ZY3010
COVER ASSY., L. TIMING BELT
|
1 | Ask on WhatsApp |
| 4 |
11861ZY3000
PLATE, L. TIMING BELT COVER
|
1 | Ask on WhatsApp |
| 5 |
11871ZY3000
PLATE, R. TIMING BELT COVER
|
1 | Ask on WhatsApp |
| 6 |
35695ZY3003
SENSOR COMP., TDC1-TDC2
|
1 | Ask on WhatsApp |
| 7 |
90007ZY3000
BOLT, TIMING BELT COVER
|
4 | Ask on WhatsApp |
| 8 |
90017P8AA01
BOLT, SPECIAL, 8X29
|
4 | Ask on WhatsApp |
| 9 |
90018ZY3000
BOLT, FLANGE, 5X14
|
2 | Ask on WhatsApp |
| 10 |
91508ZY3000
COLLAR, TIMING BELT COVER
|
2 | Ask on WhatsApp |
| 11 |
91541S0A003
CLIP, HARNESS BAND (BLACK) (145MM) -- 13 --
|
1 | Ask on WhatsApp |
