bf225ak1
Section F-6: FUEL TUBE (v2)

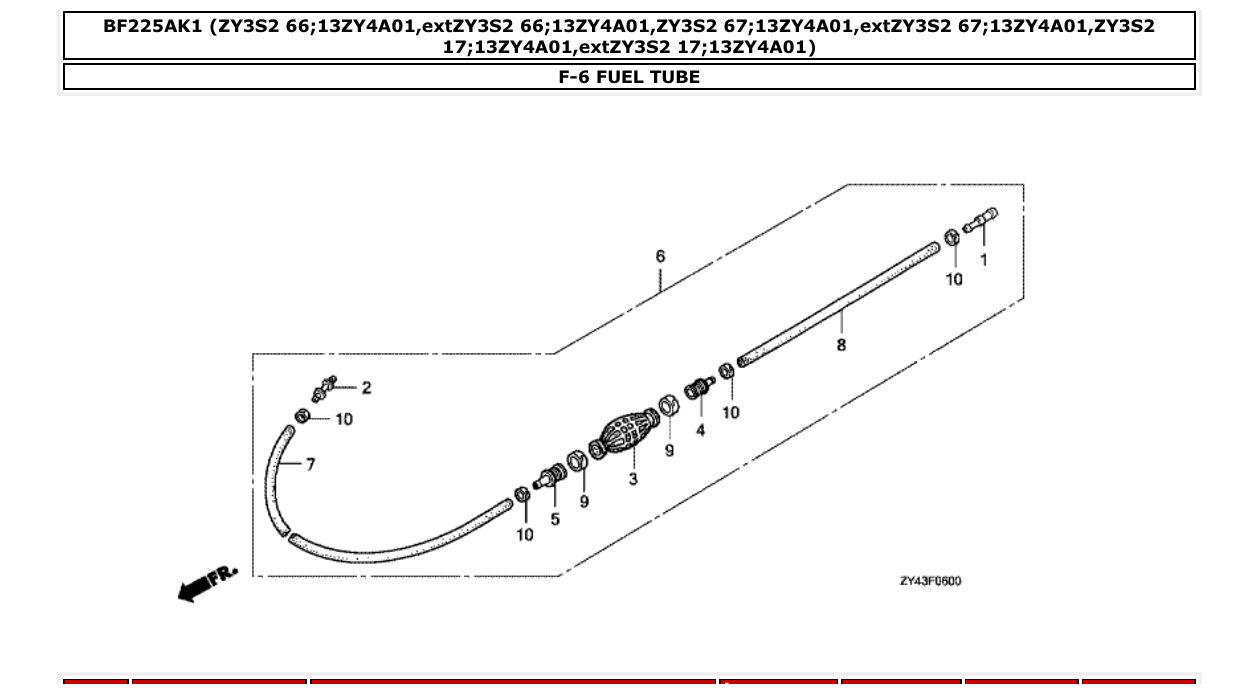

Diagram for section F-6: FUEL TUBE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
16966MR1000
JOINT, FUEL TUBE
|
1 | Ask on WhatsApp |
| 2 |
16966MR5000
JOINT, FUEL TUBE
|
1 | Ask on WhatsApp |
| 3 |
17661921010
BULB, PRIMER
|
1 | Ask on WhatsApp |
| 4 |
17665ZV5000
VALVE COMP., IN.
|
1 | Ask on WhatsApp |
| 5 |
17680ZV4000
VALVE COMP., OUTLET
|
1 | Ask on WhatsApp |
| 6 |
17700ZY3010
TUBE ASSY., FUEL (JOINT TYPE)
|
1 | Ask on WhatsApp |
| 7 |
17701ZV5000
TUBE, FUEL LONG (7.3X2000)
|
1 | Ask on WhatsApp |
| 8 |
17702ZV4000
TUBE, FUEL SHORT (6.3X500)
|
1 | Ask on WhatsApp |
| 9 |
17703921010
BAND, TUBE CLIP, 20MM
|
2 | Ask on WhatsApp |
| 10 |
17704ZV4010
BAND, TUBE CLIP, 12.5MM -- 36 --
|
4 | Ask on WhatsApp |
