bf225ak1
Section F-8-10: FR. COVER BRACKET/FR. LOCK SHAFT (v2)

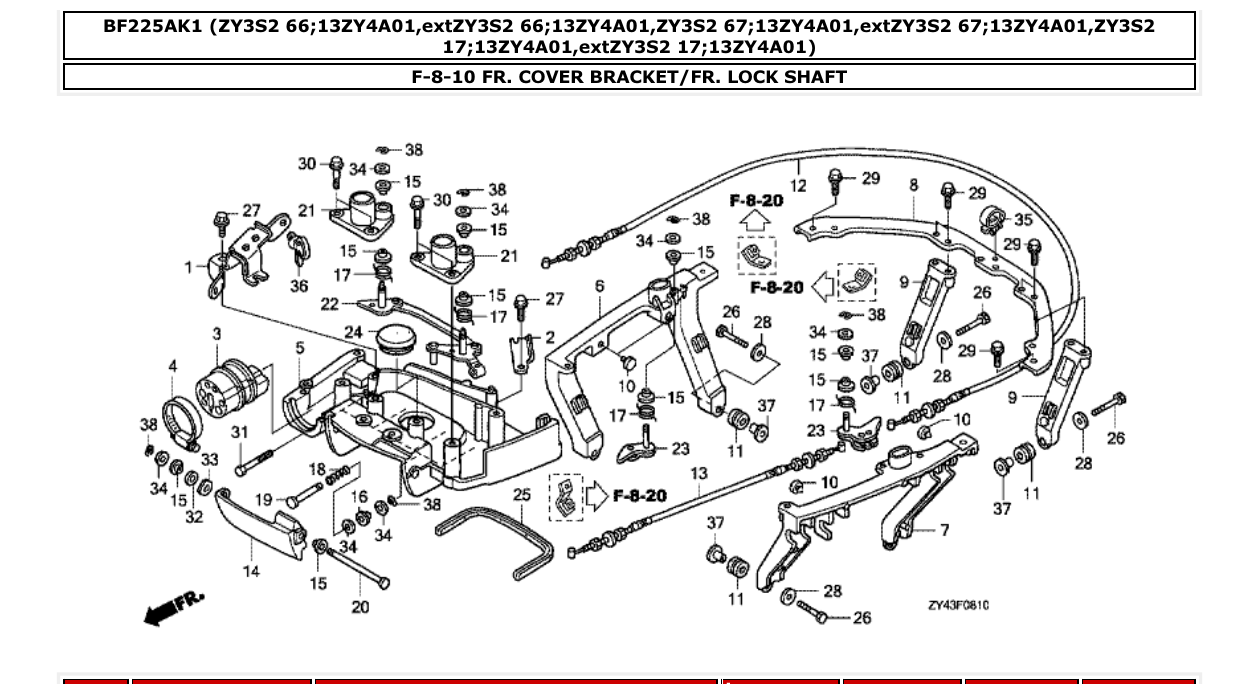

Diagram for section F-8-10: FR. COVER BRACKET/FR. LOCK SHAFT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
32419ZY3A00
BRACKET, CABLE
|
1 | Ask on WhatsApp |
| 2 |
32421ZY3000
PLATE, STARTER CABLE
|
1 | Ask on WhatsApp |
| 3 |
40105ZY3C00
GROMMET A, UNDER CASE
|
1 | Ask on WhatsApp |
| 4 |
40119ZY3003
BAND, UNDER CASE GROMMET
|
1 | Ask on WhatsApp |
| 5 |
40154ZY3000ZA
BRACKET, FR. COVER *NH8 *
|
1 | Ask on WhatsApp |
| 6 |
40155ZY3000
BRACKET, R. SIDE COVER
|
1 | Ask on WhatsApp |
| 7 |
40157ZY3000
BRACKET, L. SIDE COVER
|
1 | Ask on WhatsApp |
| 8 |
40158ZY3000
BRACKET A, RR. COVER
|
1 | Ask on WhatsApp |
| 9 |
40159ZY3000
BRACKET B, RR. COVER
|
2 | Ask on WhatsApp |
| 10 |
47117196000
RUBBER, STOPPER
|
4 | Ask on WhatsApp |
| 11 |
51640121730
RUBBER, FR. CARRIER CUSHION
|
6 | Ask on WhatsApp |
| 12 |
60180ZY3C01
CABLE COMP. A, COVER LOCK
|
1 | Ask on WhatsApp |
| 13 |
60185ZY3C01
CABLE COMP. B, COVER LOCK
|
1 | Ask on WhatsApp |
| 14 |
63201ZY3000ZA
LEVER, COVER LOCK *NH282MU *
|
1 | Ask on WhatsApp |
| 15 |
63205ZY3000
BUSH A, COVER LOCK
|
10 | Ask on WhatsApp |
| 16 |
63208ZY3000
BUSH B, COVER LOCK
|
1 | Ask on WhatsApp |
| 17 |
63212ZY3000
SPRING, COVER LOCK HOOK
|
4 | Ask on WhatsApp |
| 18 |
63223ZY3000
SPRING, LOCK LEVER RETURN
|
1 | Ask on WhatsApp |
| 19 |
63224ZY3000
SHAFT, COVER OPEN
|
1 | Ask on WhatsApp |
| 20 |
63225ZY3000
SHAFT, FR. LOCK
|
1 | Ask on WhatsApp |
| 21 |
63226ZY3000
HOLDER, STRIKER
|
2 | Ask on WhatsApp |
| 22 |
63230ZY3C00
LOCK ASSY., FR.
|
1 | Ask on WhatsApp |
| 23 |
63260ZY3C00
LOCK COMP., SIDE
|
2 | Ask on WhatsApp |
| 24 |
63515ZC0700
CAP, L. SIDE COVER
|
1 | Ask on WhatsApp |
| 25 |
63729ZY3003
SEAL D, UNDER COVER
|
1 | Ask on WhatsApp |
| 26 |
90009ZV5000
BOLT, HEX., 8X35
|
6 | Ask on WhatsApp |
| 27 |
90021ZY3000
BOLT, FLANGE, 6X14
|
2 | Ask on WhatsApp |
| 28 |
90101ML0720
WASHER, PLAIN, 8MM
|
6 | Ask on WhatsApp |
| 29 |
90102ZW9000
BOLT, FLANGE, 6X12
|
6 | Ask on WhatsApp |
| 30 |
90105ZW9000
BOLT, FLANGE, 6X20
|
4 | Ask on WhatsApp |
| 31 |
90106ZY3A00
BOLT, FLANGE, 8X22
|
4 | Ask on WhatsApp |
| 32 |
90502MM8610
WASHER, PLAIN, 10MM
|
1 | Ask on WhatsApp |
| 33 |
90506ZW9000
WASHER, WAVE, 10MM
|
1 | Ask on WhatsApp |
| 34 |
90518921000
WASHER, PLAIN, 8MM
|
7 | Ask on WhatsApp |
| 35 |
90684ZA0601
CLIP, HARNESS
|
1 | Ask on WhatsApp |
| 36 |
91541S0A003
CLIP, HARNESS BAND (BLACK) (145MM) -- 43 --
|
1 | Ask on WhatsApp |
